Zline RT36 - Installation; Installation Adjacent to Kitchen Cabinets

6
Installation Requirements

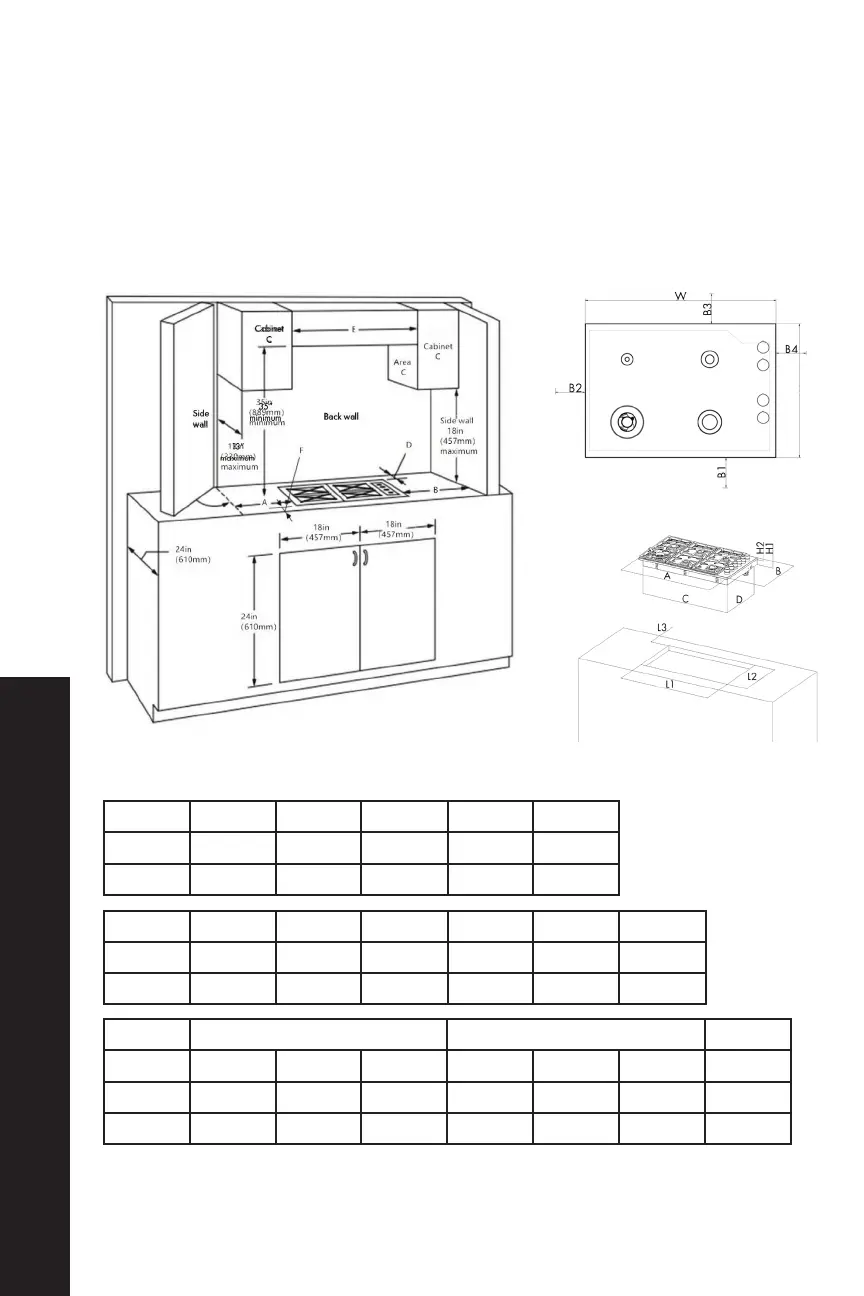

INSTALLATION ADJACENT TO KITCHEN CABINETS
For the best look, the worktop should be level with the cabinet countertop.
Product size A B C D H1 H2
30” 30” 21 ” 28 3/8” 18 7/8” 2 13/16” 5/8”
36” 36” 21 ” 34 3/8” 18 7/8” 2 13/16” 5/8”
Clearances A B D E F
30” 6” min 6” min 3 1/2” min 30” 3 1/2” min
36” 6 min” 6” min 3 1/2” min 36” 3 1/2” min
L1 L2 L3
Cut out size Suggestion Min Max Suggestion Min Max Min
30” 29” 28 9/16” 29 3/8” 19 1/2” 19 1/8” 20 3/8” 2 1/2”
36” 35” 34 9/16” 35 3/8” 19 1/2” 19 1/8” 20 3/8” 2 1/2”
INSTALLATION
