10
Gas Connection
MANUAL SHUT-OFF VALVE
This valve is not shipped with the appliance and must be provided by the
installer.
The manual shut-off valve must be installed in the gas service line between the
gas hook-up on the wall and the appliance inlet, in position where it can be
reached quickly in the event of an emergency.
In Massachusetts: A T handle type manual gas shut-off valve must be installed in
the gas supply line to this appliance.
FLEXIBLE CONNECTIONS
In case of installation with flexible couplings and/or quick-disconnect
fittings, the installer must use a heavy duty, AGA design-certified commercial
flexible connector of at least ½˝ (1.3cm) IF NPT (with a suitable strain relief in
compliance with ANSI Z21.41 and Z21.69 standards.
In Massachusetts: The unit must be installed with a 36˝ (3 foot long) flexible gas
connector.
In Canada: Use CAN 1-6. 10-88 metal connectors for gas appliances and
CAN 1-6.9 M79 quick disconnect device for use with gas fuel.
PRESSURE TEST POINT STOPPER VALVE

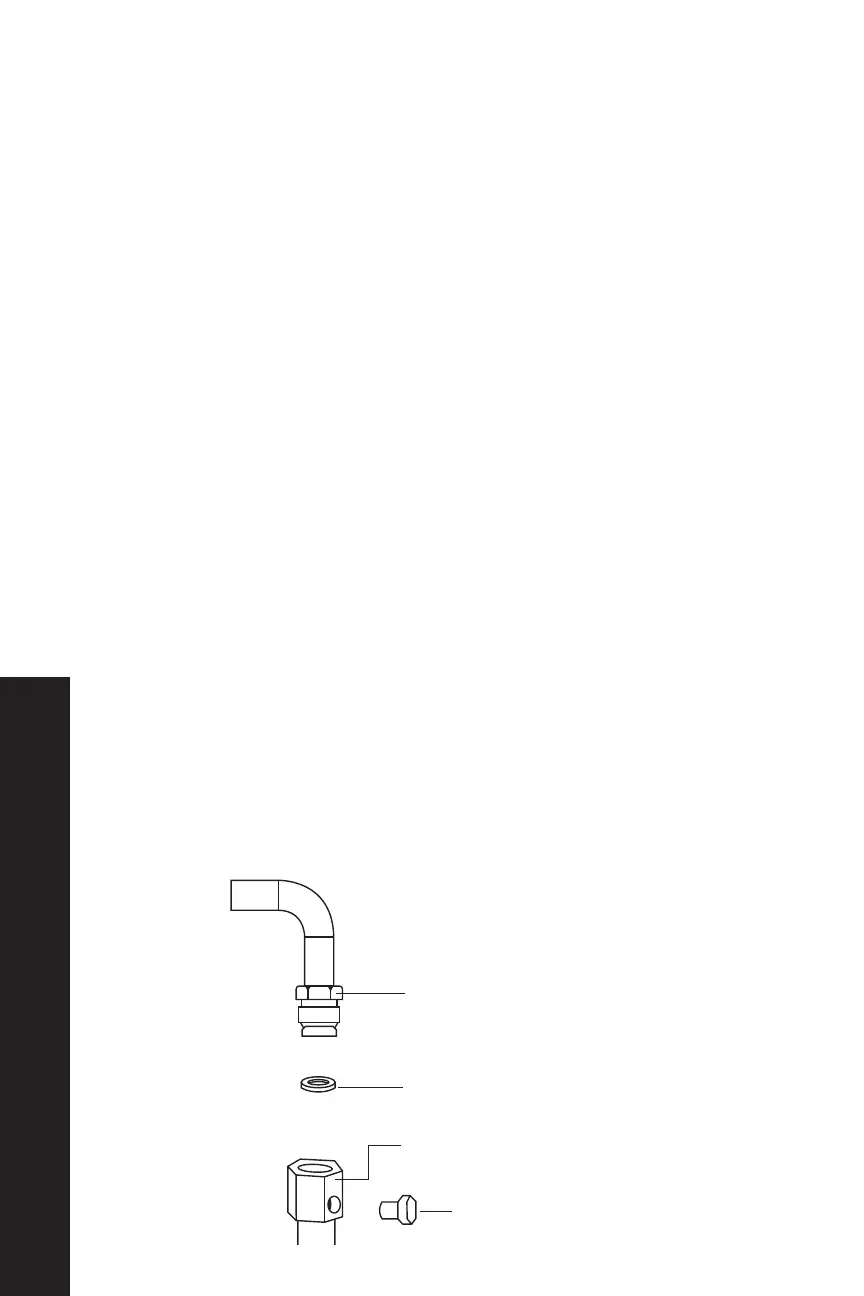

To avoid gas leaks, the pressure test-point stopper valve and gasket supplied with the
range must be installed on the gas fitting at the back of the range according to the
diagram below.
INSTALLATION
Gas Connection
Gas pipe
Gasket
Gas connection adaptor 1/2” NPT with
pressure test point 1/8” NPT (to be fixed
toward external side of the appliance)
Pressure test-point stopper
