Zodiac CLASSIC MARK 2 - Inflation System; Foot Pump and Valves

5 /10
E
N
G
L
I
S
H

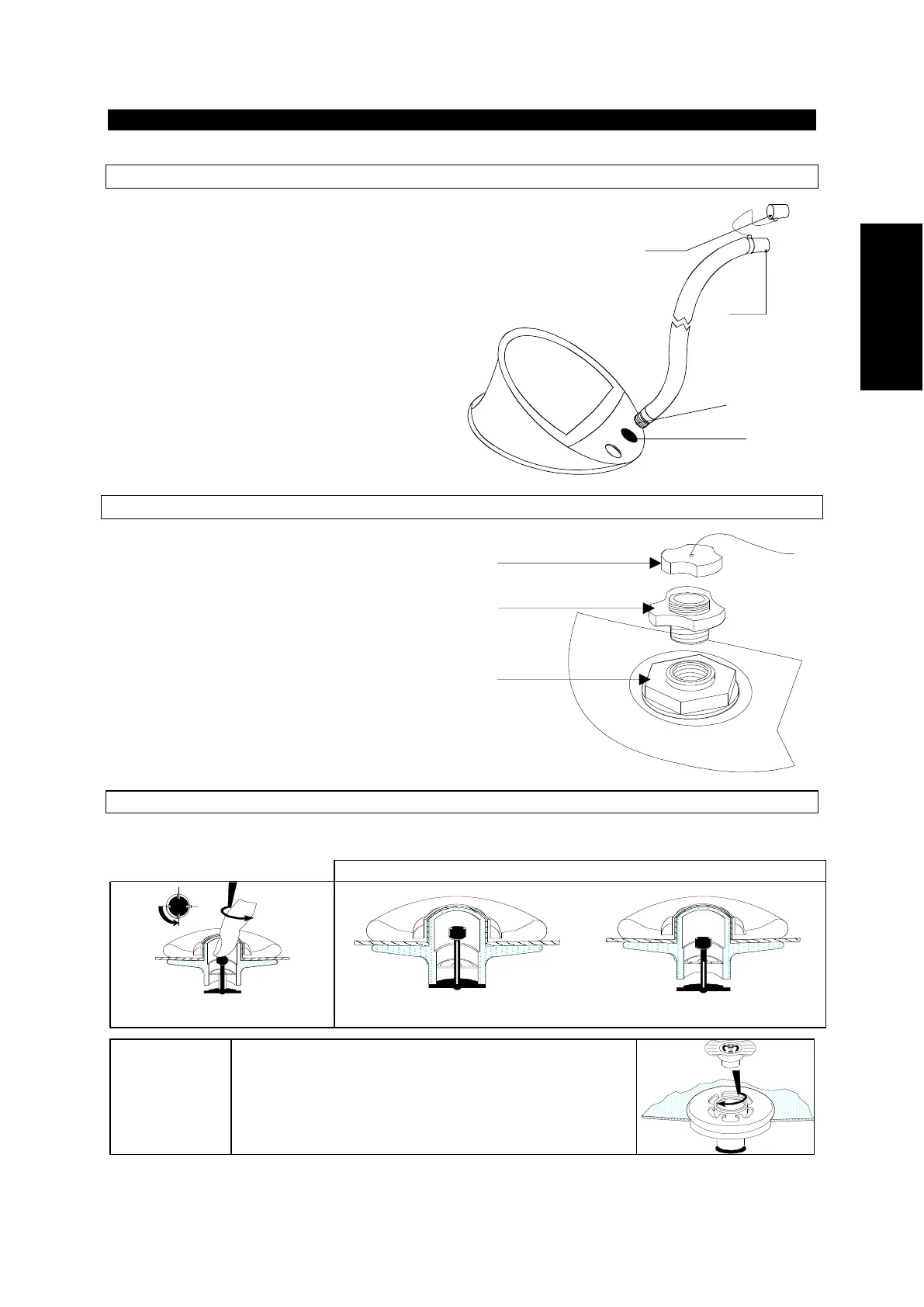

INFLATION SYSTEM
THE FOOT PUMP
a. connecting tip
b. hose end piece
c. hose base
d. outlet for inflation
a
b
c
d
THE STANDARD VALVES
(1) cap (2) valve insert (3) base
To activate the standard valves into INFLATION
position:
• Free the valve insert from its protection.
• Unscrew the valve cap.
• Screw the valve insert onto its base (screw it tight
but without exaggeration, not to deteriorate the
screw thread) and check that the valve cap
remains accessible.
To deflate:
Unscrew the valve insert from its base
1
2
3
SEMI BUILT-IN VALVES
To activate the semi built-in valves:
in inflating position
in deflating position
Push and turn the knob one-
quarter of a turn
The membrane is closed, the knob
is up
The membrane is open, the knob is
down
NOTE:
NEVER TIGHTEN TOO MUCH: YOU COULD
UNSCREW THE ENTIRE INTERNAL INFLATION
SYSTEM OF THE VALVE
