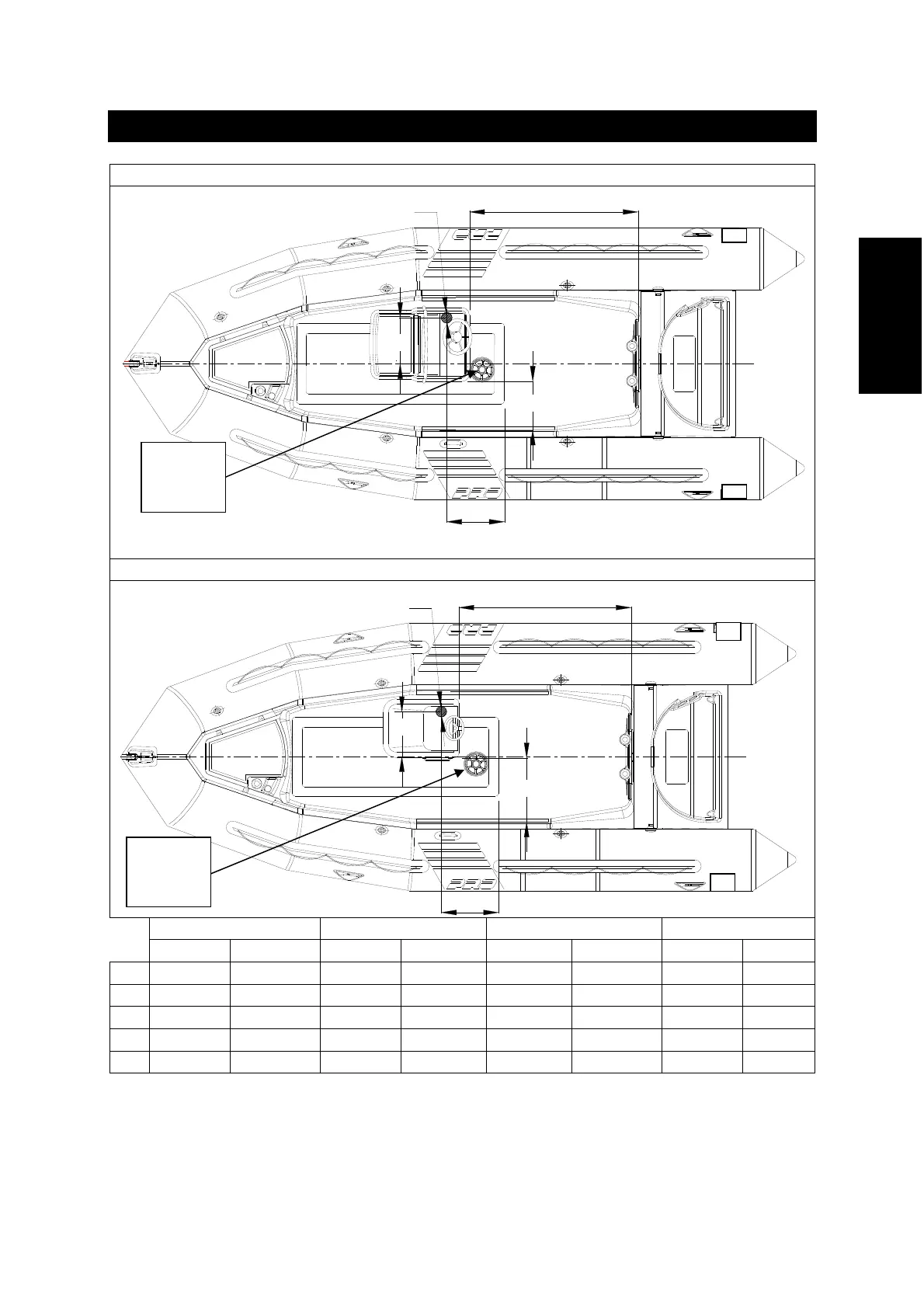

POSITION OF ACCESSORIES
PRO MAN CONSOLE
AØ
B
C
D
PRO TYPE CONSOLE
A
Ø
D
B
C
JOCKEY ACCES PRO MAN PRO
mm inch mm inch mm inch mm inch
A 685 27 1548 61 1548 61 1548 61
B 368 14.5 635 25 445 17.52 602 23.7
C 1185 46.65 533 20.98 533 20.98 533 20.98
D - - 420 16.54 420 16.54 420 16.54
Ø 100 3.94 100 3.94 100 3.94 100 3.94
Tank
access
hatch
Tank
access
hatch
