Zodiac Wahoo - Wahoo Parts Diagram

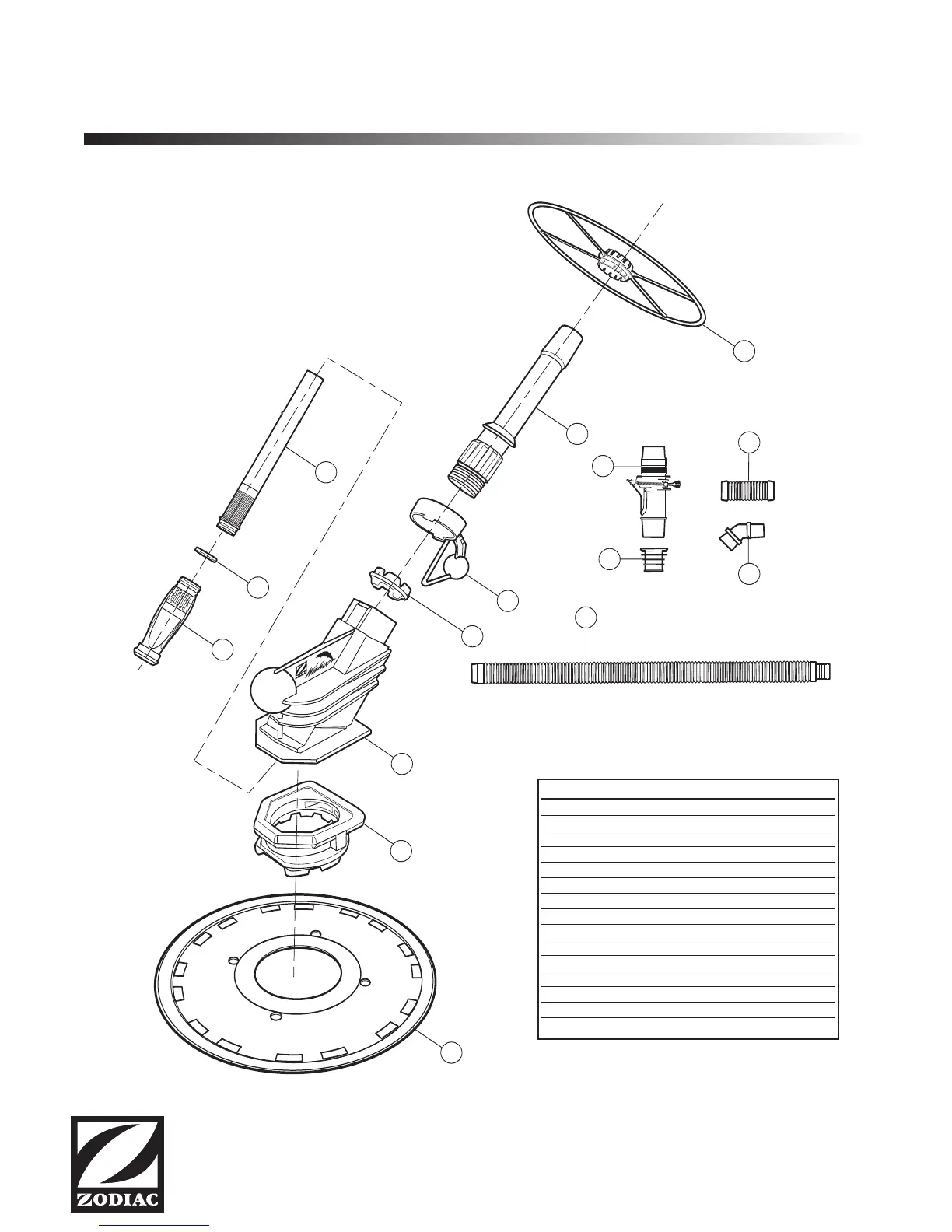

Wahoo Parts Diagram
13
1
14
2
12
3
11
4
15
5
8
6
10
7
9
TOP
TOP
No. Part Description Qty
1. W70483 Wheel Deflector 12" 1
2. W70489 Outer Extension Pipe w/Handnut 1
3.
W70486
W
ahoo Weighted Spur 1
4. W74000 Compression Ring 1
5. W70488 Wahoo Body 1
6. W56525 Threaded Inner Extension Pipe 1
7. W81600 Diaphragm Retaining Ring 1
8. W81700 Aboveground Diaphragm AIB 1
9. W70487 Footpad 1
10. W70485 Slotted Disc 1
11. W60050 Flowkeeper Valve 1
12,
W70264
Valve Cuff 1
13. W33205 4 1/2" Connector 1
14.
W70244
45
°
Elbo
w
1
15.
W38205
Hose
, 1 Meter
,
White 10
©
2008 Zodiac Pool Care, Inc. All rights reserved. TL-2200 10/08
