SUBFLOOR
3/4" THICK
MINIMUM
2X6
FLOOR
JOISTS
VENT
VENT
NOTE: 1) ALL VENTS AND DISCHARGE PIPING MUST BE INSTALLED ACCORDING TO LOCAL CODES.
2) WALL BOARD REMOVED FOR CLARITY TO SHOW PIPING.
CAUTION: DO NOT DRIVE ANY NAILS IN AREA OF TANK.
8 FOOT (2.4 m) CEILING
7 FOOT (2.1 m) CEILING
3" (8 cm) MIN.
DISCHARGE
VALVE
SHUT-OFF
VENT
DEVICE
BACK FLOW
UNION BY
GFCI
OTHERS
BY OTHERS
SUBFLOOR
3/4" THICK
MINIMUM
2X4
STUDS
2X6
FLOOR
JOISTS
VENT
VENT
GFCI
4" (10 cm)
MIN.
NOTE: 1) ALL VENTS AND DISCHARGE PIPING MUST BE INSTALLED ACCORDING TO LOCAL CODES.
2) WALL BOARD REMOVED FOR CLARITY TO SHOW PIPING.
CAUTION: DO NOT DRIVE ANY NAILS IN AREA OF TANK.
8 FOOT (2.4 m) CEILING
7 FOOT (2.1 m) CEILING
BY
UNION
OTHERS
VENT
SHUT-OFF VALVE
DISCHARGE
GFCI
BACK FLOW DEVICE
BY OTHERS
SK1617

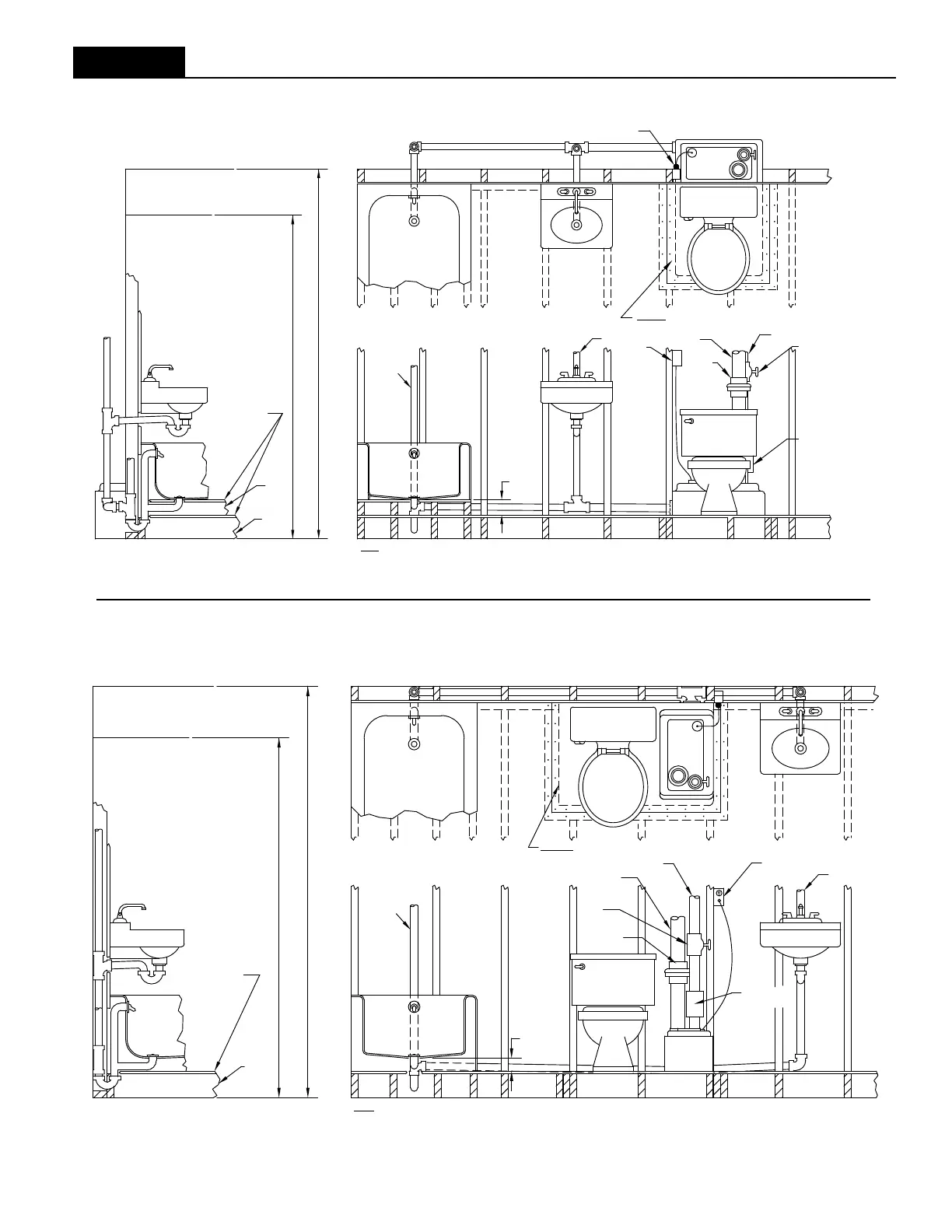

ALTERNATE INSTALLATION WITH RAISED TUB, LAVATORY, VENT & DISCHARGE
ALTERNATE INSTALLATION WITH SPECIAL FLOOR MOUNTED
RAISED BOTTOM TUB, LAVATORY, VENT & DISCHARGE
SK1618
Figure 9.4
Figure 9.5
STEP 9 INSTALLATION OF ADDITIONAL FIXTURES, continued
