Zojirushi EC-YTC100 User Manual

CLEANING AND MAINTENANCE (contj
Carafe Lid Set
© Remove the Carafe Lid Packing.
(D Wash the Carafe Lid and Carafe Lid Packing with a sponge or soft
material with diluted mild kitchen detergent.
© Rinse with water.
• Clean the part where coffee passes through within the Carafe Lid
with water after each use to prevent clogging.
Lid Packing
To clean the part where coffee passes through within the Carafe Lid, press and hold the Carafe Lid Valve or Slide Lever
and rinse with running water as shown in the illustration below.
Press and hold down the Carafe Lid Valve.
Press and hold the Slide Lever.
Carafe Lid Valve
Slide Lever
@ Shake the Carafe Lid several times while pressing and holding the Carafe Lid Valve or Slide Lever.
(Otherwise, the remaining water may drip.)
© Wipe dry with a dry cloth.
© Reattach the Carafe Lid Packing in its
original position.
If the C arafe Lid Packing is dam a ged, d is colo re d o r turns
w hite , rep la ce w ith a new one. {-*• P.20)
Remove and wash the Carafe Lid Valve, Spring, and Brew Valve Gasket if the Carafe Lid Valve does not
depress smoothly, parts where coffee flows through within the Carafe Lid is clogged with coffee ground,
or about every 1 month of usage.
• Wash with a small brush sold in stores for parts that are difficult to wash.
• Reattach removed parts correctly, as shown below.
(How to Remove the Carafe Lid Valve}
Press and hold d ow n the Carafe Lid Valve, and remove
the Brew Valve Gasket.
(The Carafe Lid Valve, Spring and Brew Valve Gasket can
now be removed.)
Carafe Lid Valve
©
------ Brew Valve Gasket
( How to Attach the Carafe Lid Valve )
© Insert the Carafe Lid Valve into
the spring and then insert into
the opening o f the Carafe Lid.
© Attach the Brew Valve Gasket
to the Carafe Lid Valve.
Carafe Lid Valve -
Opening
d ®
Spring
Brew Valve
Gasket
Carafe Lid
1 Atta ch the Brew Valve Gasket corre ctly as illustrated below.
o
X
Carafe Lid Valve
Brew Valve — 'S'Ss'—
Gasket nP jj
Carafe Lid Valve
Brew Valve —
Gasket
1 Attach the Brew Valve Gasket so th at the tip
o f the Carafe Lid Valve protrudes properly.
o
X
The tip does
not protrude r K A
properly.
The tip
protrudes
properly.
Brew Valve Gasket
17

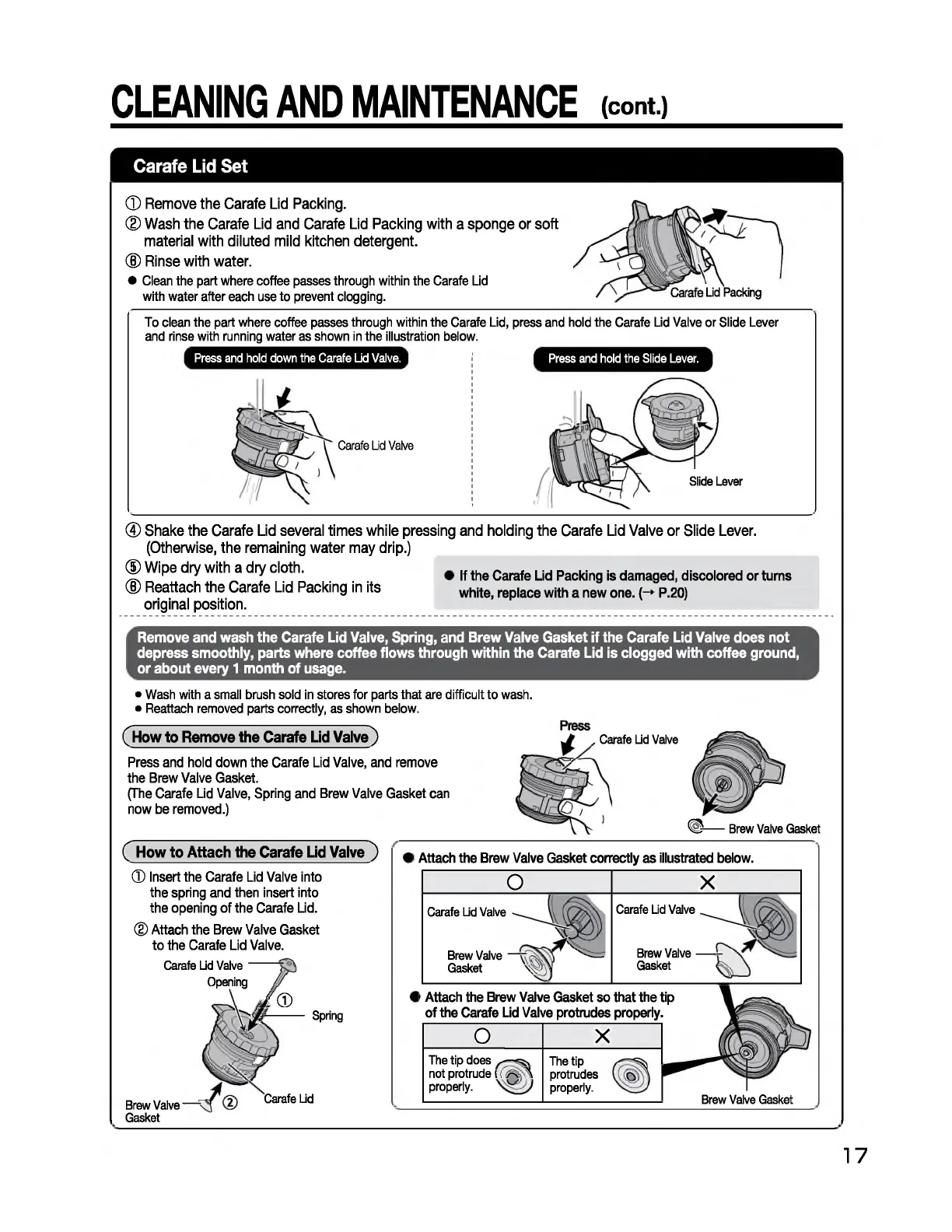

CLEANING AND MAINTENANCE
Carafe Lid Set
CD Remove the Carafe Lid Packing.
® Wash the Carafe Lid and Carafe Lid Packing with a sponge or soft
material with diluted mild kitchen detergent.
@ Rinse with water.
• Clean the part where coffee passes through within the Carafe Lid
with water after each use to prevent clogging.
(cont.)
To clean the part where coffee passes through within the Carafe Lid, press and hold the Carafe Lid Valve or Slide Lever
and rinse with running water as shown in the illustration below.
Press and hold down the Carafe Lid Valve.
Press and hold the Slide Lever.
® Shake the Carafe Lid several times while pressing and holding the Carafe Lid Valve or Slide Lever.
(Otherwise, the remaining water may drip.)
@ Wipe dry with a dry cloth.
@ Reattach the Carafe Lid Packing in its
original position.
• If the Carafe Lid Packing is damaged, discolored or turns
white, replace with a new
one. (- P.20)
Remove and wash the Carafe Lid Valve, Spring, and Brew Valve Gasket if the Carafe Lid Valve does not
depress smoothly, parts where coffee flows through within the Carafe Lid is clogged with coffee ground,
or about every 1 month of usage.
• Wash with a small brush sold in stores for parts that are difficult to wash.
• Reattach removed parts correctly, as shown below.
( How to Remove the Carafe Lid Valve)
Press and hold down the Carafe Lid Valve, and remove
the Brew Valve Gasket.
(fhe Carafe Lid Valve, Spring and Brew Valve Gasket can
now be removed.)
Press
Carafe Lid Valve
@- Brew Valve Gasket
( How to Attach the Carafe Lid Valve )
CD Insert the Carafe Lid Valve into
the spring
and then insert into
the opening of the
Carafe Lid.
• Attach the Brew
Valve Gasket correctly as illustrated below.
® Attach the Brew Valve Gasket
to the Carafe Lid Valve.
Carafe Lid Valve
0
Carafe Lid Valve l Carafe Lid Valve
Brew Valve ~ ~ : Brew Val
Gasket '- ~ 'J Gasket
"
• Attach the Brew Valve Gasket so that the tip
of the Carafe Lid Valve protrudes properly.
0
X
The tip does
not protrude
properly.
~ The tip
protrudes
properly.
@
I 1 '5f \ ~
~
X
Brew Valve Gasket
17
