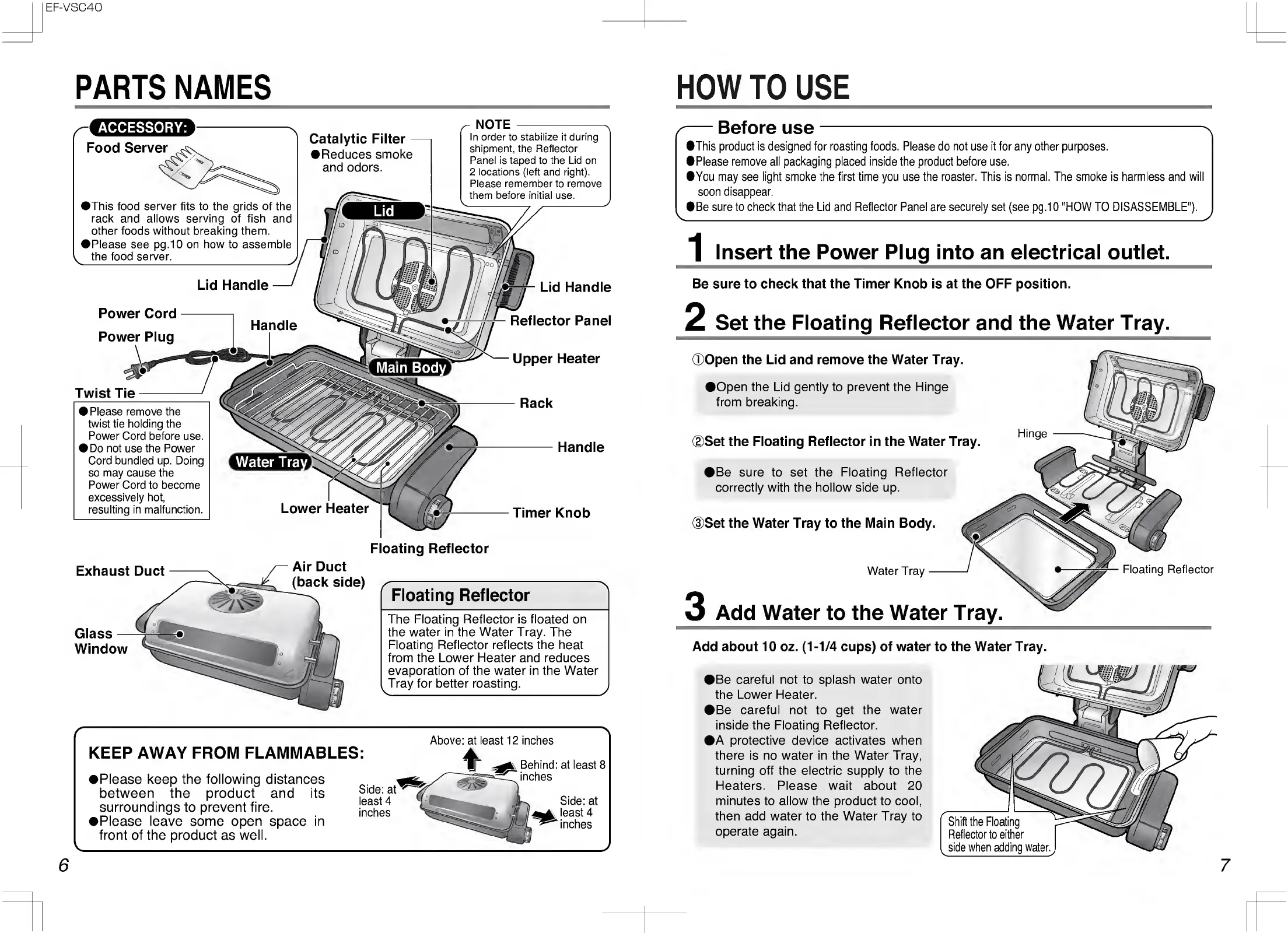

PARTS NAMES
- C33^33P
Food Server
Catalytic Filter -
• Reduces smoke
and odors.
► This food server fits to the grids of the
rack and allows serving of fish and
other foods without breaking them.
► Please see pg.10 on how to assemble
the food server.
NOTE-
In order to stabilize it during
shipment, the Reflector
Panel is taped to the Lid on
2 locations (left and right).
Please remember to remove
them before initial use.
Lid Handle
Power Cord
Power Plug
T wist Tie
► Please remove the
twist tie holding the
Power Cord before use.
► Do not use the Power
Cord bundled up. Doing
so may cause the
Power Cord to become
excessively hot,
resulting in malfunction.
Exhaust Duct
Timer Knob
Floating Reflector
Air Duct
(back side)
Glass
Window
Floating Reflector
The Floating Reflector is floated on
the water in the Water Tray. The
Floating Reflector reflects the heat
from the Lower Heater and reduces
evaporation of the water in the Water
Tray for better roasting.
KEEP AWAY FROM FLAMMABLES:
•Please keep the following distances
between the product and its
surroundings to prevent fire.
•Please leave some open space in
front of the product as well.
Above: at least 12 inches
Side: at
least 4
inches
Behind: at least 8
inches
Side: at
least 4
inches
6
HOW TO USE
-Before use-
•This product is designed for roasting foods. Please do not use it for any other purposes.
• Please remove all packaging placed inside the product before use.
•You may see light smoke the first time you use the roaster. This is normal. The smoke is harmless and will
soon disappear.
•Be sure to check that the Lid and Reflector Panel are securely set (see pg.10 "HOW TO DISASSEMBLE").
--
1 Insert the Power Plug into an electrical outlet.
Be sure to check that the Timer Knob is at the OFF position.
2
Set the Floating Reflector and the Water Tray.
©Open the Lid and remove the Water Tray.
•Open the Lid gently to prevent the Hinge
from breaking.
©Set the Floating Reflector in the Water Tray
•Be sure to set the Floating Reflector
correctly with the hollow side up.
©Set the Water Tray to the Main Body.
Water Tray
3
Add Water to the Water Tray.
Floating Reflector
Add about 10 oz. (1-1/4 cups) of water to the Water Tray.
► B e careful not to splash water onto
the Lower Heater.
► B e careful not to get the water
inside the Floating Reflector.
► A protective device activates when
there is no water in the Water Tray,
turning off the electric supply to the
Heaters. Please wait about 20
minutes to allow the product to cool,
then add water to the Water Tray to
operate again.
7

Zojirushi EF-VSC40 Specifications

Power

capacity	120V AC 1300W 60Hz

Cabling

length of power cord	4.6 feet (1.4 m)

Weight and Dimensions

weight	10.4 lbs (4.7 kg)
external dimensions	19-y8(W) x 11-5/8(D) x 7-y2(H) inches
rack dimensions	13-%(W) x 8-54(D) inches
