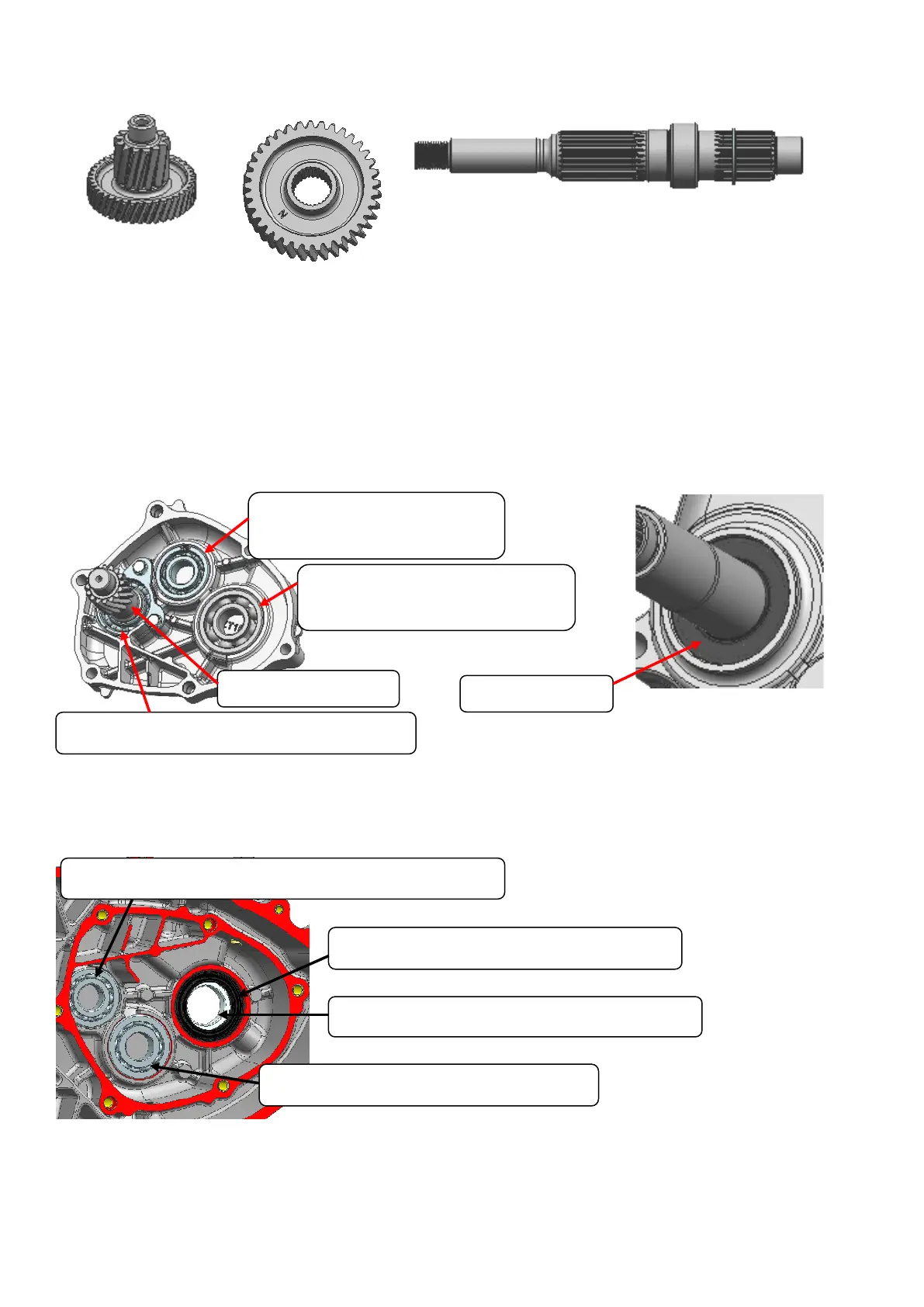

3. As shown in the figure, remove the output gear, duplex gear assembly, output shaft and output shaft retaining ring in
s
equence.
Five, gearbox gear, bearing inspection
Gearbox cover bearing and oil seal inspection
1. As shown in the figure, turn the inner ring of the bearing by hand, the bearing will rotate smoothly and silently, and
t
urn the drive shaft by hand, the bearing of the drive shaft will rotate smoothly and silently. If the bearing rotation is stuck
,
pl
ease replace the bearing. Check the drive shaft oil seal, there is no scratch or abnormal wear on the oil seal, if it is
scratched or abnormal wear, please replace it.
I
nspection of left crankcase bearing and oil seal
1. As shown in the figure, turn the inner ring of the bearing by hand, and the bearing will rotate smoothly and silently. If
the bearing rotates stuck, please replace the bearing. Check the output shaft oil seal, there is no scratch or abnormal
wear on the oil seal, if it is scratched or abnormal wear, please replace it.
FB38×56×7 hydrogenated nitrile rubber oil seal
GB276-6006-2RS/P5C3 deep groove ball bearings
GB276－6205/C3H-F deep groove ball bearings
GB276－63/22P5C3 deep groove
ball bearings (nitrogenation)
GB276-6204/P5C3 deep groove
ball bearings (nitrogenation)
GB276－62/22/P5 deep groove ball bearings
GB276-6204/P5C3 deep groove ball bearings (nitrogenation)
