- 9 -

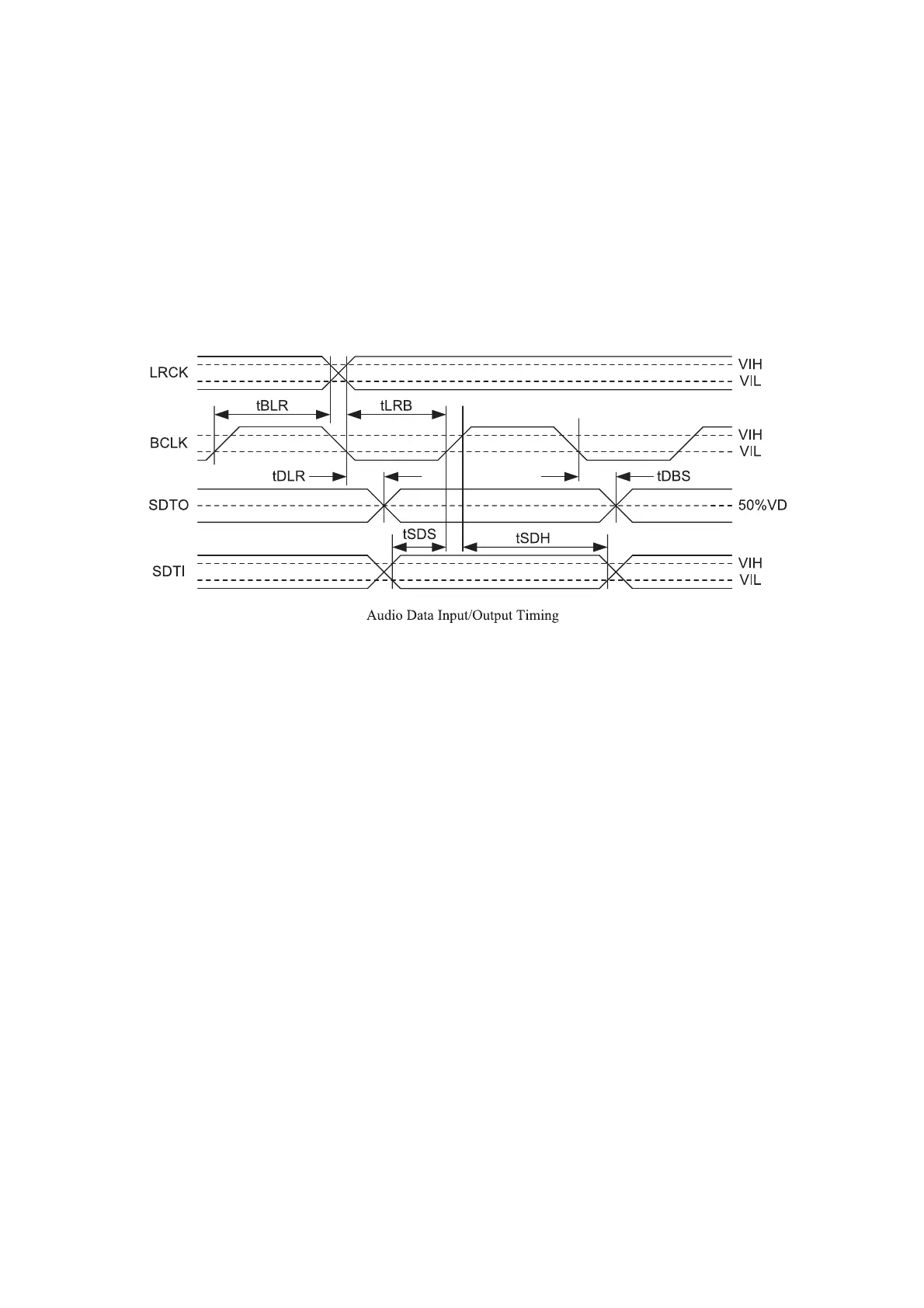

4) AD/DA converter:
AK4552VT-E2 Sampling frequency 96 kHz
System Clock (256fs) 24.576 MHz
A/D 2-channel
64-times oversampling
24-bit resolution, MSB justified
D/A 2-channel
128-times oversampling
24-bit resolution, LSB justified
3. CPU block
1) CPU
uPD703015BYGC-A29-8EU 32-bit processing microprocessor
(D163-0003) Internal ROM 128 Kbyte
A/D converter 10-bit resolution, 8-channel
Master clock 20 MHz
2) EEPROM:
M93C86-WMN6 16kbit 3-wire
3) DSP: ZFX-3L 32-bit processing
Master clock 24.576 MHz
Bit clock 6.144 MHz (64 fs)
L/R clock 96 kHz (1 fs)
4) SDRAM
IS42S16100C1-7TL 512 K x 16 bit x 2banks, as external memory of the ZFX-3L
