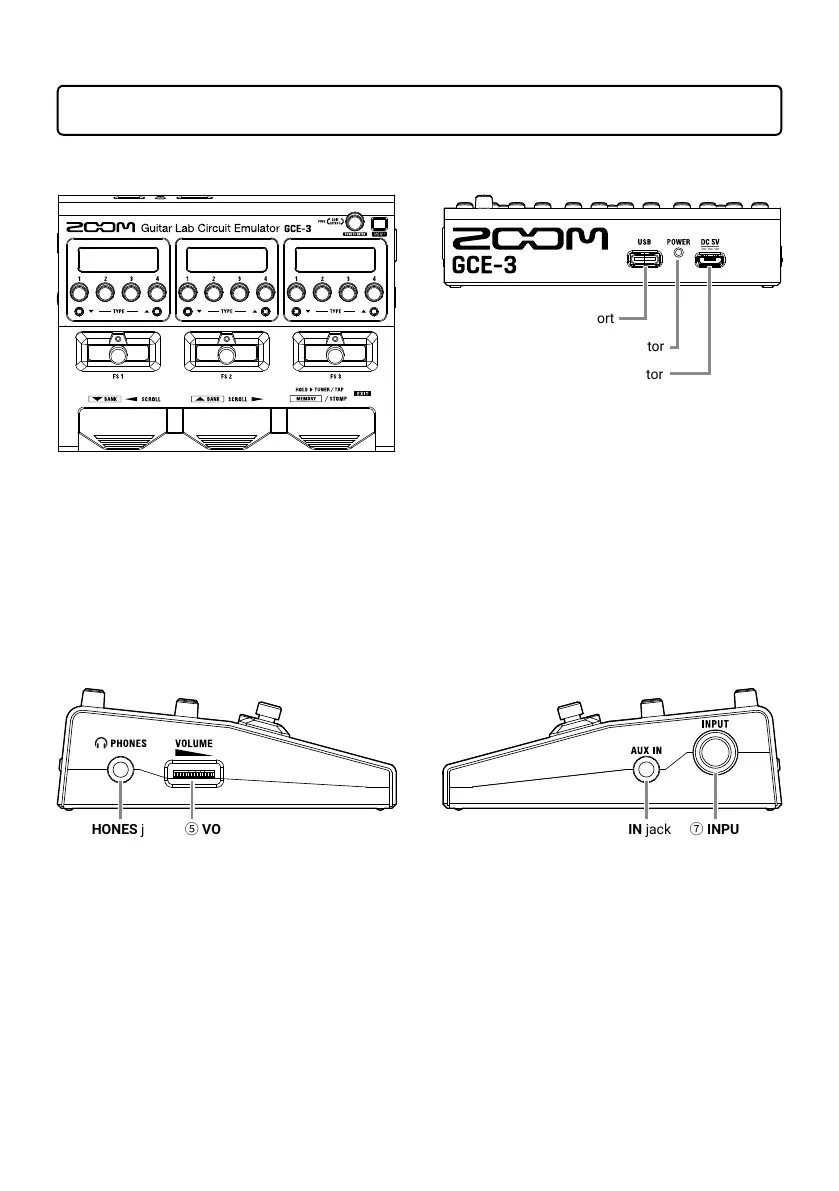

Top
■
Left side
■
Back
■
Right side
③
DC 5V connector
①
USB port
①
USB port
Connect this to a computer.
②
POWER indicator
This lights red when the power is on and lights green when connected to a computer.
③
DC 5V connector
Connect a USB power adapter or USB mobile battery, for example, to supply power.
④
PHONES jack
Connect headphones here.
⑤
VOLUME dial
Use to adjust the output volume.
⑥
AUX IN jack
Connect an audio device or other external sound source here. (The input signal will be sent directly
to the output jack.)
⑦
INPUT jack
Connect a guitar or bass here.
②
POWER indicator
④
PHONES jack
⑦
INPUT jack
⑤
VOLUME dial
⑥
AUX IN jack
Names of parts
