Using Digital Audio Equipment

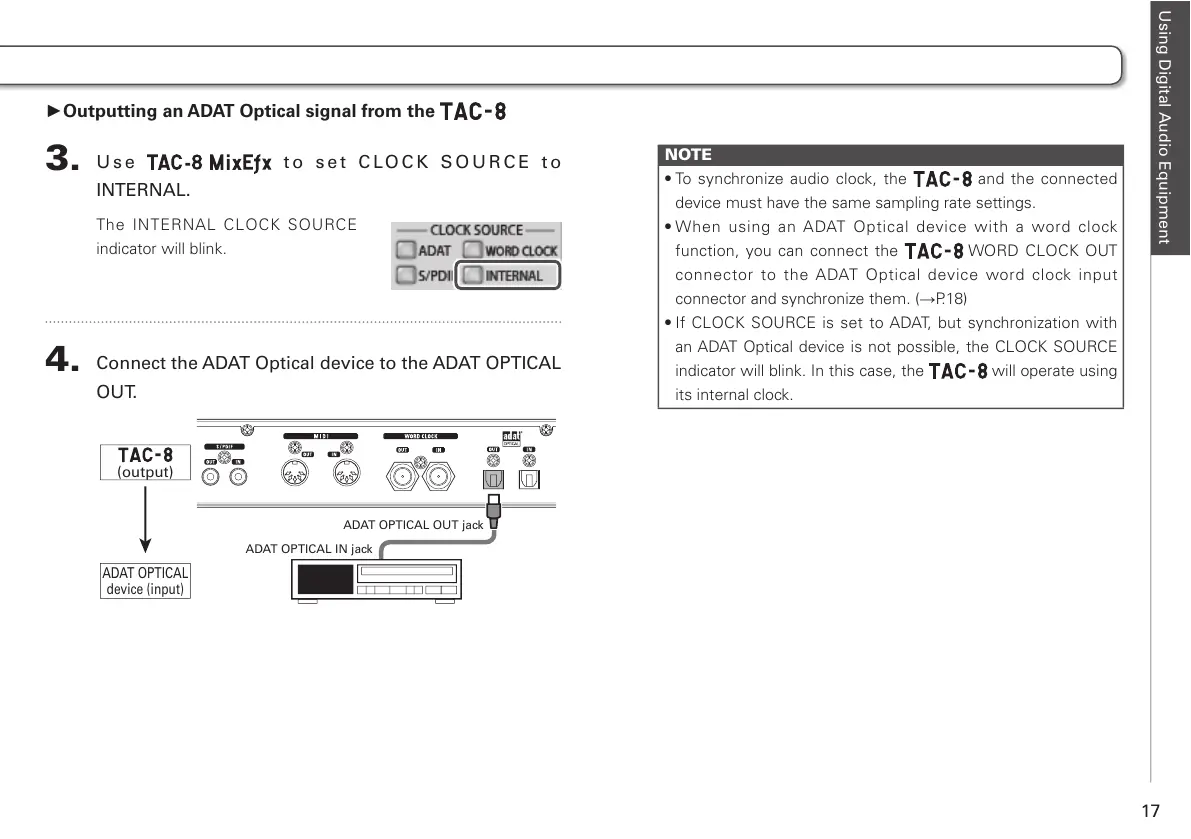

ŹOutputting an ADAT Optical signal from the
3.
Use t o s e t C LO C K S O U R C E t o
INTERNAL.
The INTERNAL CLOCK SOURCE
indicator will blink.
4.
Connect the ADAT Optical device to the ADAT OPTICAL
OUT.
ADAT OPTICAL OUT jack
ADAT OPTICAL IN jack
ADAT OPTICAL
device (input)
(output)
NOTE
t5PTZODISPOJ[FBVEJPDMPDL UIF
and the connected
device must have the same sampling rate settings.
t8IFO VTJOH BO "%"5 0QUJDBM EFWJDF XJUI B XPSE DMPDL
function, you can connect the WORD CLOCK OUT
connector to the ADAT Optical device word clock input
connector and synchronize them. (ĺP.18)
t*G $-0$, 4063$&JT TFUUP"%"5 CVU TZODISPOJ[BUJPOXJUI
an ADAT Optical device is not possible, the CLOCK SOURCE
indicator will blink. In this case, the will operate using
its internal clock.
