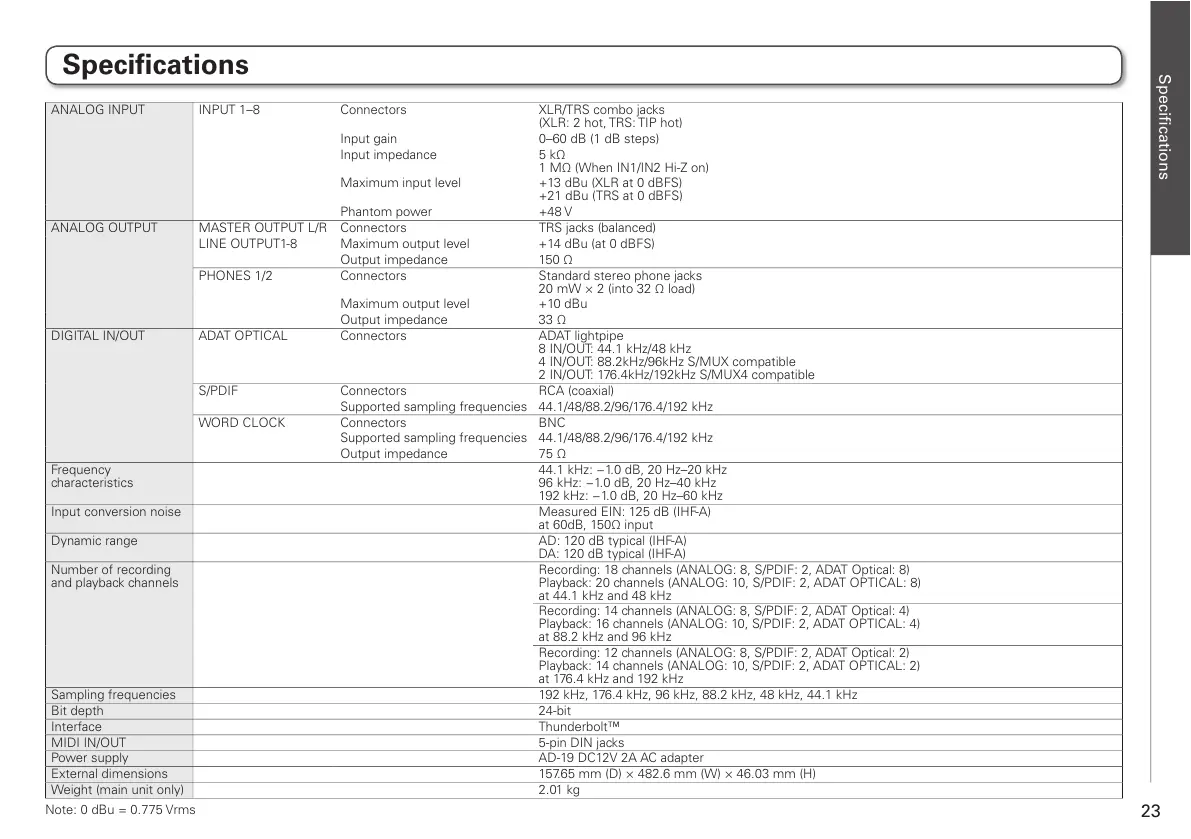

Specifications
Specifications
ANALOG INPUT INPUT 1–8 Connectors XLR/TRS combo jacks
(XLR: 2 hot, TRS: TIP hot)
Input gain 0–60 dB (1 dB steps)
Input impedance 5 kΩ
1 MΩ (When IN1/IN2 Hi-Z on)
Maximum input level +13 dBu (XLR at 0 dBFS)
+21 dBu (TRS at 0 dBFS)
Phantom power +48 V
ANALOG OUTPUT MASTER OUTPUT L/R Connectors TRS jacks (balanced)
LINE OUTPUT1-8 Maximum output level +14 dBu (at 0 dBFS)
Output impedance 150 Ω
PHONES 1/2 Connectors Standard stereo phone jacks
20 mW × 2 (into 32 Ω load)
Maximum output level +10 dBu
Output impedance 33 Ω
DIGITAL IN/OUT ADAT OPTICAL Connectors ADAT lightpipe
8 IN/OUT: 44.1 kHz/48 kHz
4 IN/OUT: 88.2kHz/96kHz S/MUX compatible
2 IN/OUT: 176.4kHz/192kHz S/MUX4 compatible
S/PDIF Connectors RCA (coaxial)
Supported sampling frequencies 44.1/48/88.2/96/176.4/192 kHz
WORD CLOCK Connectors BNC
Supported sampling frequencies 44.1/48/88.2/96/176.4/192 kHz
Output impedance 75 Ω
Frequency
characteristics
44.1 kHz: −1.0 dB, 20 Hz–20 kHz
96 kHz: −1.0 dB, 20 Hz–40 kHz
192 kHz: −1.0 dB, 20 Hz–60 kHz
Input conversion noise Measured EIN: 125 dB (IHF-A)
at 60dB, 150Ω input
Dynamic range AD: 120 dB typical (IHF-A)
DA: 120 dB typical (IHF-A)
Number of recording
and playback channels
Recording: 18 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 8)
Playback: 20 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 8)
at 44.1 kHz and 48 kHz
Recording: 14 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 4)
Playback: 16 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 4)
at 88.2 kHz and 96 kHz
Recording: 12 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 2)
Playback: 14 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 2)
at 176.4 kHz and 192 kHz
Sampling frequencies 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth 24-bit
Interface 5IVOEFSCPMU
MIDI IN/OUT 5-pin DIN jacks
Power supply AD-19 DC12V 2A AC adapter
External dimensions 157.65 mm (D) × 482.6 mm (W) × 46.03 mm (H)
Weight (main unit only) 2.01 kg
Note: 0 dBu = 0.775 Vrms
