zortrax M200 Quick Start Guide

When printing with Z-Filaments you may notice white spots
on models which appeared because of the support removal.
In order to improve the aesthetics, we suggest a very simple solution.

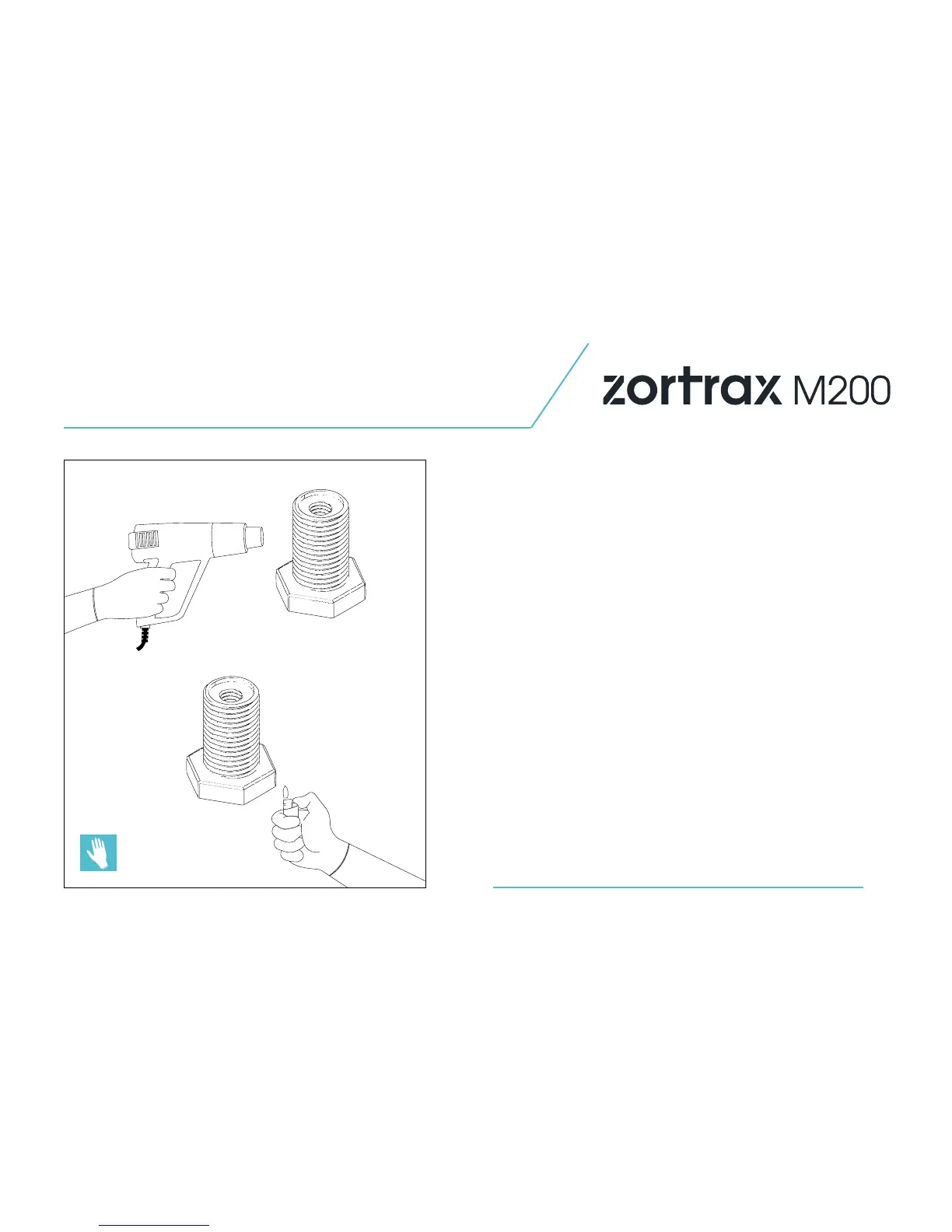

You’ll need a lighter or a heat gun.
1. Carefully remove the support along with the raft from printed
model.
2. Use a lighter to heat the spots from where the support or raft has
been removed. Model should be heated with the side part of the
lighter’s flame.
3. Heat Gun should be heated up to 200-300°C. Direct the warm
stream of air at the spots from where the support was removed. Af-
ter a while, observe the color change from white to a default color
of the print. Remember not to set up the heat gun to the highest
temperature of the air stream. We recommend that the minimum
distance betweenthe heat gun nozzle and the model should be 10
cm.
In all mentioned above activities we recommend
to use safety gloves attached to the set along with
the Zortrax M200 3D printer.
PRINTING
15

zortrax M200 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	90-400 microns
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	SD card
Software	Z-Suite
Operating System	Windows, macOS
Frame	Aluminum
Printing Speed	up to 100 mm/s
Heated Bed	Yes
Bed Temperature	up to 110°C
Nozzle Temperature	up to 380°C
Power Consumption	300 W
Technology	FDM
Supported Materials	Z-ABS, Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD
Power Supply	100-240 V, 50/60 Hz
Dimensions	345 x 360 x 430 mm
Weight	13 kg
