zortrax M200 Unpacking & Setup Instructions

First Print
Insert the SD card with the models stored on it into the printer. The models should be
saved in the main folder.

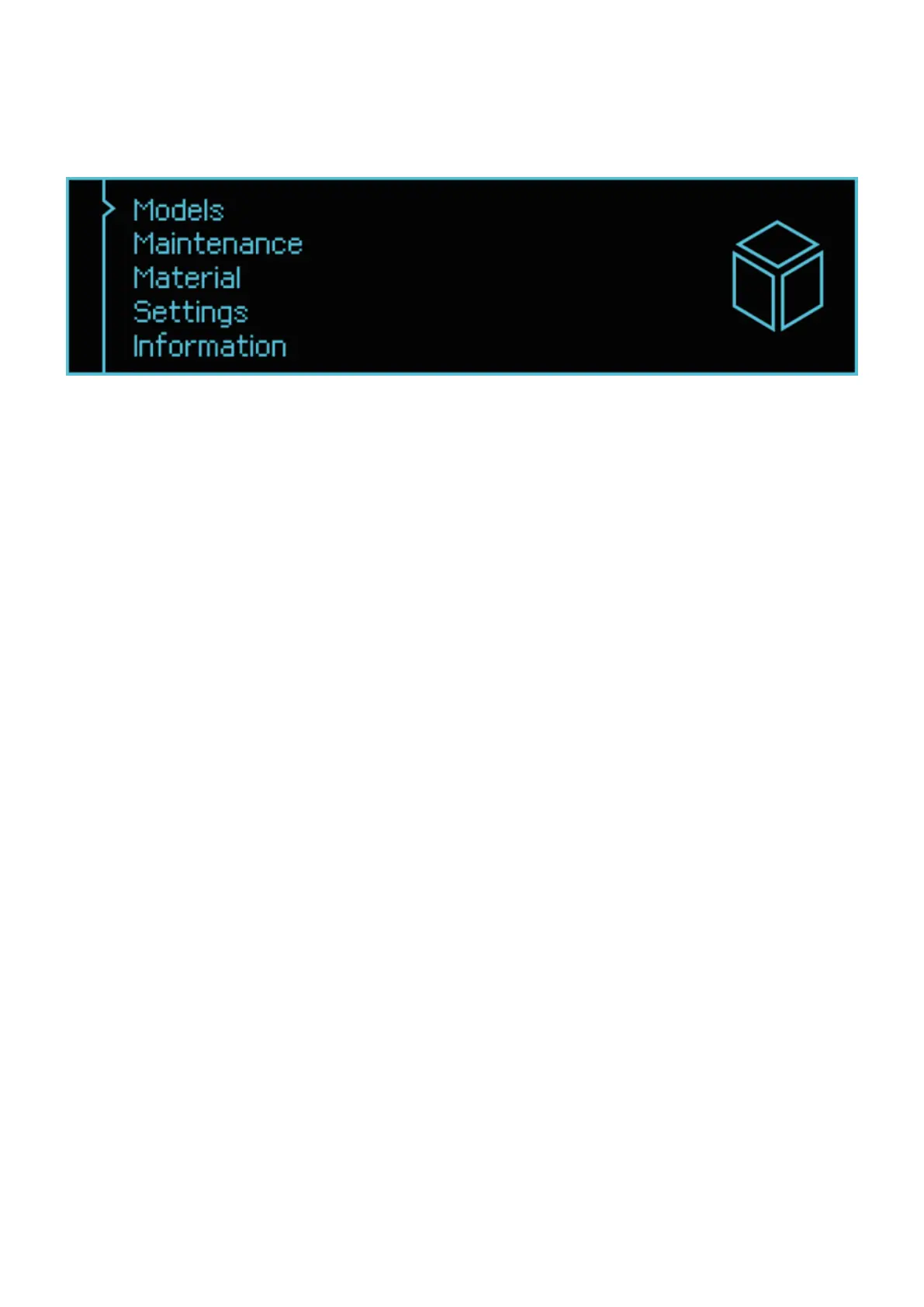

To choose the model for printing, select the “Models” option from the main menu.
Select the model in the .zcode format file and confirm by pushing the knob.
The printing procedure will begin automatically.
The display will show information about the extruder heating level. Once the heating has
been completed, the M200 will start printing. The bar on the display shows the progress
of the print.
Do not leave the printer unattended during the pre-print calibration.
Powered by TCPDF (www.tcpdf.org)

zortrax M200 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	90-400 microns
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	SD card
Software	Z-Suite
Operating System	Windows, macOS
Frame	Aluminum
Printing Speed	up to 100 mm/s
Heated Bed	Yes
Bed Temperature	up to 110°C
Nozzle Temperature	up to 380°C
Power Consumption	300 W
Technology	FDM
Supported Materials	Z-ABS, Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD
Power Supply	100-240 V, 50/60 Hz
Dimensions	345 x 360 x 430 mm
Weight	13 kg
