zortrax M200 Unpacking & Setup Instructions

Preparing the Printer for Work

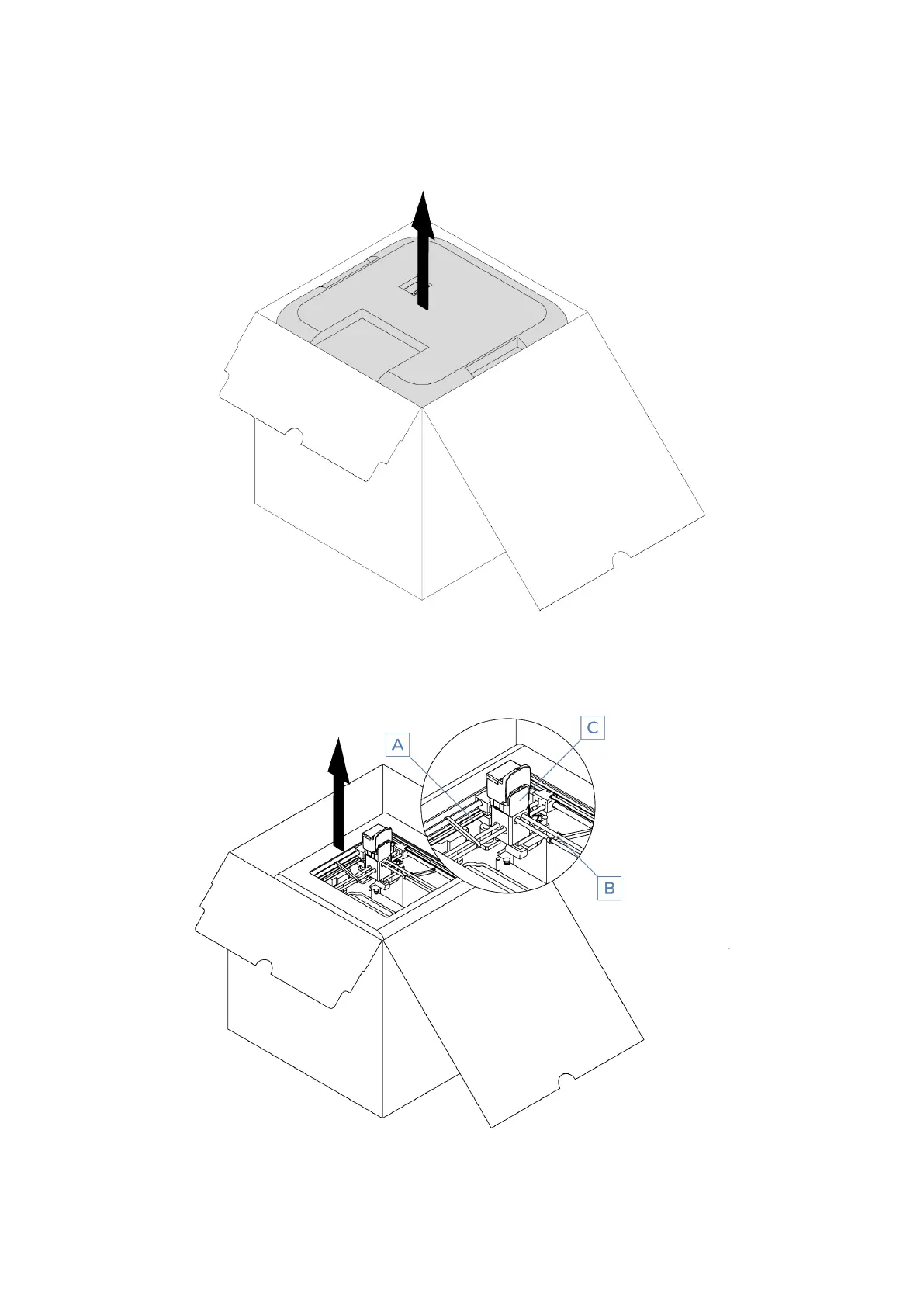

Open the box and remove the upper cushioning.
Take the 3D printer out of the box. When lifting or moving the printer, do not grab:

zortrax M200 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	90-400 microns
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	SD card
Software	Z-Suite
Operating System	Windows, macOS
Frame	Aluminum
Printing Speed	up to 100 mm/s
Heated Bed	Yes
Bed Temperature	up to 110°C
Nozzle Temperature	up to 380°C
Power Consumption	300 W
Technology	FDM
Supported Materials	Z-ABS, Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD
Power Supply	100-240 V, 50/60 Hz
Dimensions	345 x 360 x 430 mm
Weight	13 kg
