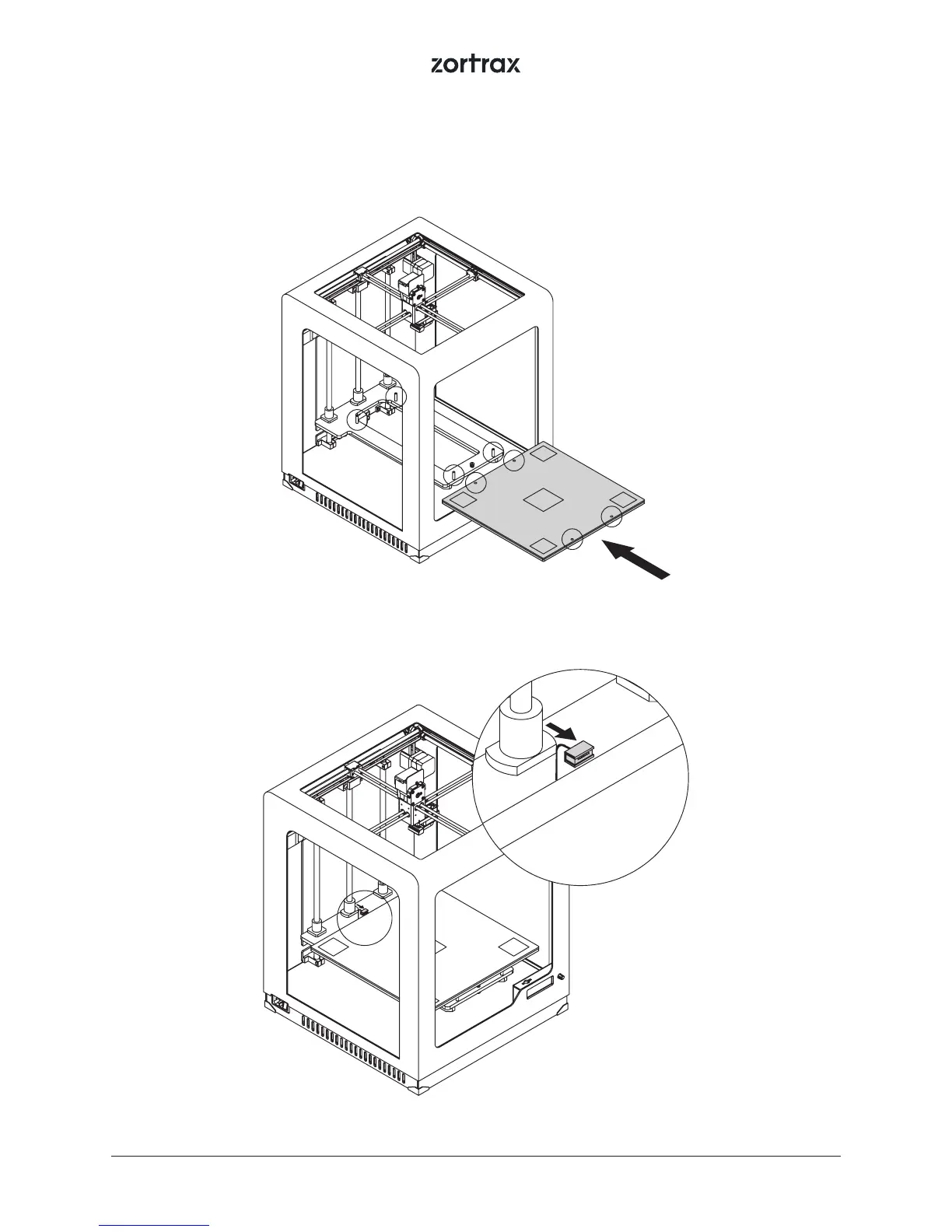

7. Install the platform onto the bolts marked in the picture.
NOTE! REMEMBER THAT THE PLATFORM SHOULD BE INSTALLED IN YOUR DEVICE WITH
THE PERFORATED PLATE AND ITS FIVE SILVER CALIBRATION SQUARES DIRECTED UP.
8. Plug the heatbed cable in.
