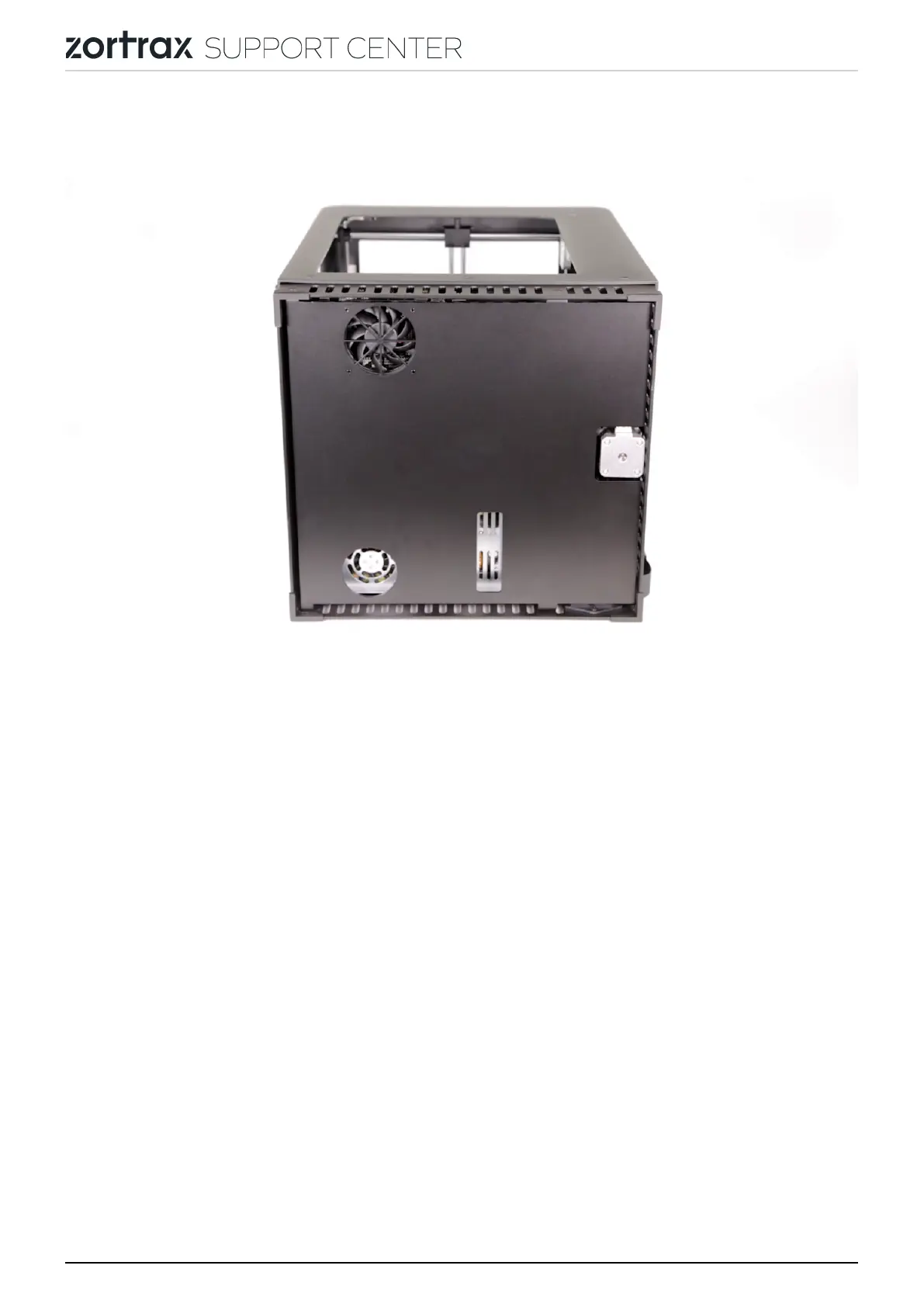

Unscrewing the Bottom Plate, part 1
Unscrew the screws that secure the bottom plate on one side of the housing. Use a
2.5mm Allen key.
page 8 / 26
