Getting to know your ZOTAC ZBOX
Front view

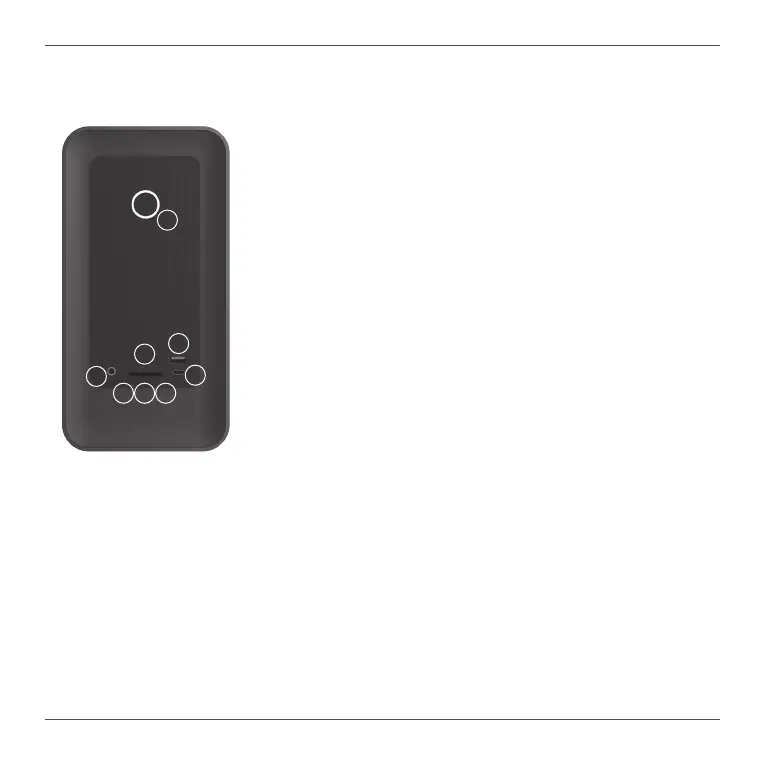

Refer to the diagram below to identify the components on this
side of the system
1. Power switch
The power switch allows powering ON and OFF the system.
2. Combo Headphone/Microphone jack (3.5mm)
The combo headphone/microphone jack (3.5mm) is used to
connect the system’s audio out signal to amplied speakers,
3-pole headphones or 4-pole CTIA headphones.
Note: The combo headphone/microphone jack does not
support the traditional microphone.
3. Memory card slot
The Memory card slot is compatible with SD/SDHC/SDXC
cards used in devices like digital cameras, MP3 players, mobile
phones and PDAs.
4. Power LED
The Power LED is always ON when power is on.
5. WiFi LED
The WiFi LED is always ON when WiFi was active.
1
2
3
4 5 6
7
8
6. Hard disk LED
The hard disk LED blinks when data is being written into or read from the hard disk drive.
7. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible
with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with
USB 3.0 compatible devices.
8. USB 3.0 Type-C port
The USB 3.0 type-C port supports the SuperSpeed USB 3.0 devices. Use this port for USB
3.0 devices for maximum performance with USB 3.0 compatible devices.
