02418V10 • 11.08.2016/DC • 1-15

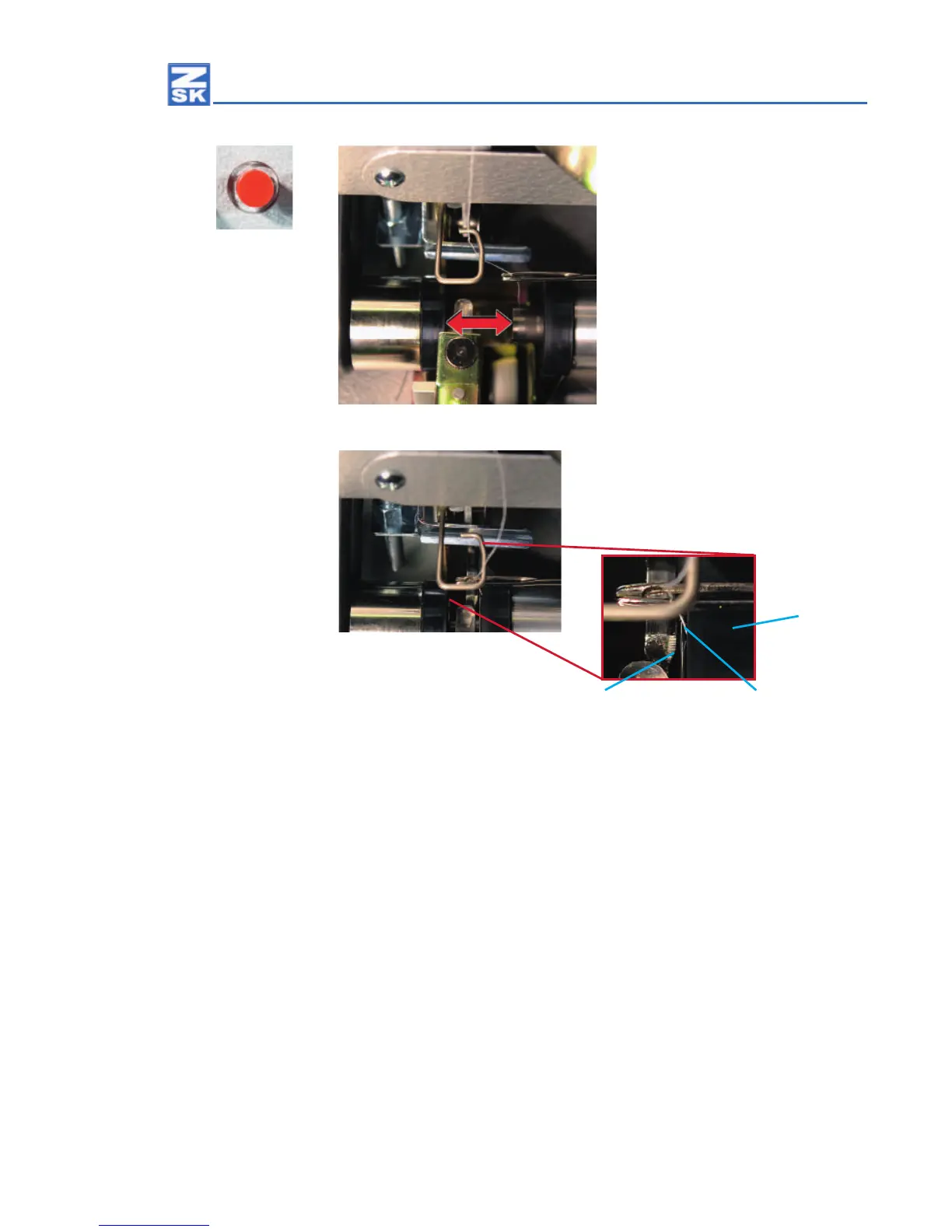

Winding process
• Press repeated the switch JOGGING,
until the bobbin support is completely
released.
• Control the thread excess lenght
underneath the needle. If necessary,
pull down the thread through the
needle using a forcepts.
• Press repeated the switch JOGGING, until an empty bobbin is located in the
bobbin support, the bobbin support is closed and the thread is trapped between
bobbin and rubber cushion.
• Control clamping of the thread (see image enlargement).
Rubber cushion
Thread locked
Empty bobbin
