ZXR10 ZSR V2 Series Router Product Description
ZTE Confidential & Proprietary 65

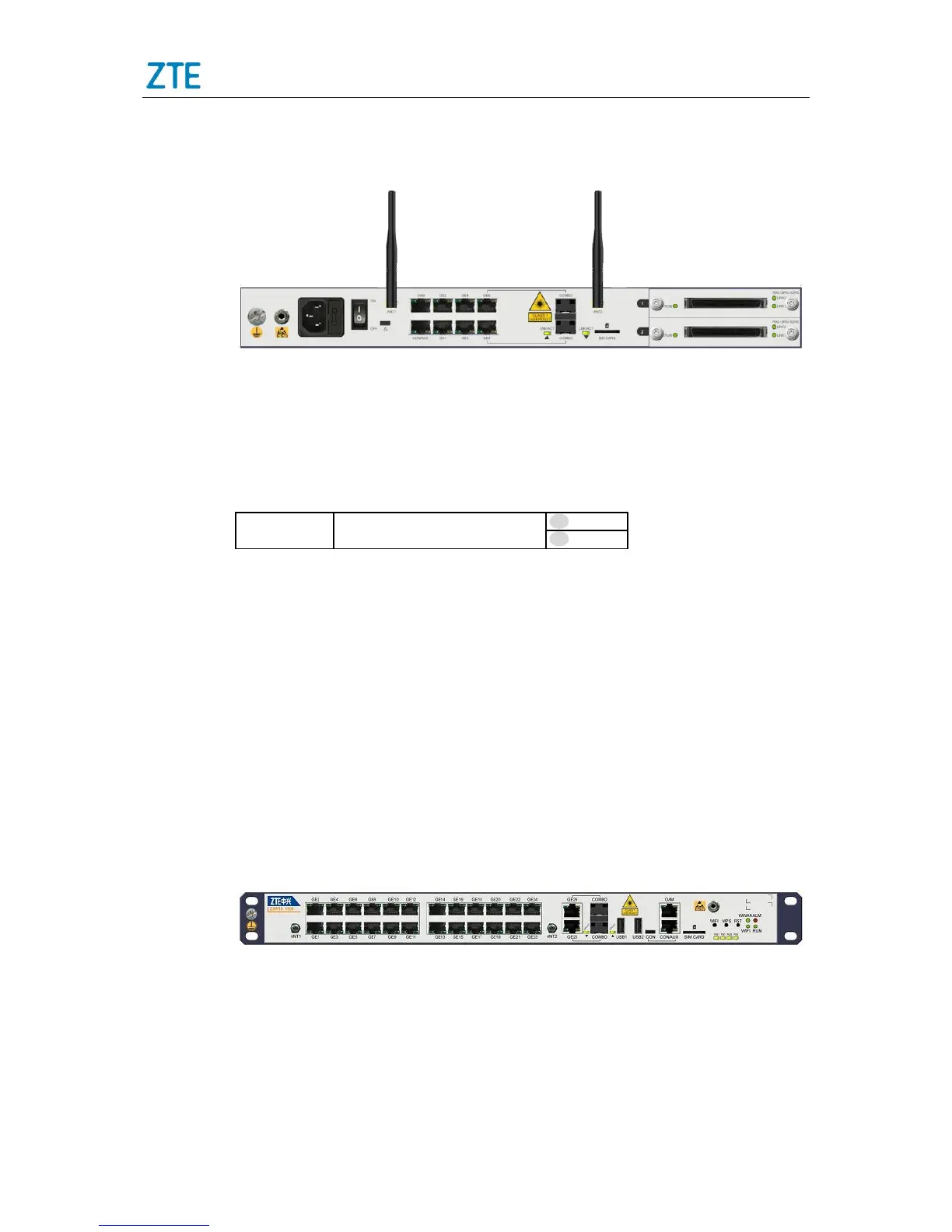

Figure 4-8 The Front View of the ZXR10 1800-2S(G)/2S(W)
The ichnography of the ZXR10 1800-2S/2S(G)/2S(W) architecture is as shown in the
figure:
Figure 4-9 The Ichnography of the ZXR10 1800-2S/2S(G)/2S(W) Archtiecture
AC/DC
SPIU
SPIU
MPFU
0
1
 The ZXR10 1800-2S/2S(G)/2S(W) only supports SPIU. This is general-speed
interface board, which bandwidth is 1 Gbps. Size (width x height x deep) is: 77 mm x
20 mm x 182 mm, in which SPIU takes up 0 or 1 slots.
4.1.4 The Appearance of ZXR10 1800-2E/2E(G)
The chassis of 1800-2E/2E(G) is 1U (1U=44mm). The size of the device is 442mm (W)
x44 (H) x200mm (D). The front view of the ZXR10 1800-2E/2E(G) is as shown in the
figure.
Figure 4-10 The Front and Real Panel of the ZXR10 1800-2E/2E(G)
