Zte ZXR10 ZSR V2 Series - Figure 4-16 the Hardware Architecture of the ZXR10 3800-8; Figure 4-17 the Hardware Architecture of the ZXR10 2800-4

ZXR10 ZSR V2 Series Router Product Description
70 ZTE Confidential & Proprietary

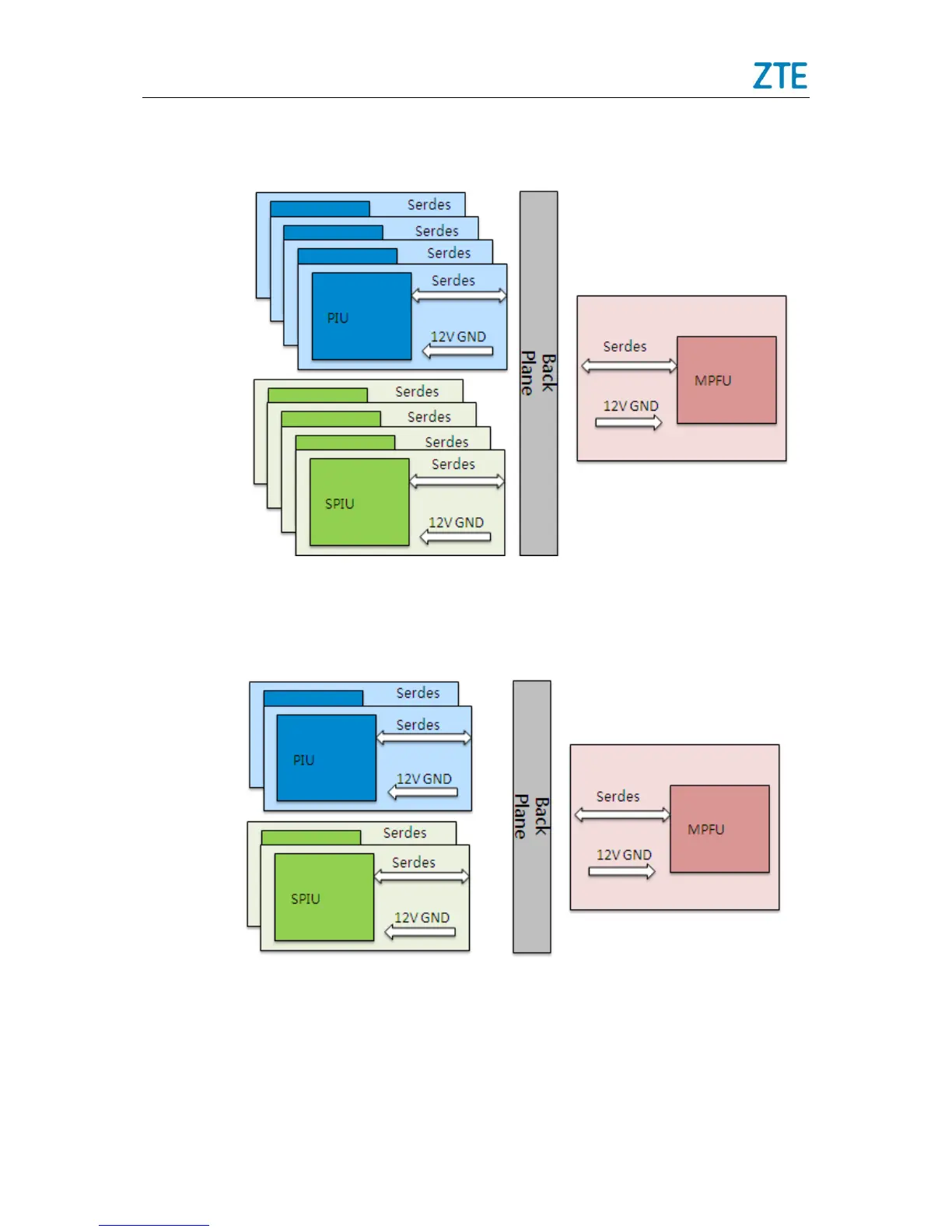

Figure 4-16 The Hardware Architecture of the ZXR10 3800-8
The hardware system architecture of the ZXR10 2800-4 is as shown in the figure:
Figure 4-17 The Hardware Architecture of the ZXR10 2800-4
The hardware system architecture of the ZXR10 1800-2S/2S(G)/2S(W) is as shown in
the figure:
