011302/01
2

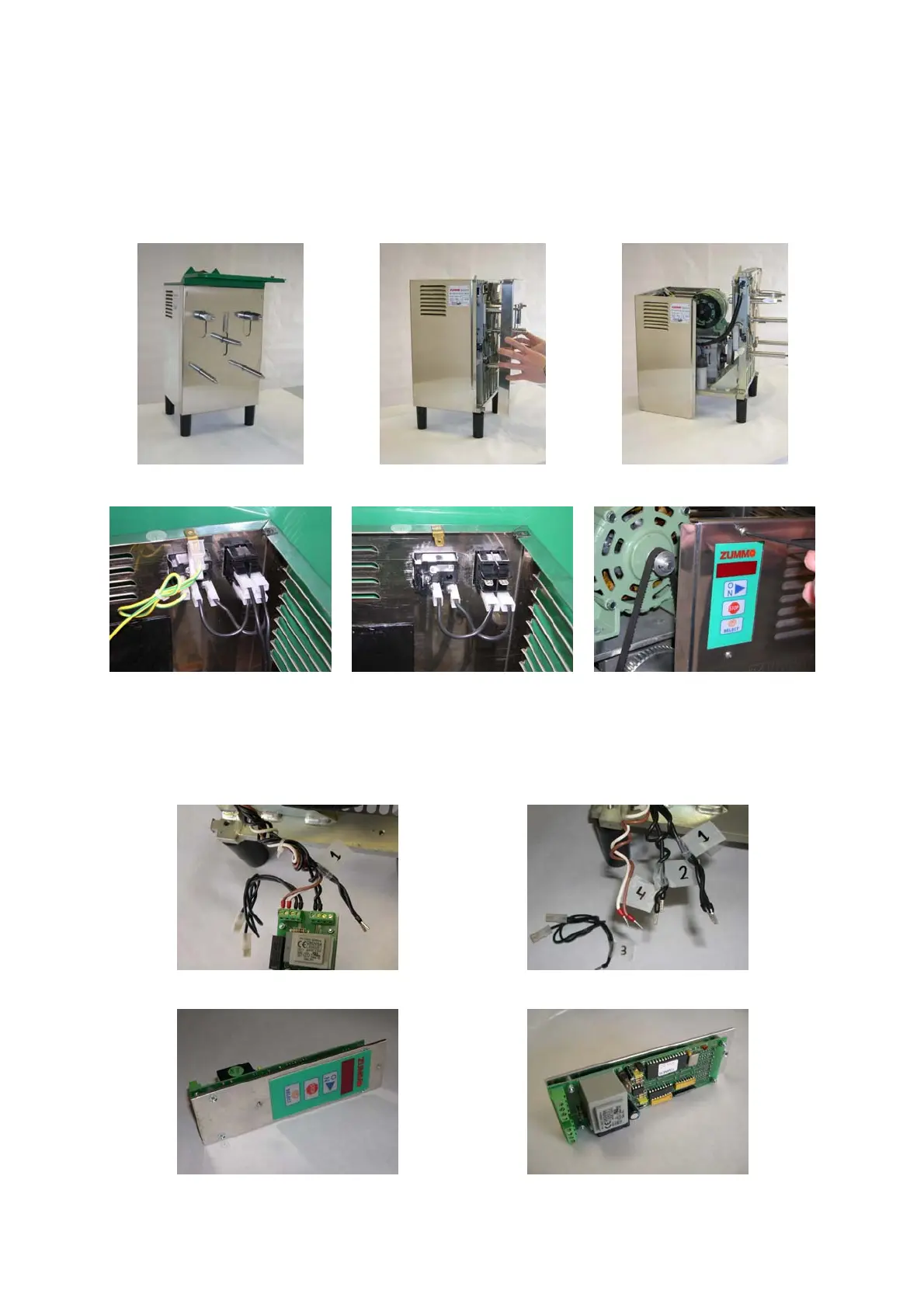

• Extract the front of the machine (Fig. 2b).
• Extract the rear (Fig. 2c)
• Disconnect the wires from the switch and the mains power supply (Fig. 2d)
except the mains supply bridge (Fig. 2e)
• Extract the electronic circuit board (2.5mm Allen key) (Fig. 2f)
2a 2b 2c
2d 2e 2f
3.- REPLACING THE ELECTRONIC CIRCUIT BOARD.
• Mark the wires in pairs before dismantling (Figs. 3a and 3b)
• Do not dismantle the board further. Send it to be repaired as it is. (Figs. 3c and
3d)
3a 3b
3c 3d
