Zummo Z05 - Replacing the Pusher Assembly; Replacing the Bridge; Replacing a Runner or a Cup Spring; DISMANTLING

011302/01
3

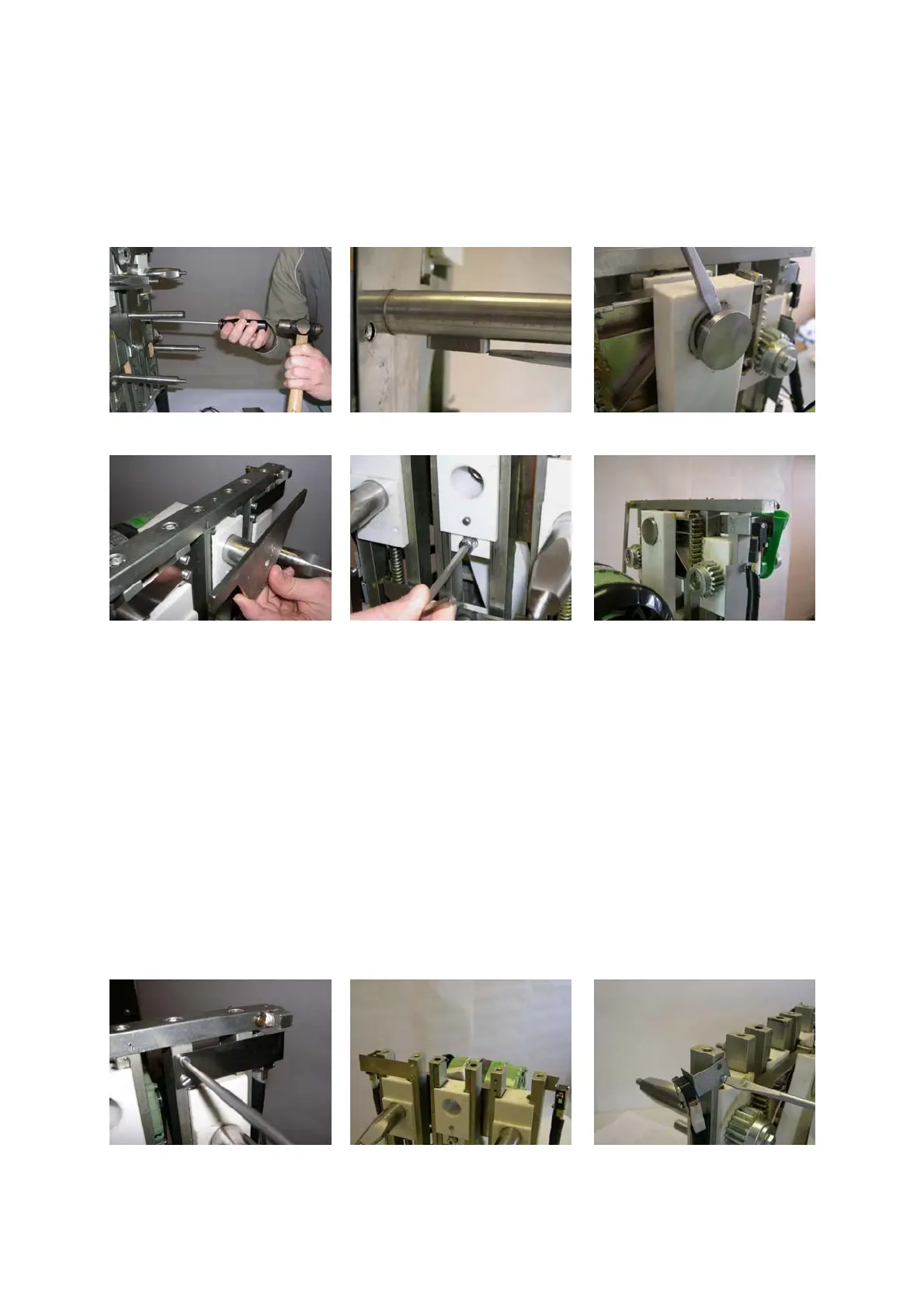

4.- REPLACING THE PUSHER ASSEMBLY.
• Extract the key from the blade shaft (Figs. 4a and 4b).
• Dismantle the three runner covers in order to work safely.
• Extract the top bolt from the bridge (M8x50 Allen) and the top pin (Fig. 4c).
• Extract the pusher assembly (Fig. 4d).
4a 4b 4c
4d 5a 5b
5.- REPLACING THE BRIDGE.
• Repeat Section 4 without needing to extract the pusher assembly.
• Extract the bottom bolt from the bridge runner (M8x35Allen) (Fig.5a). This will
release the bridge.
• On fitting the new bridge, fit the rod in the highest position and the cups in the
vertical position (Fig. 5b).
6.- REPLACING A RUNNER OR A CUP SPRING.
DISMANTLING
• Carry out Step 4.
• Dismantling the micro strip (Fig 6a).
• Dismantle the top bar (Fig. 6b).
• Dismantle the short micrometer (Fig. 6c)
6a 6b 6c
• Dismantle the two cogs. (Fig. 6d).
