011302/01
4

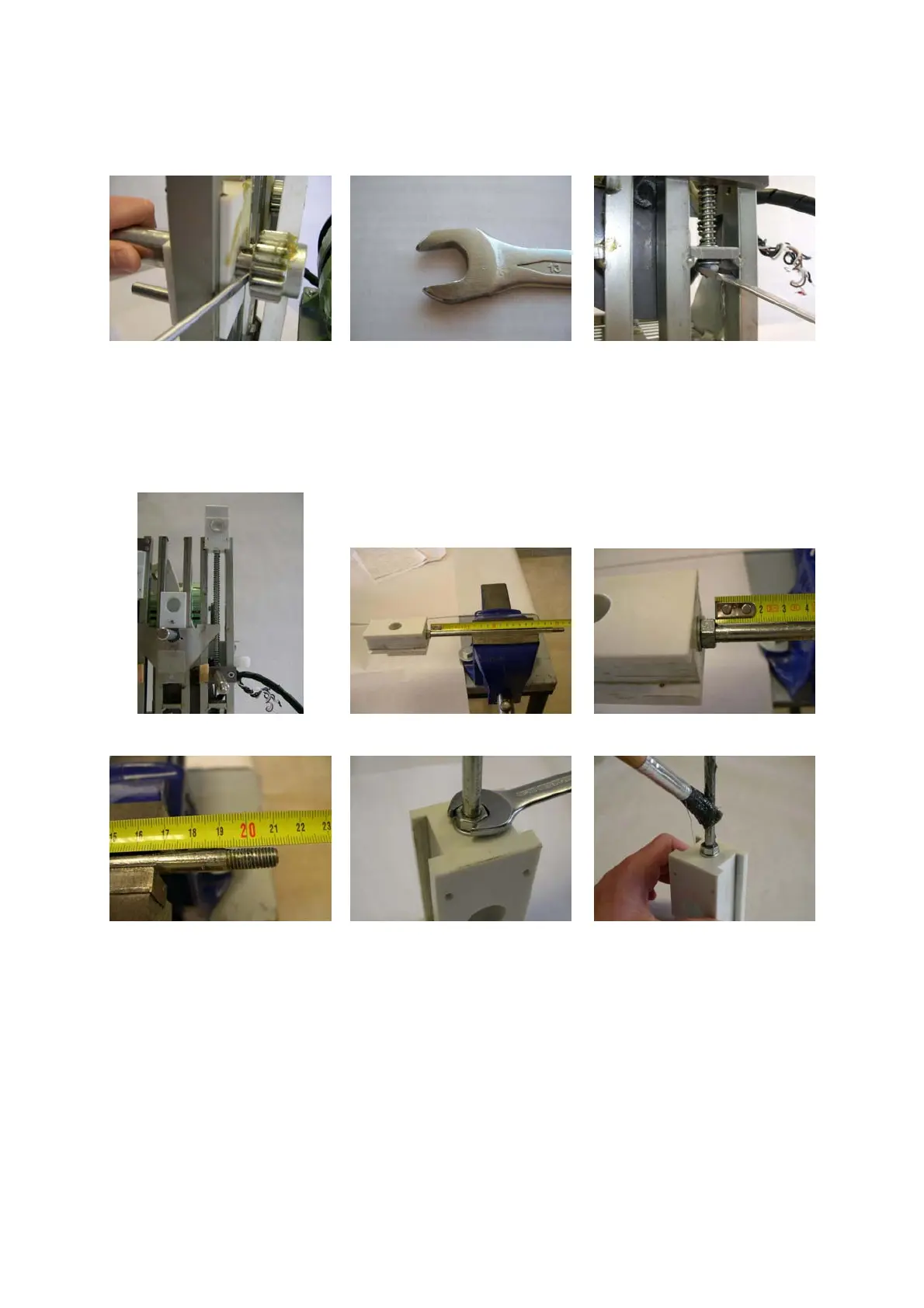

• Unscrew the bottom nut from the puller. An open-ended wrench will be required
(Figs 6e and 6f).
6d 6e 6f
• Extract the runner with its spring and puller (Fig. 6g).
ASSEMBLY
• Screw the nut onto the puller, fit the washer and screw the puller onto the runner.
There should be 210 -211mm free after the nut (Figs. 6h - i - j - k)
6g 6h 6i
6j 6k 6l
• Make sure that the puller is as perpendicular to the runner as possible.
• Grease the puller, fit the spring and grease it (Figs. 6l and 6m).
• Grease the operating area (Fig. 6n).
