Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

167

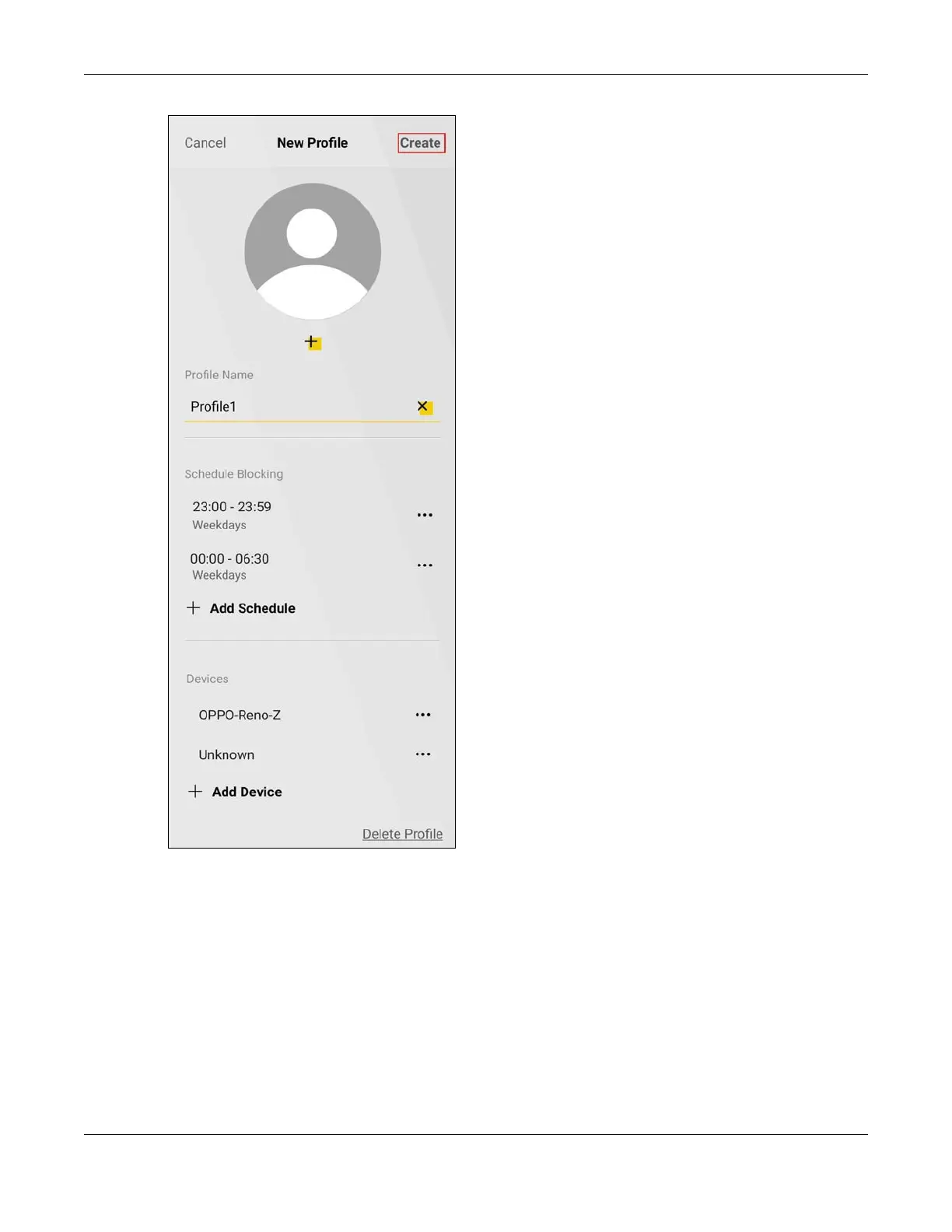

11 Tap the switch to enable Parental Control. The profiles are active when you enable Parental Control. If a

profile is currently blocking clients from Internet access during the scheduled period, the status displays

Block from Internet. Otherwise, it displays Allow to Internet.
