Chapter 3 Web Configurator

AX/DX/EX/PX Series User’s Guide

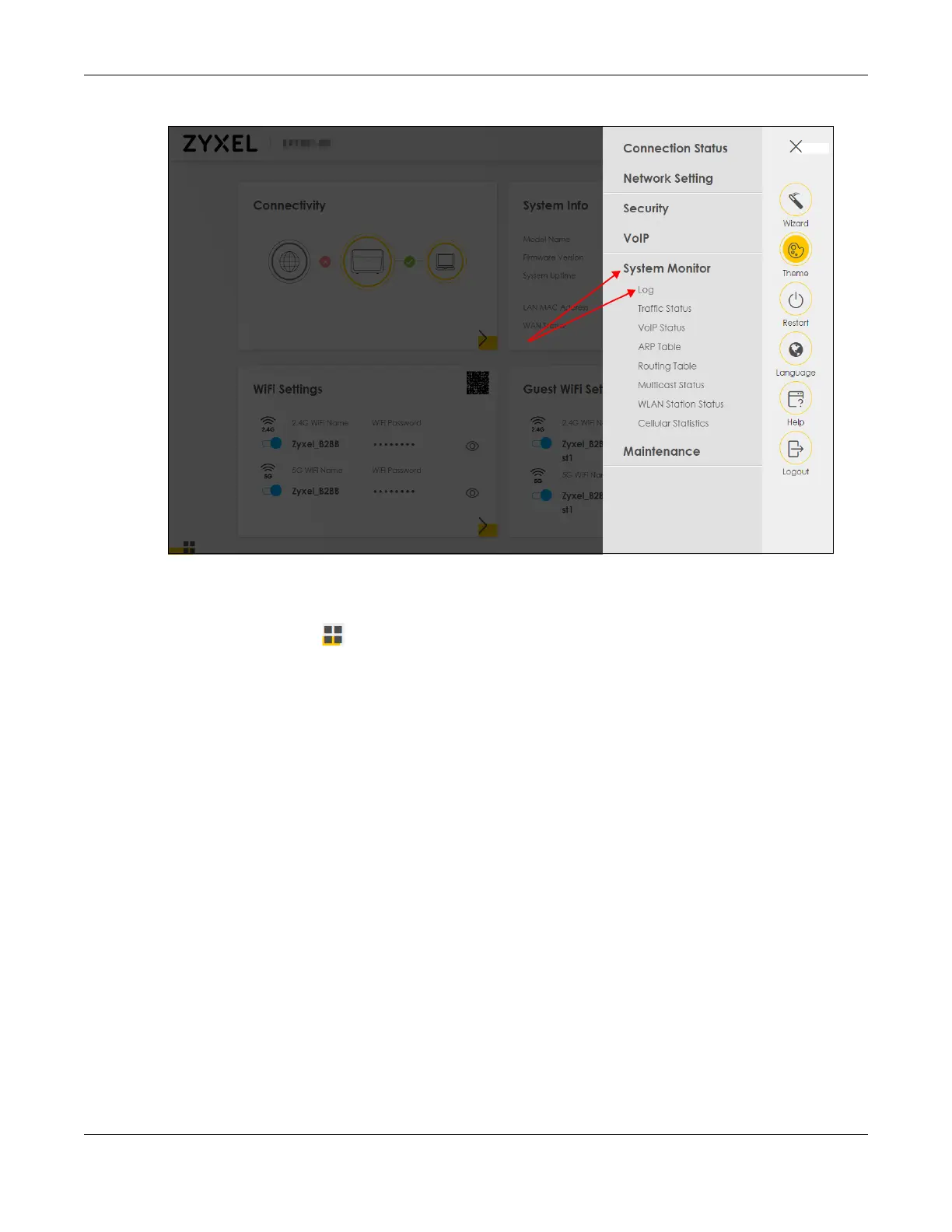

Figure 52 Navigation Panel

3.2.2 Widget Icon

Click the Widget icon ( ) in the lower left corner to arrange the screen order.
