ZyXEL Communications NAP Series User Manual

Chapter 1 Introduction
NAP Series User’s Guide
19

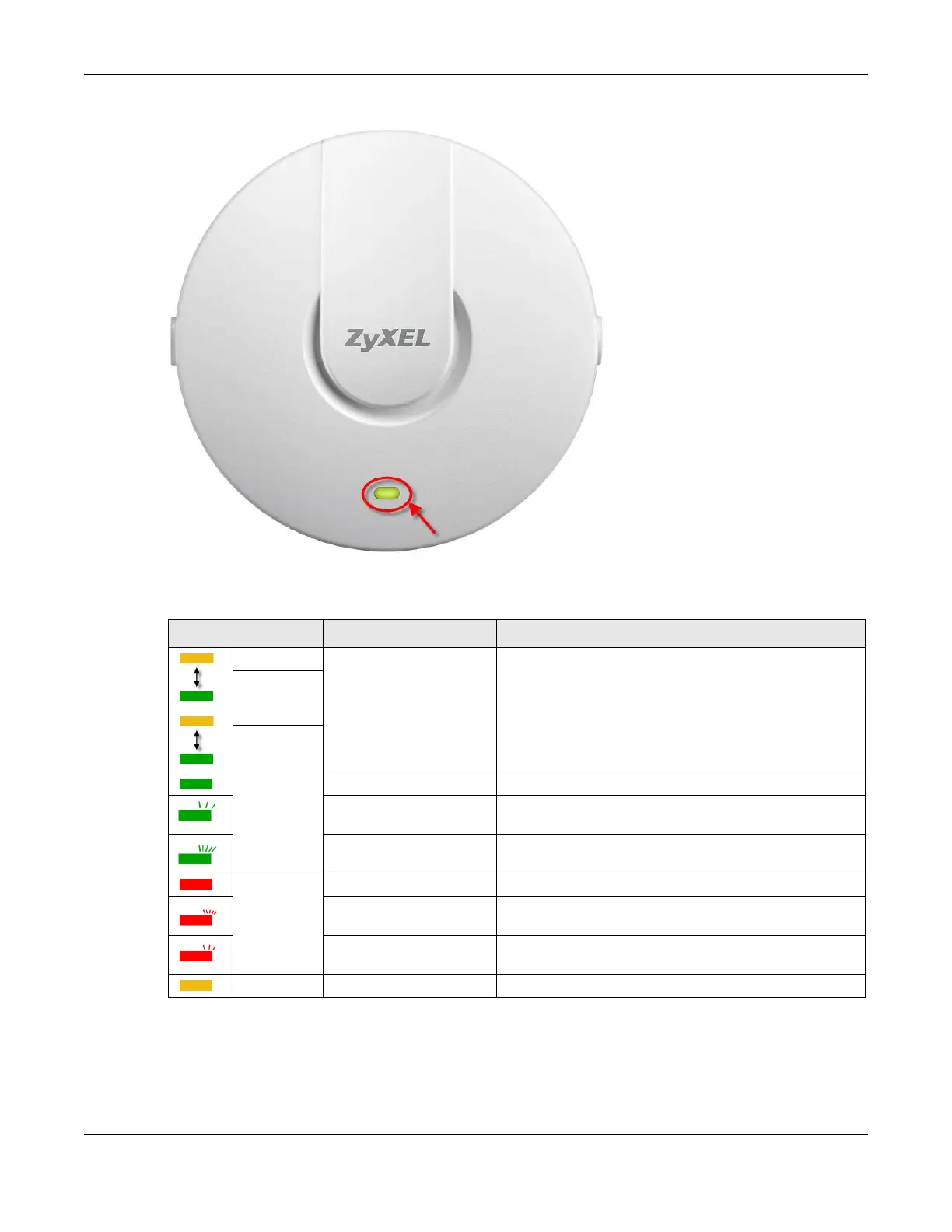

Figure 10 NAP102 LED
The following are the LED descriptions for your NAP102.
Table 6 NAP102 LED
COLOR STATUS DESCRIPTION
Amber Slowly blinks amber for
one second and green for
one second alternatively
The NAP is booting up or is connecting to the NCC.
Green
Amber Slowly blinks amber and
green alternatively three
times and turns steady
green for three seconds
The NCC is connecting to the registered NAP.
Green
Green On The NAP is ready for use and its WiFi interface is activated.
Slow Blinking (On for 1s, Off
for 1s)
The NAP is connected to the NCC, but not registered or the
WiFi module failed or is disabled.
Fast Blinking (On for 50ms,
Off for 50ms)
The Locator LED is on.
Red On The NAP failed to boot up or is experience system failure.
Fast Blinking (On for 50ms,
Off for 50ms)
The NAP is undergoing firmware upgrade.
Slow Blinking (blink for 3
times, Off for 3s)
The Uplink port is disconnected.
Amber On The NAP is powered up.

ZyXEL Communications NAP Series Specifications

General

Category	Wireless Access Point
Manufacturer	ZyXEL Communications
Frequency Band	2.4 GHz, 5 GHz
Antenna Type	Internal
Ethernet Ports	1 x Gigabit Ethernet
PoE Support	802.3af PoE
Security	802.1X
Operating Modes	Access Point
Management	Web UI
