Chapter 5 Tutorials
NBG7510 User’s Guide
54

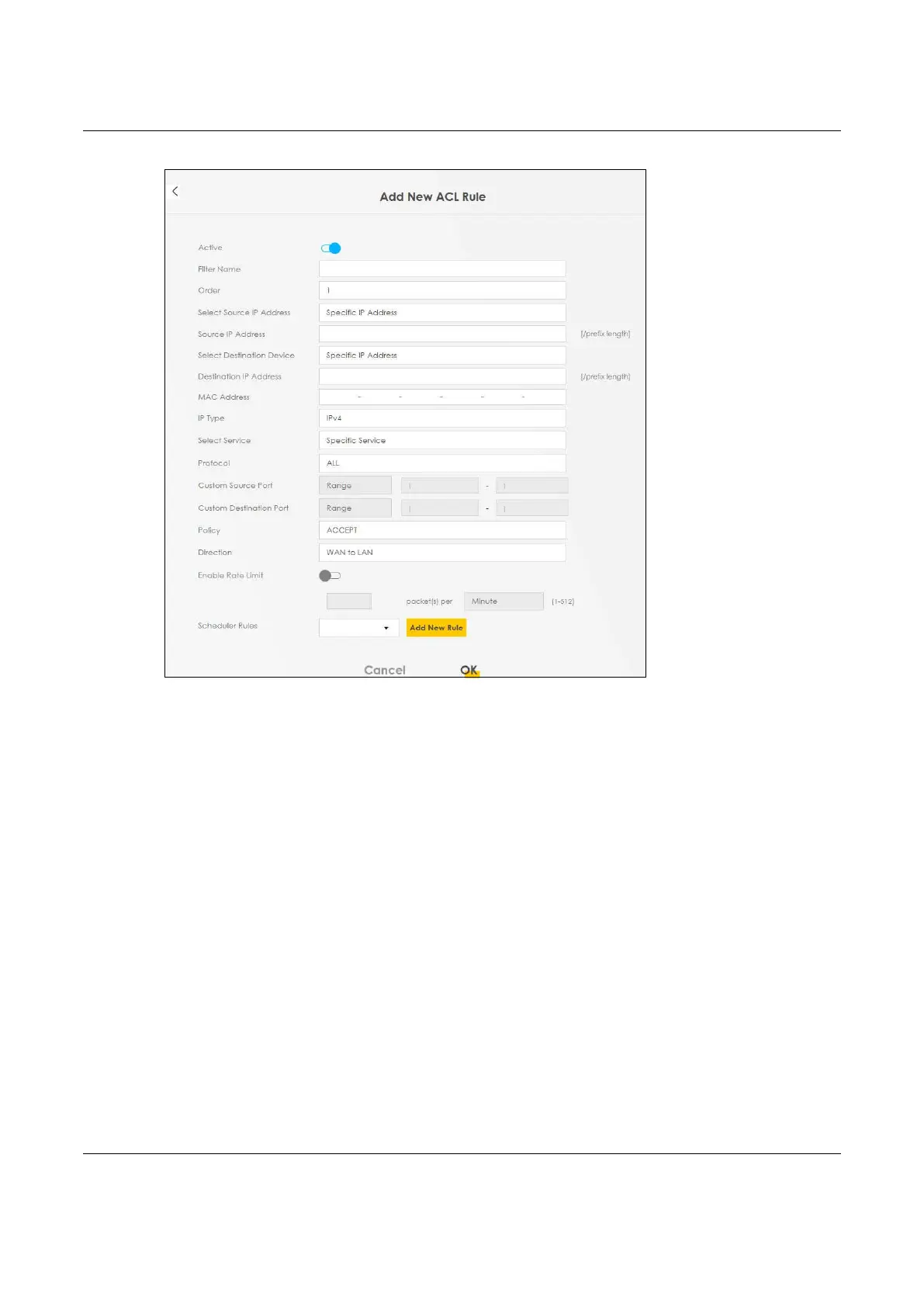

4 Click Add New Rule and use the following fields to configure and apply a new ACL (Access Control List)
rule.
4a Filter Name: Enter a name to identify the firewall rule.
4b Source IP Address: Enter the IP address of the computer that initializes traffic for the application or
service.
4c Destination IP Address: Enter the IP address of the computer to which traffic for the application or
service is entering.
4d Protocol: Select the protocol (ALL, TCP/UDP, TCP, UDP, ICMP or ICMPv6) used to transport the
packets.
4e Policy: Select whether to (ACCEPT, DROP, or REJECT) the packets.
4f Direction: Select the direction (WAN to LAN, LAN to WAN, WAN to ROUTER, or LAN to ROUTER) of the
traffic to which this rule applies.
5 Select Enable Rate Limit to activate the rules you created. Click OK.
