-6-
L1 L2
1 2 3 4 5 6
ON DIP
12.13 inch
4.84 inch
10.91 inch
12.28 inch
4.17 inch
5.04 inch

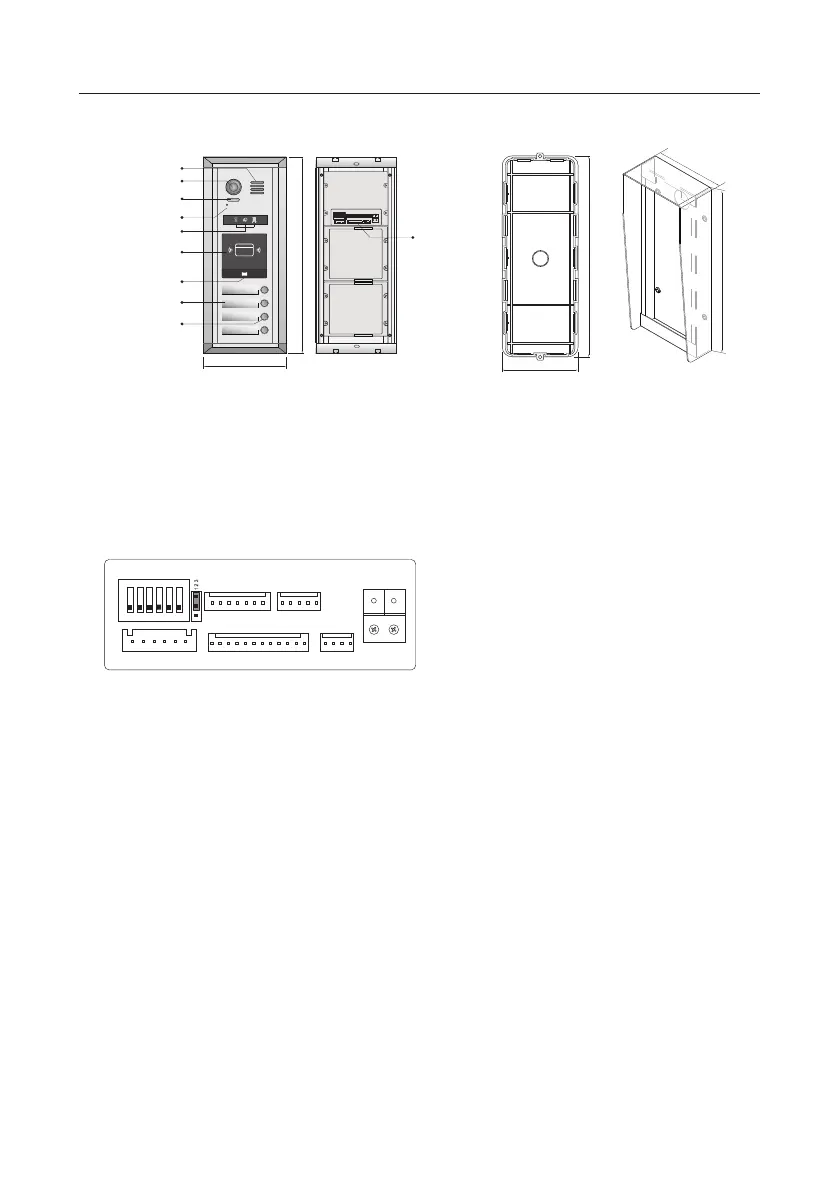

RF CARD
Camera Lens
Speaker
Night View LED
ID Card Window
Status Indicator
Microphone
Nameplate
LED Indicator
Call button
Mounting box for
flush mounted
Rainy cover for
surface mounted
Connection
port
A B
Note:Key A and key B will not be seen on the panel,they are cryptic.About activating key
A and key B, please refer to Part 5.
4. Terminal Description For Outdoor Station
• +12V: 12VDC power output.
• LK-: Power ground. See page 13 for hook-up with DS-ERL included in kit.
• LK+: Common contact of the relay.
• NO.: Normally open contact of the relay
• EB+: Exit button positive connection port.
• EB-: Exit button negative connection port.
• JP-LK: For electronic lock safety type setting(refer to door lock connections).
• SET : DIP switches for system configurations. By default, DIP5 is on, that
means the unlocking time is 5 seconds.
• CN/KMB: Call button module connection port.
• CN/T-COIL: Reserved.
• CN/FUN: Touch sensor keypad module or TFT display module connection
port.
• CN/WGN: Card reader module connection port.
• Bus(L1,L2): Non-polarity bus line,connect to power supply.
CN-LK
JP-LK
+12V
LK-
LK+
NO
EB-
EB+
SET
12V
TX1
RX1
GND
RX3
TX3
GND
5CL
GND
5DA
RST
INT
GND
12V
CLK
DAT
STR
C2
C1
CTR
GND
GND
VIO
POW
WG0
WG1
GND
12V
CN/KMB CN/T-COIL
CN/FUN CN/WGN
L1 L2
1 2 3 4 5 6
ON DIP
