2.5 Button Tags
Tag Printing
Every2N
®
IP Forcedelivery includes a sheet of translucent foil, which can be laser-printed. Cut the printed
foil and insert the tags in the name plates.
Every name plate includes a piece of foil, which can be written over manually, using a waterproof permanent
marker, if necessary.
Tag Inserting/Replacing Instructions
2N
®
IP Force provides an intuitive, easy access to the name
plates. The tags are easy to insert and replace even without
a manual. You need not remove the front panel and thus
are not exposed to the risk of loss of components while
replacing the tags.

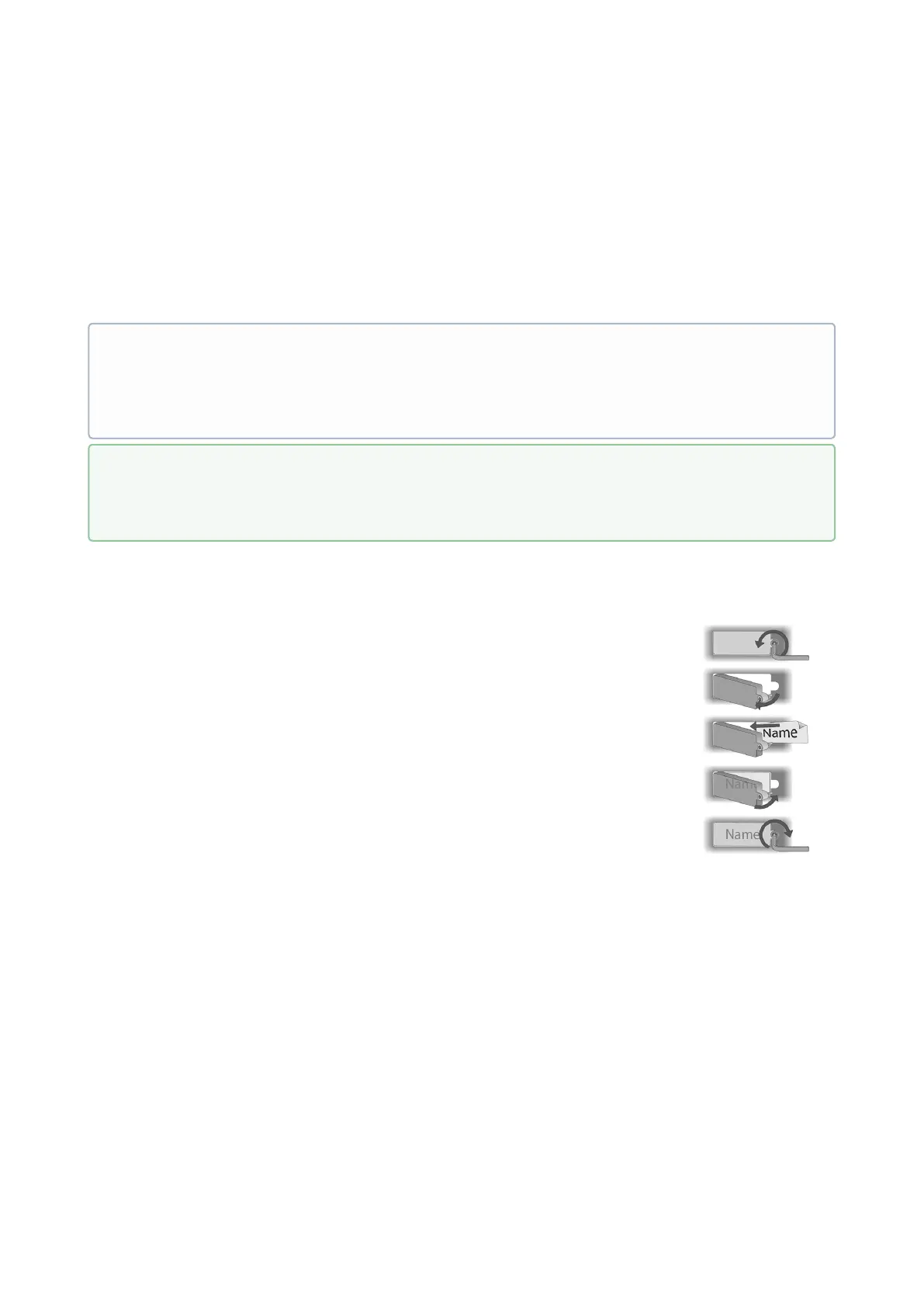

Loosen the name plate screw using the wrench enclosed, for example. You can
open the name plate window like a door without losing the tightened screw.
Remove the used or blank name tag and insert a new tag.
Close the name plate window and tighten the screw appropriately.
Check the click effect of the buttons: if the button fails to click properly when
pressed (when moved by approx. 0.5 mm), the tag is too thick or thin. Make sure
that the button clicks when you press it on both ends.
•
Note
Always use waterproof foil (enclosed or other) for the tags. Never use paper or ink jet printing to
avoid damage due to water leakage!

•
Tip
A template for printing nametags can be downloaded from www.2n.cz.

