2N IP Force 9151101CHW - General Drawings

Installation manual 2N® IP Force

111 / 118
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Optional:Includes also oneinput, active output, relay, tamper switch
Active switch output:9 up to 13 V DCdepending on power supply (PoE: 9 V; adaptor: power supply voltage
minus 1V), max 600mA
Passive relay switch:NO and NC contacts, up to 30V / 1A AC/DC
Mechanical properties
Cover:Robust aluminium cast product, front panel: aluminium cast, fiberglass FR4(91511xxxR)
Colour:Not from RAL scheme, matching equivalent would be 9004 glossy black
Working temperature:−40°C to 55 °C
Working relative humidity:10% – 95% (non-condensing)
Storing temperature:−40°C to 70°C
Dimensions
217x109x83 mm
242x136x83 mm incl. frame
Weight:netto max. 2 kg / brutto max. 2,5 kg
Covering level:IP65, IP69K (91511xxxW)
Resistance level:IK10
UL294 levels
Attack, Security, Line Security – Level I
Endurance– Level IV
4.1 General drawings

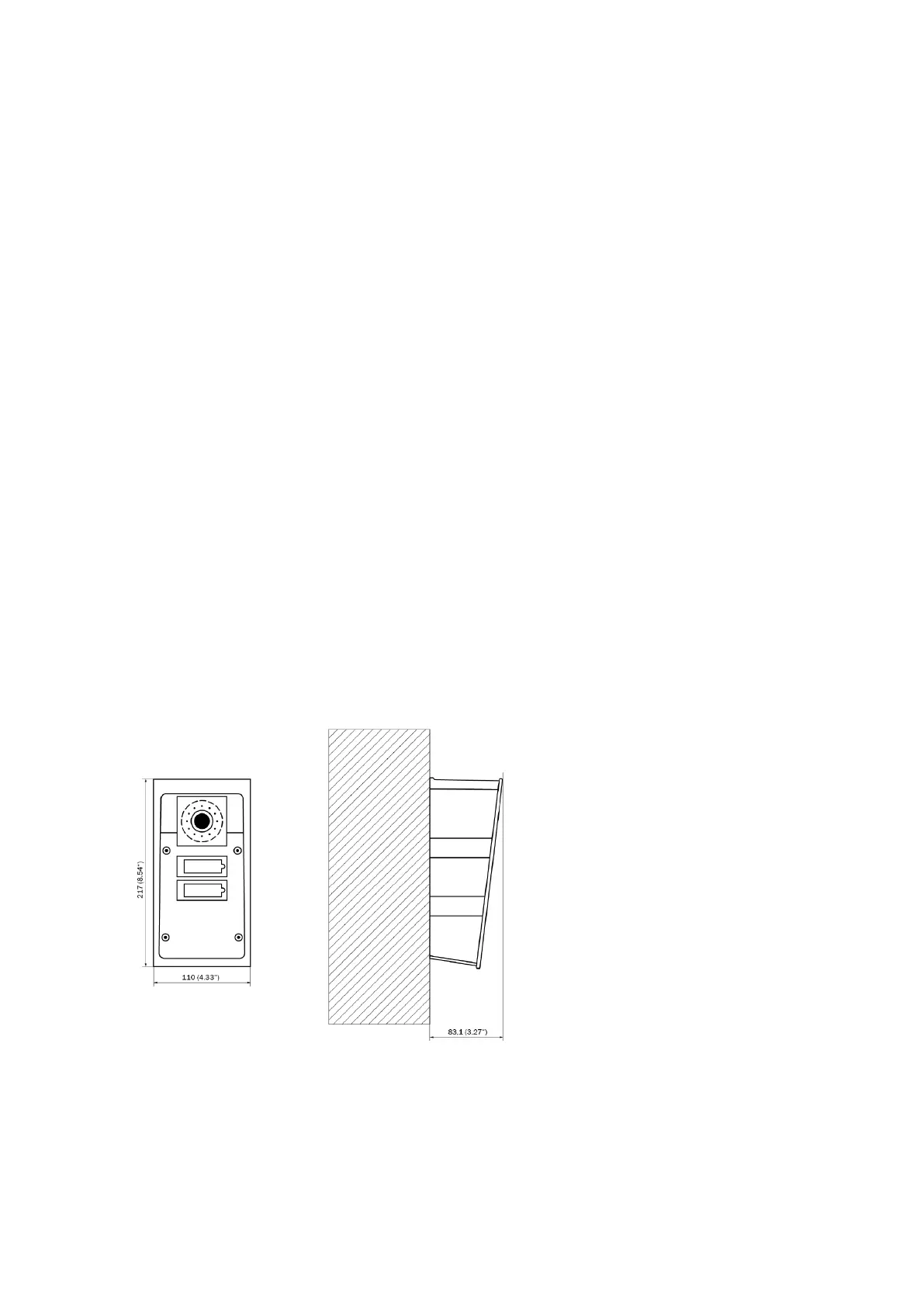

Surface mounting

