Predator Installation Manual Ver 2.9 Page 11
© 360 Vision Technology Ltd.

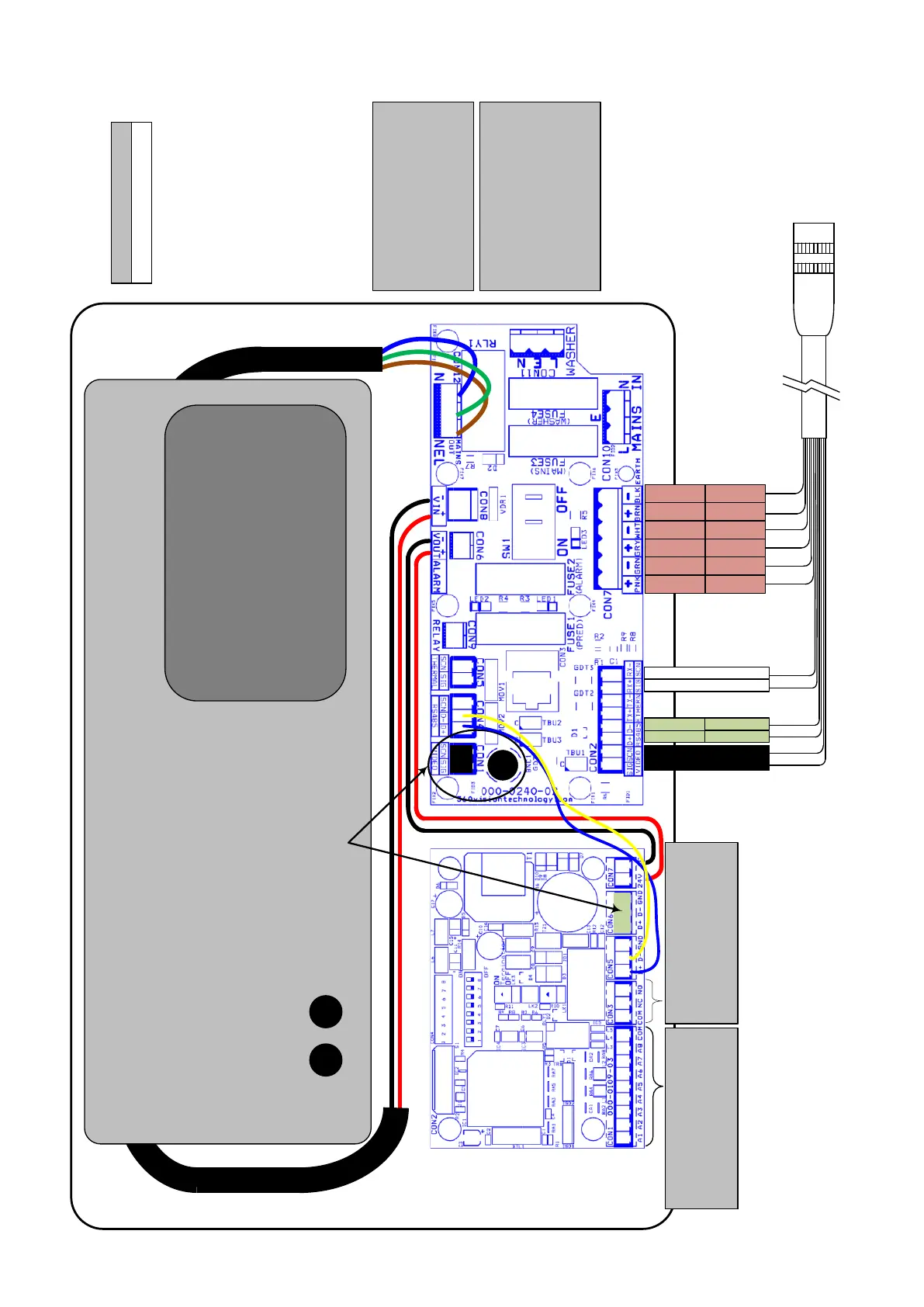

MAINS FUSE
PRED-XALARM-PSU-SM-A
MAINS FUSE 3 = 2AF
OUTPUT FUSE
PRED-XALARM-PSU-SM-A
FUSE 1 = 6.3AT
FUSE 2 = 1AT
FUSE 4 = N/A
MAINS input
100 - 240Vac
Io Vo
Adj Adj
Model Number: PRED-XALARM-PSU-SM-A Serial Number: yymmndd-xxxx Input Voltage:100-240VAC 50/60Hz Input current 2.1A Output Voltage: 30V DC Output Current: 6.2A
ALARM INPUTS
CON1
(e.g. Connect A1 to COM
to activate Alarm 1)
ALARM RELAY OUTPUT
CON3 (Volts Free)
0.5A 125Vac max.
1A 24Vdc max
PRED-XALARM-PSU-SM-A
Use pre-made cable PRED-3M,
PRED-10m, PRED-25m or
PRED-40m to connect to
Predator.
NOTE - All wires in
composite cable must
be connected.
255 x 180 x 100mm
Enclosure Dimensions
24Vac(+)PINK
24Vac(-)GREEN
24Vac(+)GREY
24Vac(-)WHITE
24Vac(+)BROWN
24Vac(-)BLACK
Coax Core
Coax Screen
RED
ORANGE
RS485 D+
RS485 D-
Coax Core (TC)
Coax Screen (TC)
To Analogue
Controller
