Solid Wall or Ceiling Installation

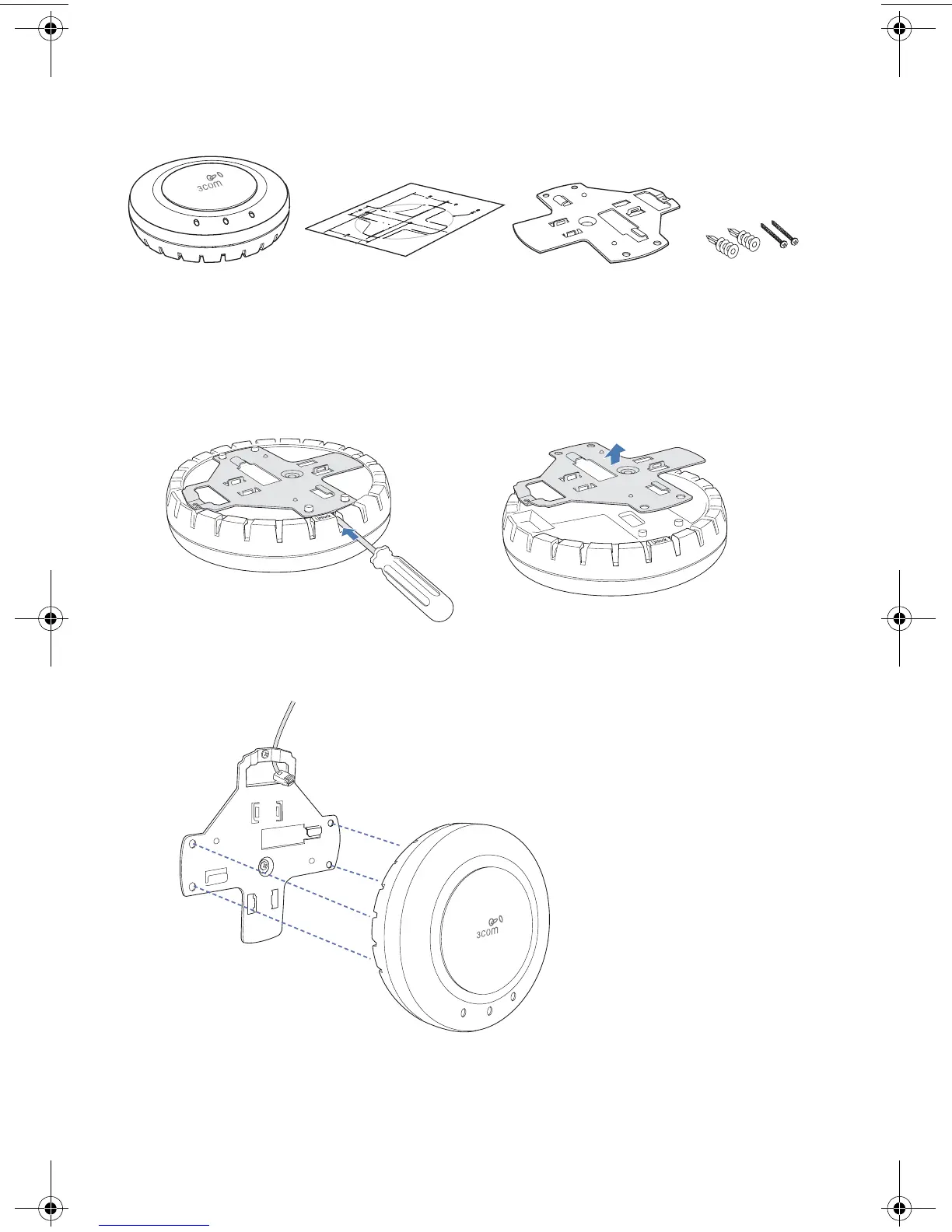

1 Use the mounting template to cut a hole for the Category 5 cable.
2 Remove the mounting bracket from the access point.
3 Attach the bracket to the wall or ceiling.
4 If you are using an external antenna, insert the antenna cable into the antenna
connector on the access point.
Mounting
hardware
Mounting
template
Mounting
bracket
Mobility
point
TM
AP3750 access point Mounting
template
Mounting
bracket
Mounting
hardware
840-9502-0011
840-9502-0008
840-9502-0015
