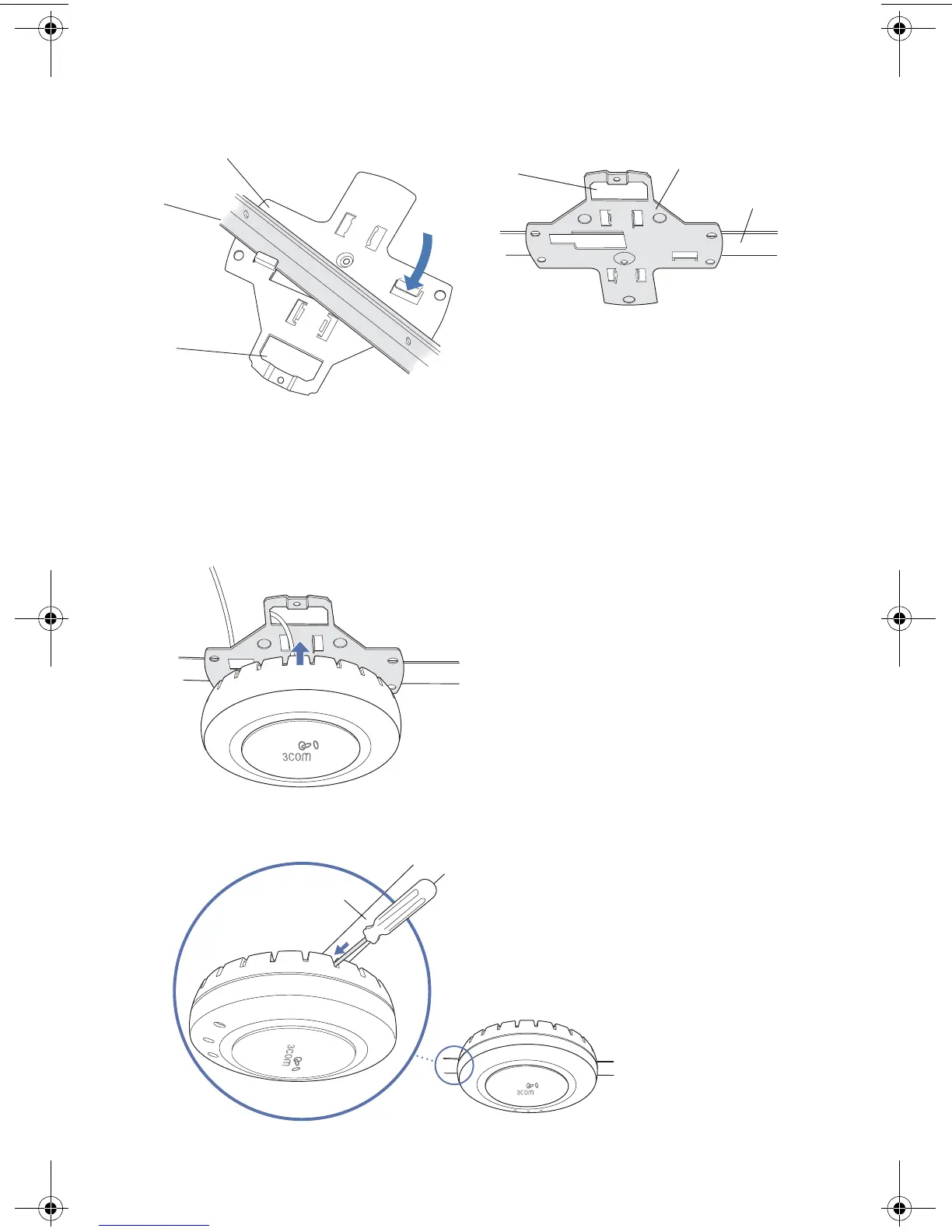

3 Attach the mounting bracket to the T-bar clamp.
4 If you are using an external antenna, insert the antenna cable into the antenna
connector on the access point.
5 Insert the Category 5 cable through the port connector opening in the mounting
bracket, then plug the cable into the access point.
6 Attach the access point to the mounting bracket
T- b a r
(Viewed from above ceiling tiles, looking down.)
840-9502-0005
Universal mounting
bracket
Port connector
opening
T- b a r
Universal mounting bracketPort connector
opening
840-9502-0002
TM
8
40-9502-0006
Lock
T-bar
TM
TM
