9

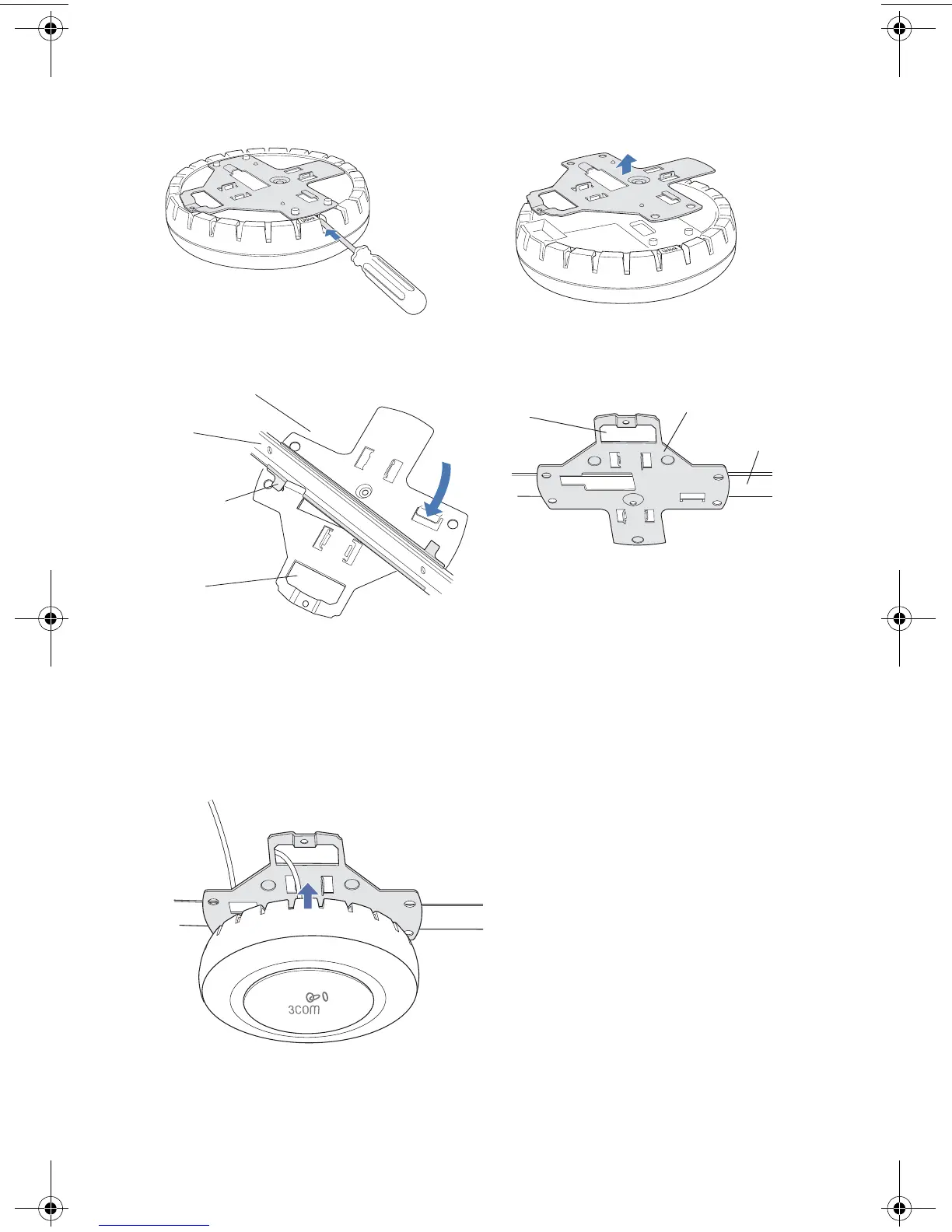

3 Remove the mounting bracket from the access point.
4 Attach the mounting bracket to the T-bar clamp.
5 If you are using an external antenna, insert the antenna cable into the antenna
connector on the access point.
6 Insert the Category 5 cable through the port connector opening in the mounting
bracket, then plug the cable into the access point.
840-9502-0011
840-9502-0008
T- bar
T-bar clamps
(attached
to T-bar)
Universal mounting
bracket
840-9502-0012
(Viewed from above ceiling tiles, looking down.)
Port connector
opening
T-bar
Universal mounting bracke
t
Port connector
opening
840-9502-0002
TM
