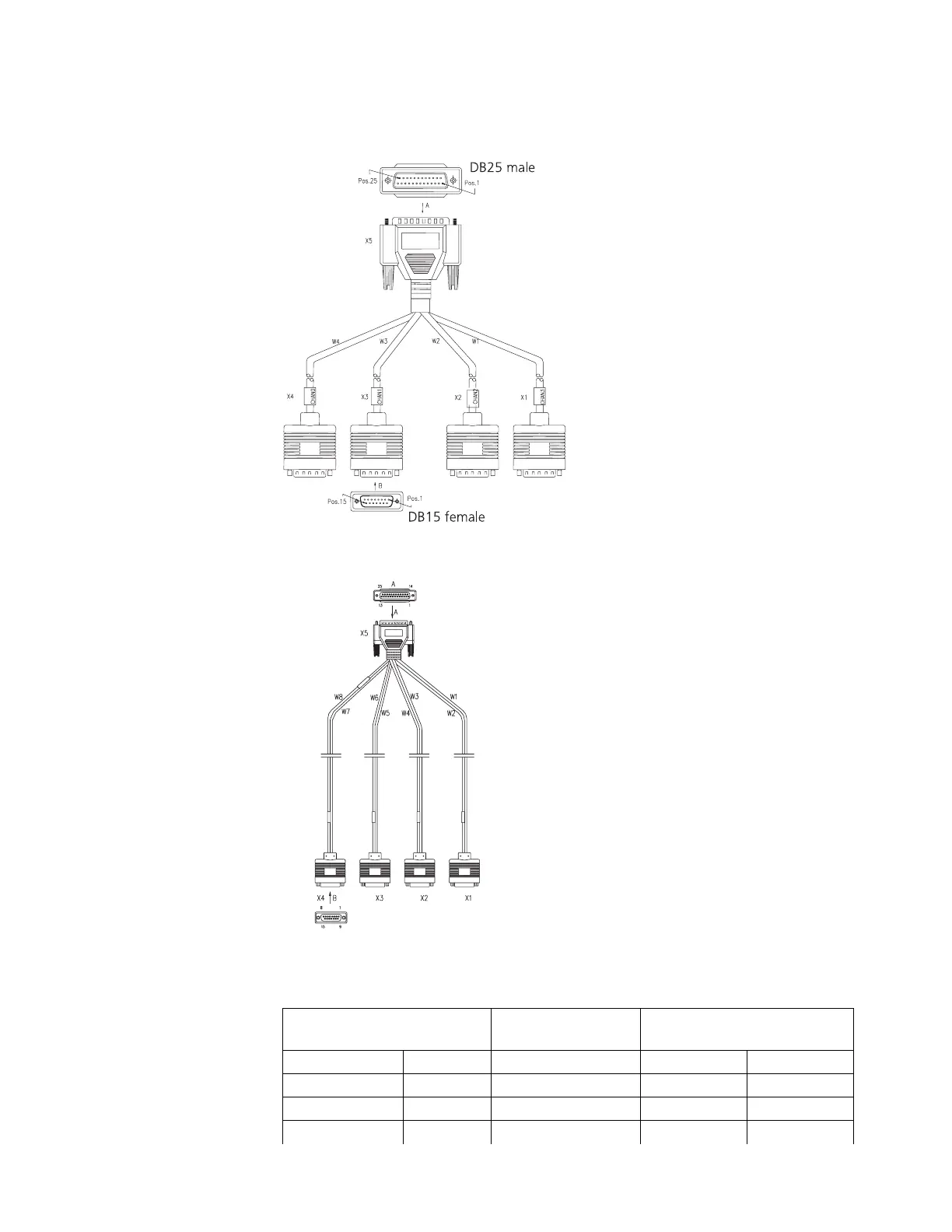

Figure 15 120-ohm 4E1 Conversion Cable

Figure 16 75-Ohm 4E1 Conversion Cable

Tabl e 20 lists E1 cable pinouts.

Tabl e 20 E1 Cable Pinouts

DB15

BNC (75-ohm coaxial

cable)

RJ-45 (120-ohm twisted pair)

9 Tx Tip Tx Tip 1 Tx Tip

2 Tx Ring Tx Ring 2 Tx Ring

10 Tx Shield - 3 Tx Shield

8 Rx Tip Rx Tip 4 Rx Tip
