30
C
HAPTER
3: B
OOTING
AND
C
ONFIGURI
NG
THE
R
OUTER

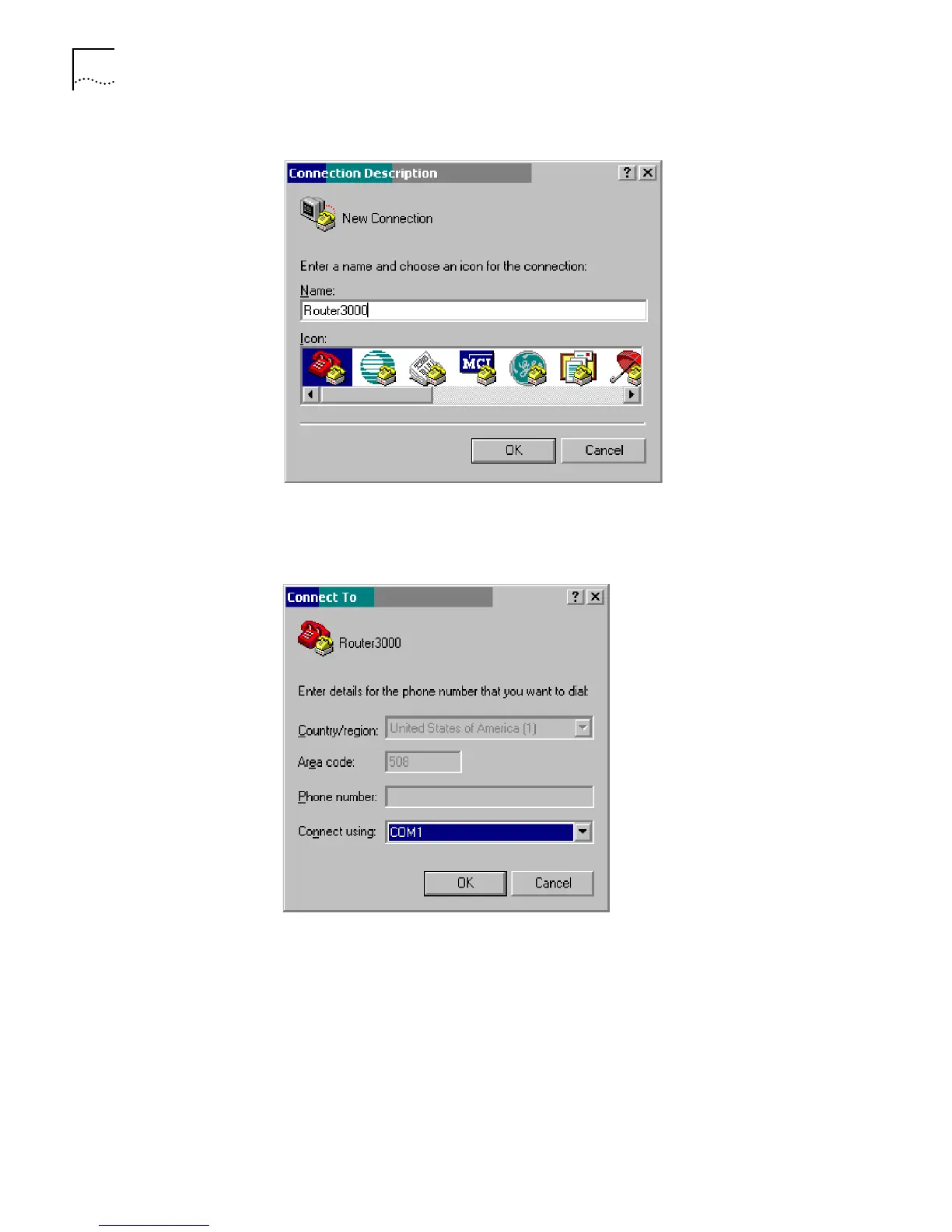

Figure
14
Connection Description Dialog Box
2
Enter the name of the new connection in the
Name
field and click
OK.
The
Connect T
o
dialog box, shown in
Figure
15
displays.
Figure
15
Connect T
o Dialog Box
3
Select the serial port fo
r th
e connection from the
Connect using
dropdown menu
and click OK. The Connection Pr
operties dialog box, shown in
Figur
e
16
displays.
29
