Setting the Parameters of the Console Terminal 31

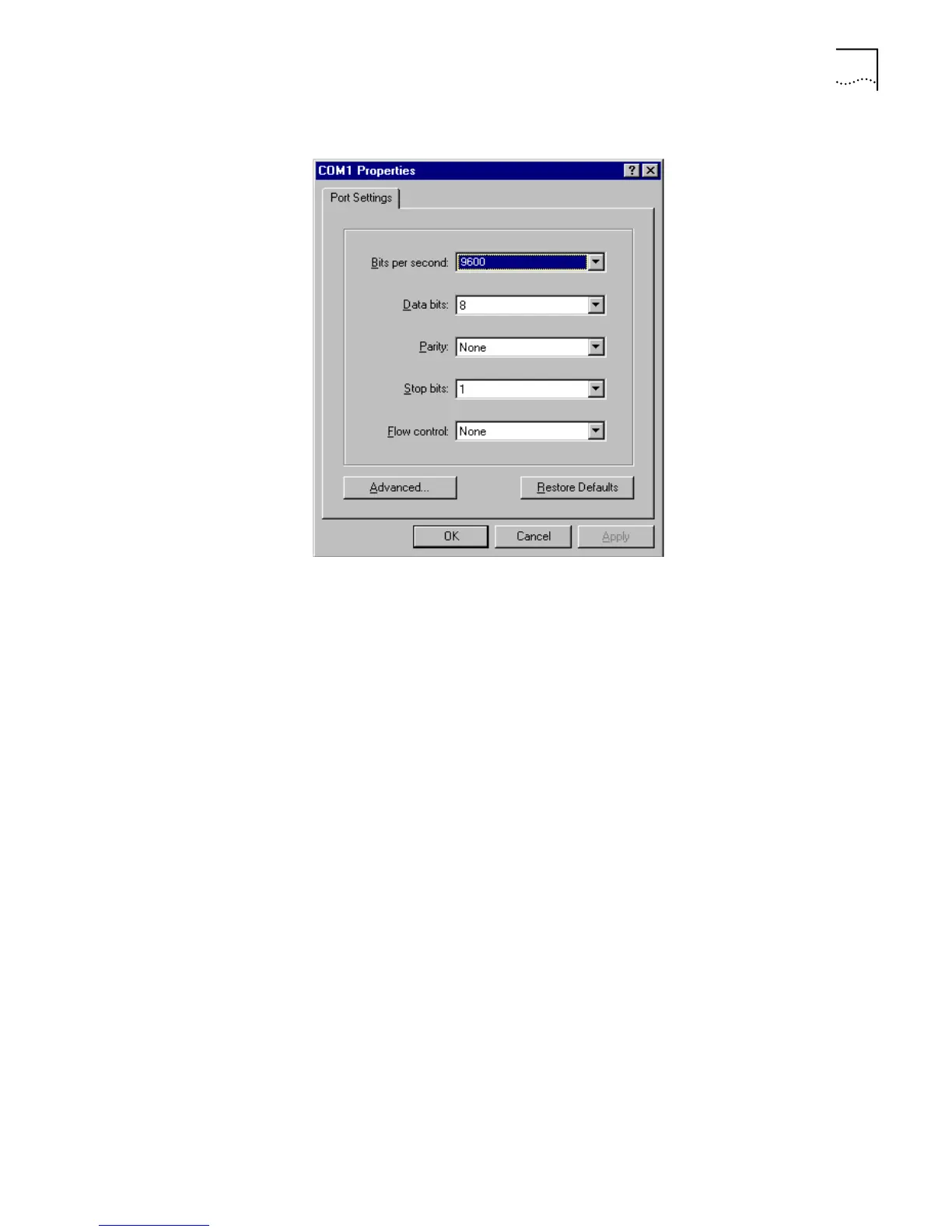

Figure 16 Connection Properties Dialog Box
4 Set the following parameters:
Bits per second — 9600
Data bits — 8
Parity — None
Stop bits — 1
Flow control — None.
5 Click OK. The HyperTerminal dialog box displays, as shown in Figure 17.
