Network Configuration Examples 19
Switch 3300 XM as a
Desktop Switch
The example in Figure 5 shows how a Switch 3300 XM can be used for a
group of users that require dedicated 10Mbps or 100Mbps connections
to the desktop. The stack comprises a Switch 3300 XM and a Switch
3300 fitted with a SuperStack II Switch 1000BASE-SX module. The Switch
1000BASE-SX module provides a Gigabit Ethernet link to a SuperStack II
Switch 9000 SX in the basement.

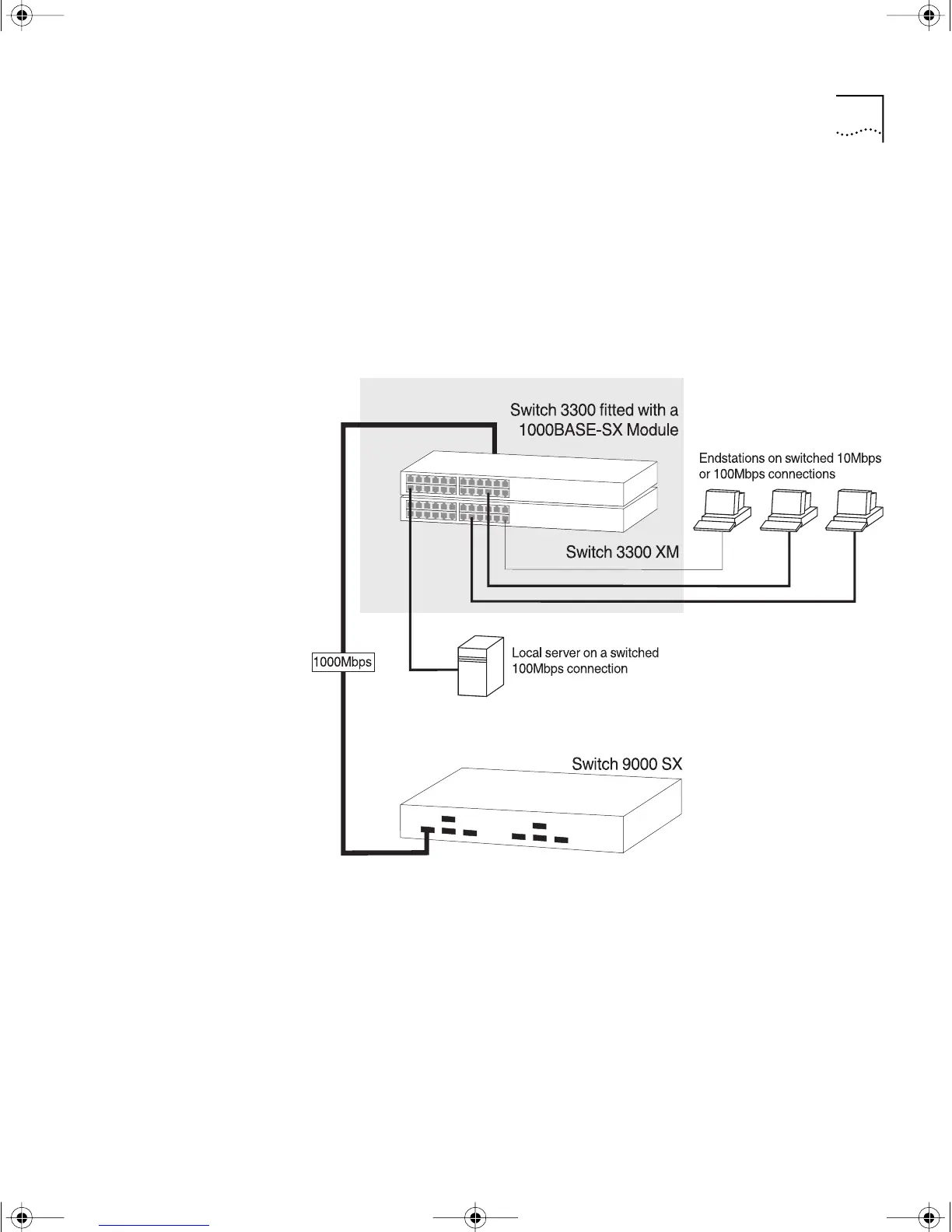

Figure 5
Using the Switch in a desktop environment
16985ua.bk Page 19 Friday, July 23, 1999 2:39 PM
