THERMOSALD ISC – MAINTENANCE & OPERATIONS MANUAL Rev. 2010 / 03

(Includes all previous models)

Manuale cod.: 3ES080x_V5.1_MU_EN Page Nr. 10 Tot. Nr . 47

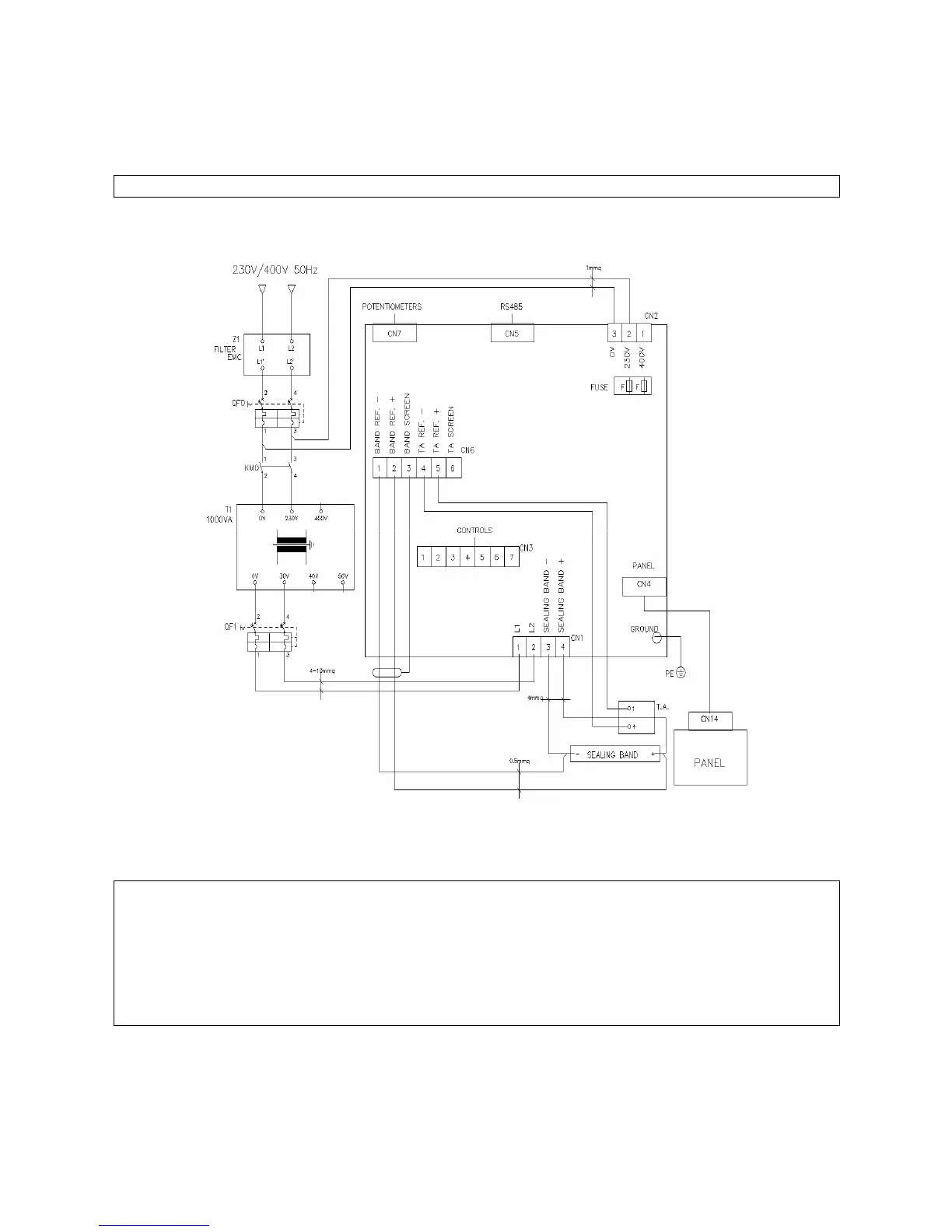

2.2 ELECTRIC DRAW – POWER CONNECTIONS (CONTROL OF THE SECONDARY)

NOTE -

Power supply ( CN1/1 e CN1/2 ) must be with the same phase as

control supply ( CN2/3 e CN2/2 ).

Ground screw must be connected to the ground of machine, with the cable jellow green section

> = power cable section.

Twist power cable, twist TA cable

Twist and screen sealing reference cable
