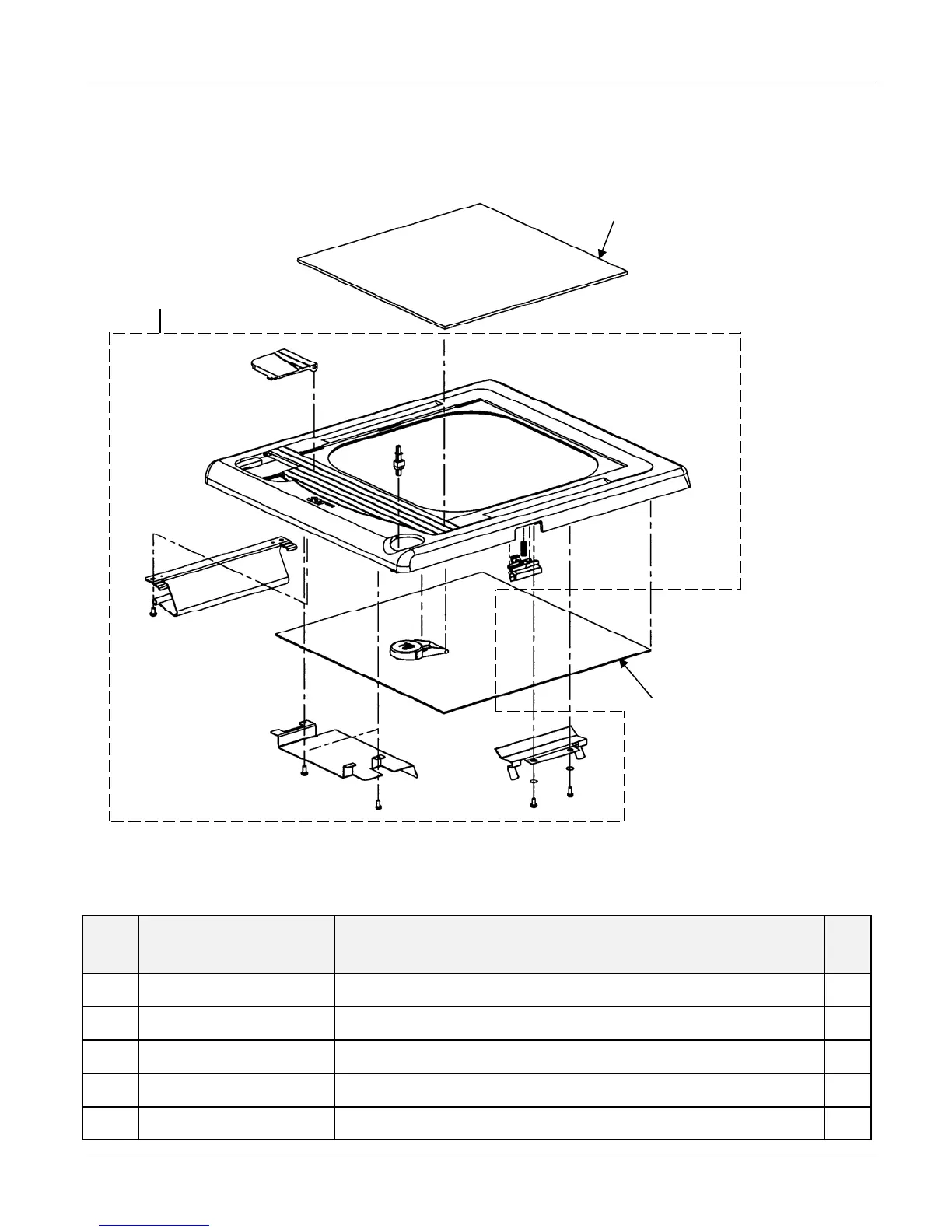

Section 7. Top Cover Assembly
(Serial Number 170000989 and above)
Top Cover Assembly Parts List
(Serial Number 170000989 and above)
Item
No.
3M
Part Number
Description Qty.
1A 78-8120-8572-4 Top Cover Assembly (Basic - Gray color) 1
1B 78-8120-8573-2 Top Cover Assembly (Lamp Changer - Gray color) 1
2 78-8120-4156-0 Stage Glass 1
3 XO-0038-0820-1 Fresnel Lens, Dual-Element 1
4 78-8064-1515-0 Actuator Switch 1
2
3
NOTE:
Screws, nuts, bolts,
clips, and other small
hardware are
contained in the
Hardware Kit:
78-8114-9023-0
(See Section 15).
1
