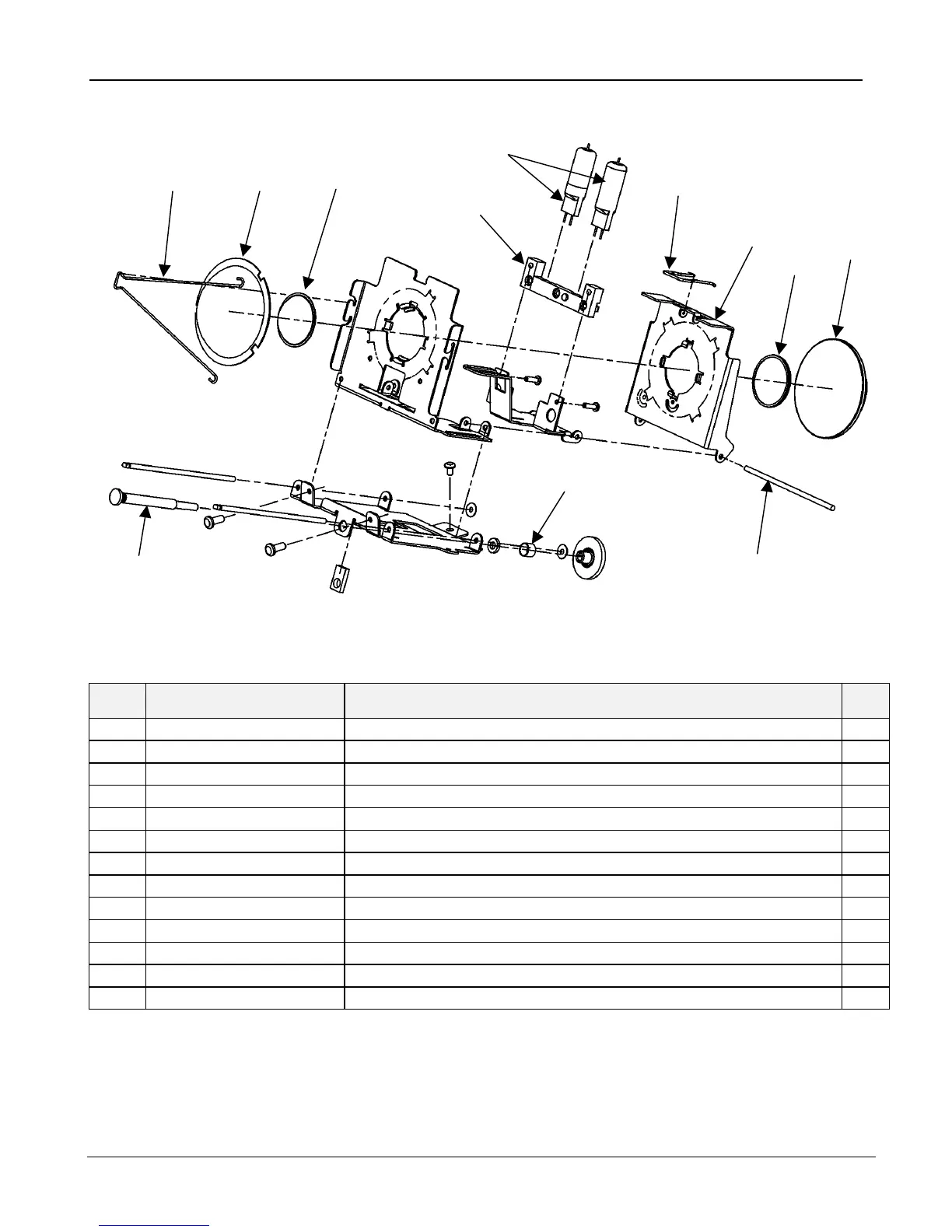

Section 13. Lamp Housing (Dual FNT)
Lamp Housing (Dual FNT) Parts List
Item 3M Part Number Description Qty.
1 78-8079-8896-5 Spring, Reflector Retainer 1
2 78-8079-9202-5 Reflector. 60mm, FNT 1
3 78-8079-8829-6 Reflector, FNT 1
4 78-8120-3193-4 Socket, Lamp, Dual FNT 1
5 78-8054-1175-4 Lamp, FNT 2
6 78-8079-9053-2 Spring, Catch 1
7A 78-8079-8834-6 Bracket, Small Condenser 1
7B 78-8079-8836-1 Bracket, Large Condenser 1
8 78-8012-7827-2 Condenser, FNT 1
9 78-8079-9025-0 Condenser, Dual 1
10 - - - Rod, Center, EVD/FNT 1
11 26-1009-7186-5 Clip, Speed, Knob to Shaft 1
12 78-8079-8928-6 Shaft, Color Tune, EVD/FNT 1
1
4
3
2
5
6
7
8
9
10
12
11
