3M 1800 - Lamp Assembly

3M™ Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2004 25

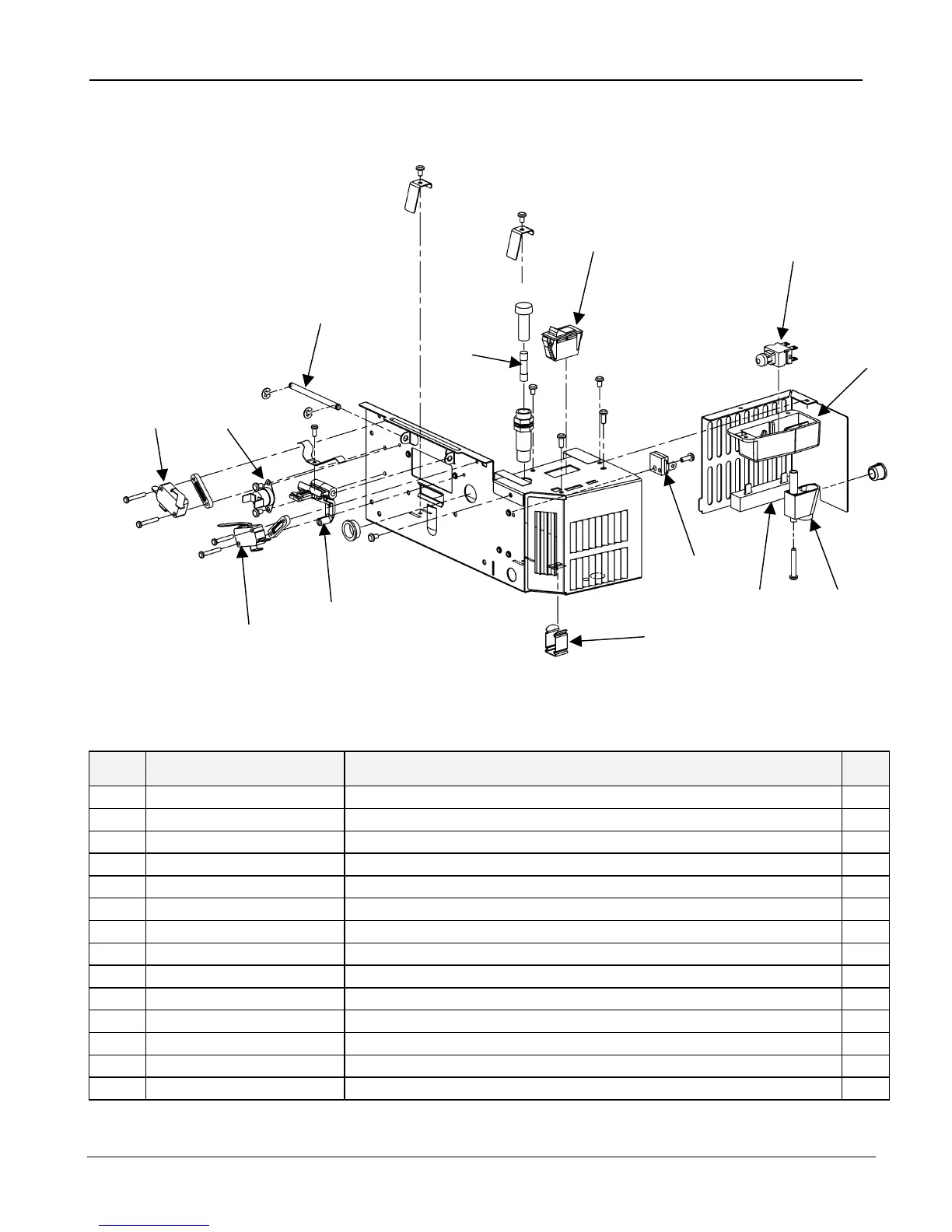

Section 15. Lamp Assembly
Lamp Assembly Parts List
Item 3M Part Number Description Qty.
1A 26-1008-6347-6 Fuse, 4A 1
1B 26-1005-9599-5 Fuse, 5A 1
2 78-8073-7212-9 Switch, Hi/Lo 1
3 78-8120-3134-8 Switch, On/Off 1
4 78-8120-3134-8 Housing, On/Off Switch 1
5 DY-1160-2020-6 Strain Relief 1
6 78-8073-7127-9 Resistor, 1.2 Ohm 1
7 - - - Diode [Must order Diode Kit, P/N 78-8062-1180-7] 1
8 78-8033-1666-6 Clip, Resistor 1
9 78-8120-3097-7 Actuator, Lamp Changer 1
10 78-8120-3079-5 Switch, Lamp Changer, Right Holder 1
11 78-8120-3080-3 Switch, Lamp Changer, Left Holder 1
12 78-8079-8933-6 Thermostat, Safety (190º F) 1
13 78-8120-3147-0 Shaft, Pivot Actuator 1
1
2
4
3
5
11
9
7
8
10
13
12
6
Note: Screws, nuts, bolts, clips, and
other small hardware are also contained
in the Hardware Kit: P/N 78-8120-8523-7
(Refer to Figure 22).
