3M Touch Systems, Inc. Proprietary Information 2

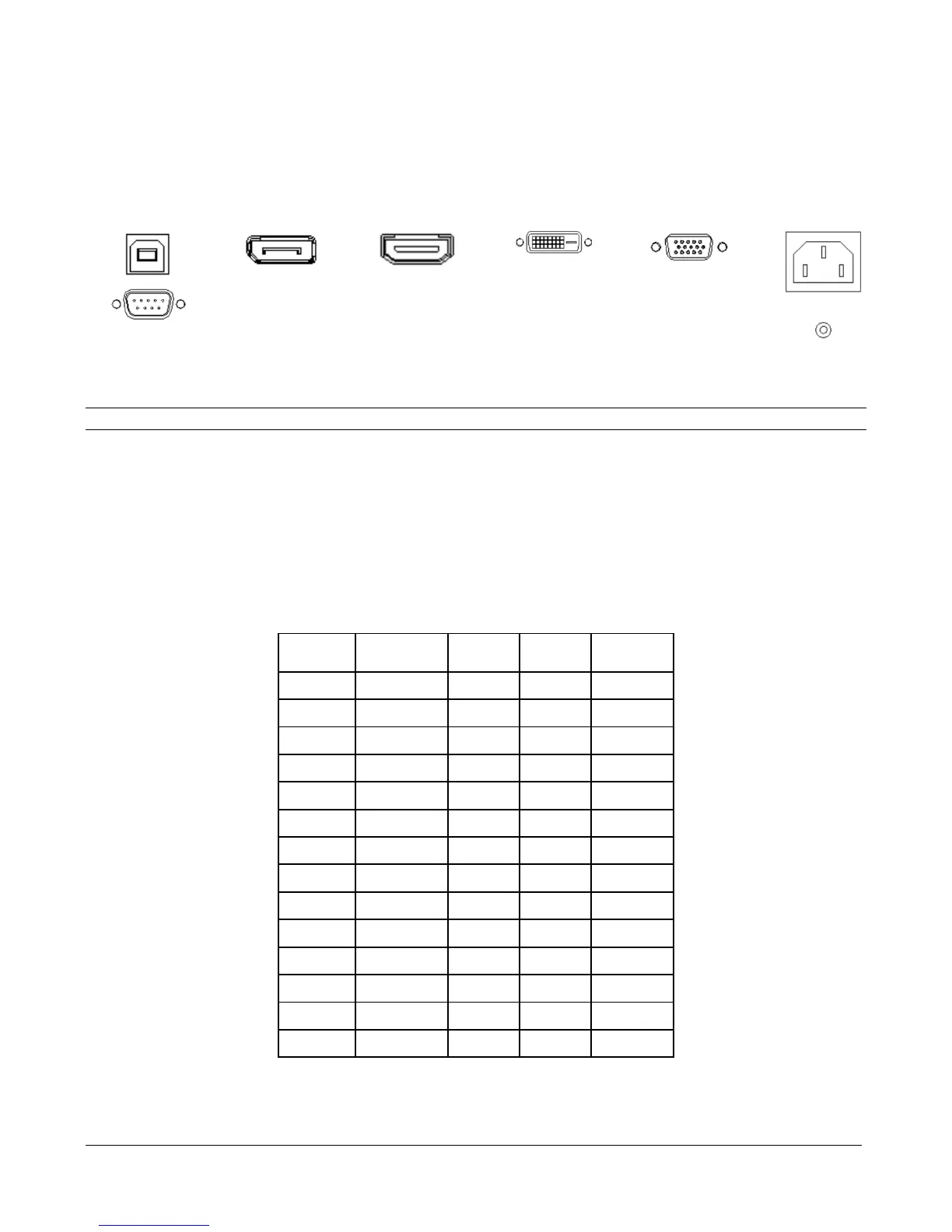

Connecting the 3M™ Touch Display
1. Turn off power switch on your computer. You should always turn off the computer before connecting or disconnecting a device.
2. Connect (A) USB or Serial cable to the available port on your computer and plug the other end into the back of display.
3. Connect either the (B) Displayport or (C) HDMI or (D) DVI or (E) VGA cable to the video connector on the display. Connect the other end to the video
card in your computer.
4. Connect the power cord to the (F) power connector on the display. Connect the other end of the power cord to an appropriate grounded power source.
Mounting the 3M Touch Display
Note: Always use the mounting holes when attaching the brackets or arm mount. Do not drill additional holes in the unit.
VESA Mounting Option
Each display has a VESA mounting pattern on the back to allow for arm mount capability.
Note: To avoid the risk of potential damage to display electronics:
• Always use the proper VESA sized mounting holes when using an arm attachment. (See table for correct VESA size.) Do not drill additional holes in
the unit to mount plates at other locations.
• Do not use screws that are longer than specified in the table, they could potentially damage electronics inside the display.
• If you choose to use a VESA mount or UL listed wall mount bracket, ensure adequate weight load capability.
• Follow the manufacturer's instructions included with the mounting device to properly attach your display.
VESA mounting
dimensions (MM)
Screw size &
Max Length
(MM)
