SECTION 1
Page 1
Test Set Operation
1. INTRODUCTION

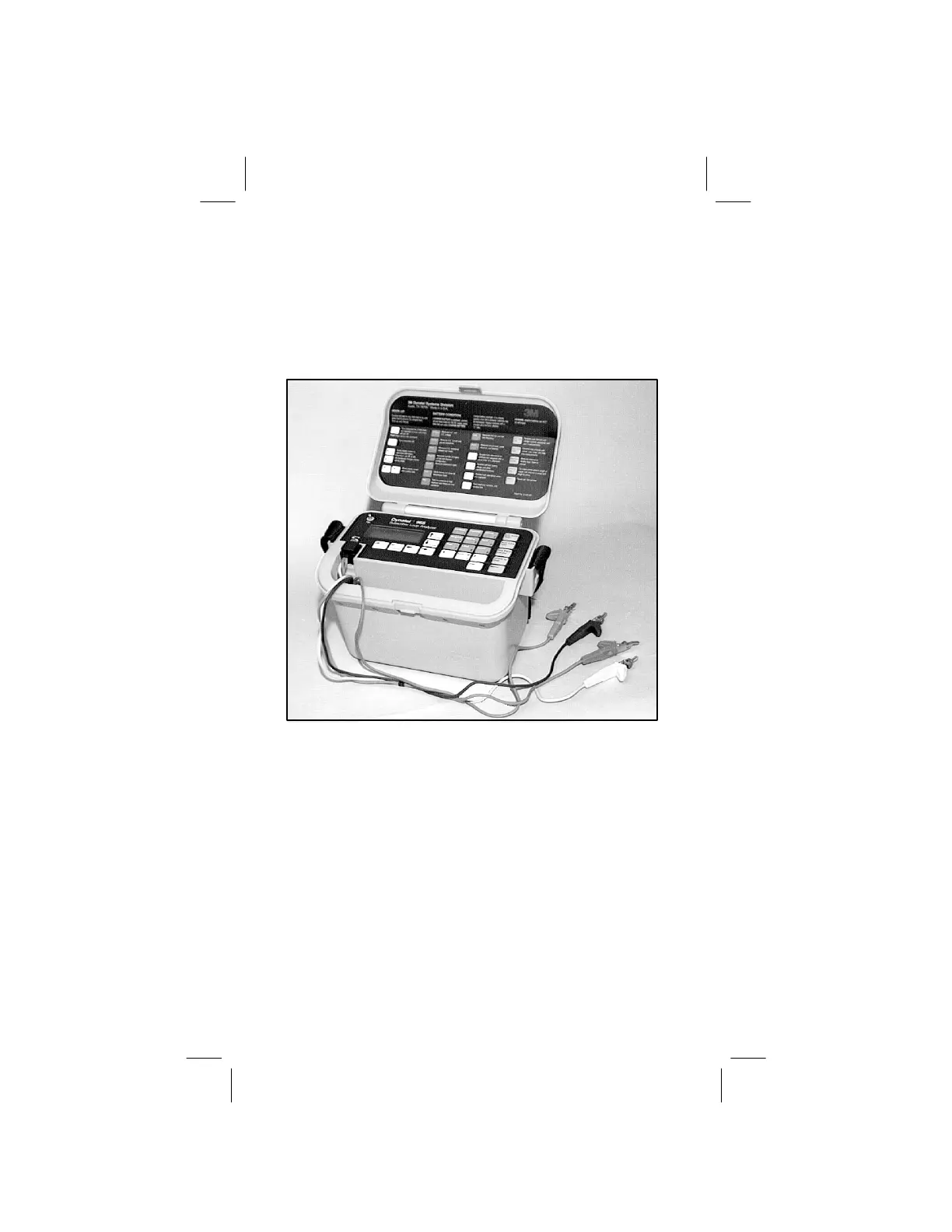

1.1 This manual provides operating instructions for
the Dynatel 900/900M Series test instruments.
The first in the series, the 955 and 955M Combination
Fault Locators performs dead-cable (vacant pair) diagnostic
testing and resistance fault locating as well as opens and
splits test functions and load-coil counting. The 945 and
945M Subscriber Loop Testers combine the 955/955M
functions (except resistance fault locating and splits) with
an active-cable diagnostic routine and its associated tests.
The 965 and 965M Subscriber Loop Analyzers combine all
tests, diagnostic routines, and fault locating capabilities of
the 900/900M Series test sets.
