Operation
Section 1
Page 3
OHMS
AMPERES
D.C.
Leakage path
TIP
RING
Volt/Ohm Meter Display
(Analog Reading)
3 Megohms
SHORT – (High Resistance):

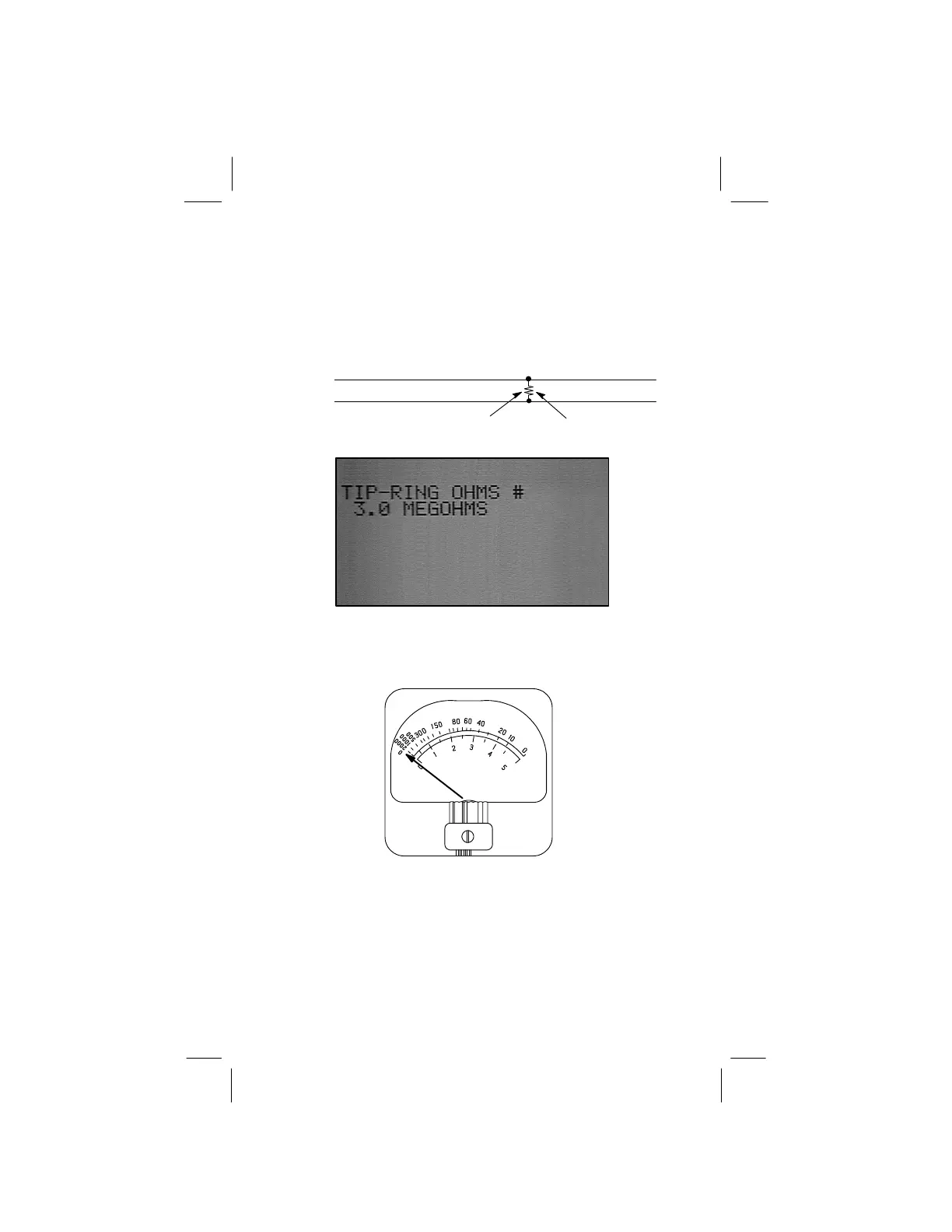

Comparative Displays
of Digital and Analog Readings of a Faulted Pair
900/900M Series Test Set Display
(Digital Reading)
1.5 Other analog meters have converted ohms into
points. The chart on the next page shows
comparative values for ohms and points.
To Next Page
