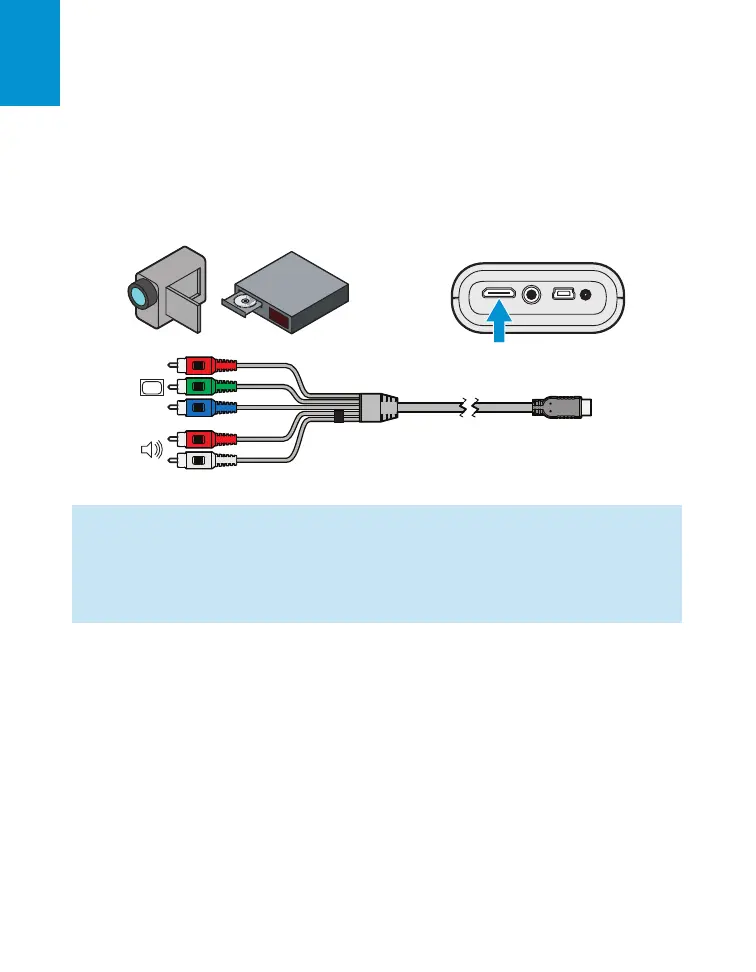

Connecting to a Component Video Device
For component video input, you must purchase the optional 3M MPro150 Component AV
Cable. This cable sends a higher quality video signal for the best possible image.
1 Connect the component AV cable to the projector’s VGA-AV input.
2 Connect the other end of the AV cable to the video device’s audio and video outputs.
Important Note: There are two red connectors on the Component AV cable. One is for
the right audio channel and the other is for the Pr component video signal. Be careful to
connect the red audio to red audio and red video to red video. If these connectors are
switched, the projected image will appear green and an abnormal noise will come from
the right speaker.
