11
11. Install the boom microphone with the earcup arm guide on helmet attachment as shown in
F:21 and F:22. Make sure you align the boom microphone earcup arm guide with the wire
as shown in F:21 to make sure it fits with relative ease.
12. Install the helmet attachment with the boom microphone on the left ear cup (the ear cup with
the boom microphone connector jack). First rotate the left cup to attach the earcup arm guide
as shown in F:23 and F:24. Force will be required.
13. Rotate the boom microphone earcup arm guide in position and install the boom microphone
FRQQHFWRUWRWKHHDUFXSFRQQHFWRUMDFNRQWKHOHIWHDUFXSDVVKRZQLQ)DQG)
14. Repeat F:23 and F:24 for the other guide, and fully attach the left cup. At this stage the
earcups should look like F:27.
$WWDFKWKHRWKHUKHOPHWDWWDFKPHQWWRWKHULJKWHDUFXSDVVKRZQLQ)DQG)
Force will be required.
NOTE: Push or pull the earcup arm guide on the earcup as shown in F:23 or F:28.
Choose the method that suits you the best.
16. Repeat F:28 and F:29 for the other guide, and fully attach the right earcup. Upon successful
installment the earcups should look like F:30.

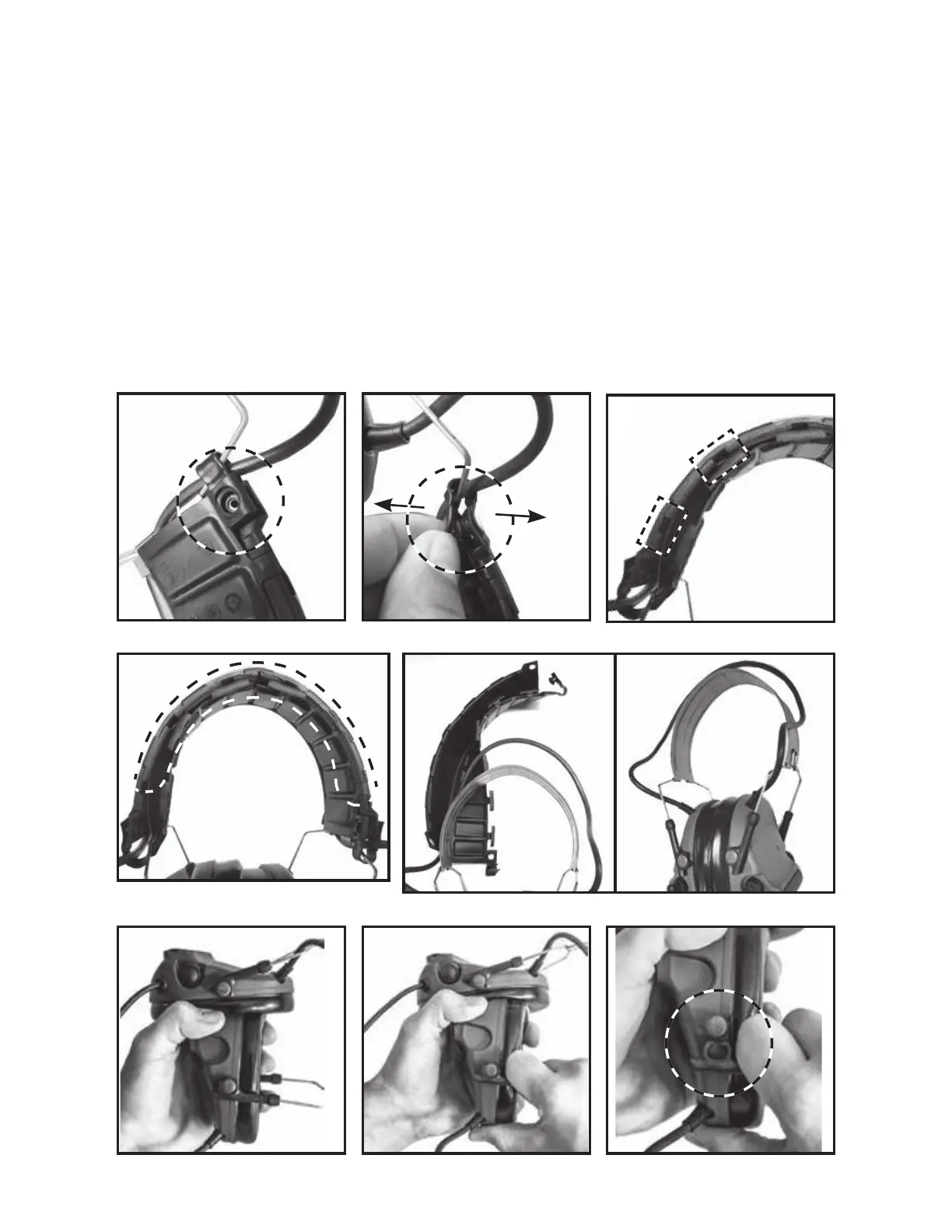

F:1 F:2
F:4
F:3
F:5 F:6
F:7 F:8
F:9
