Helmet Attachment

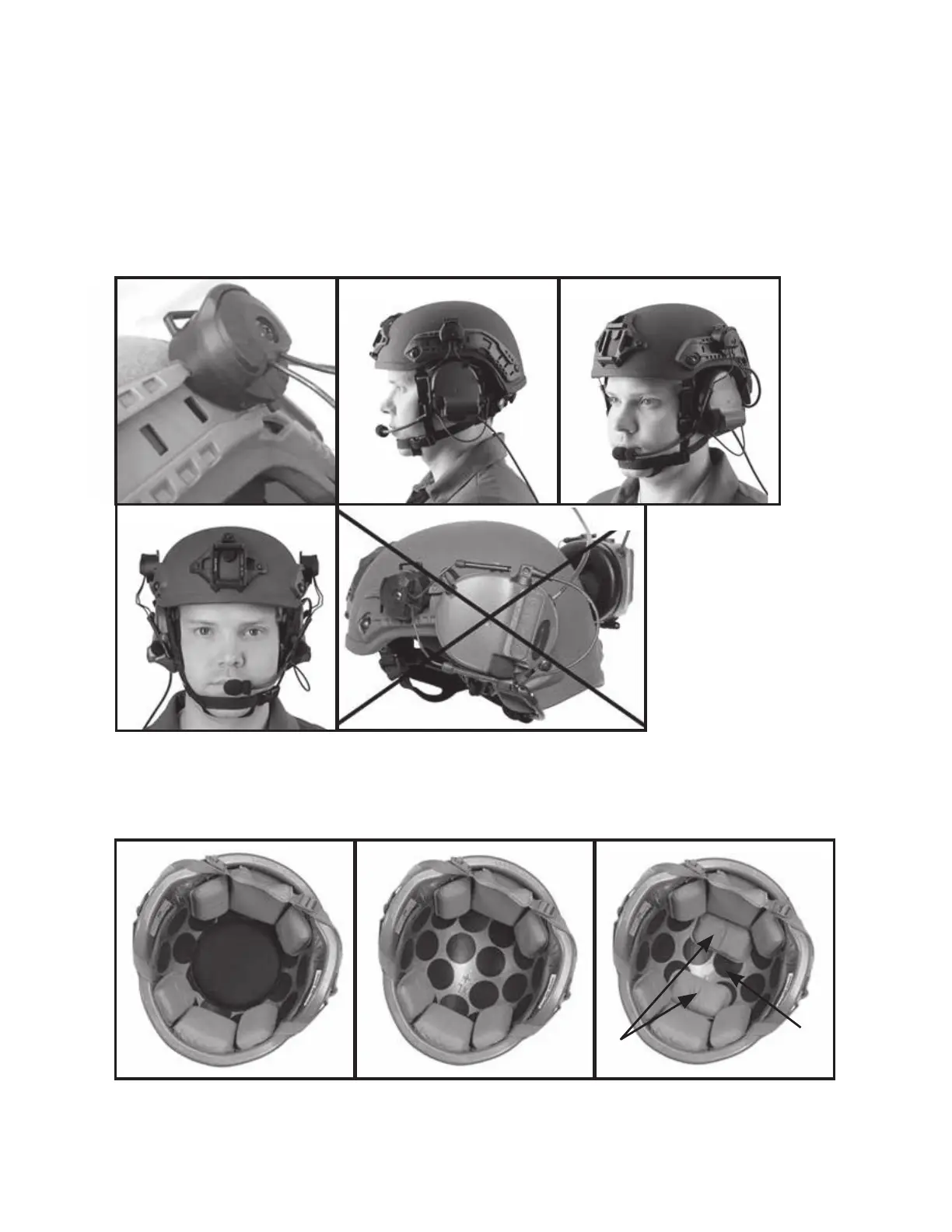

1. Insert the lower lip of the ARC Connector attachment in the rail entry slot of the ARC Rail and
slide forward to lock into place. Ensure the “square loop” is up. (D:9)
2. ARC Connector should be positioned directly above the ear to ensure correct positioning of
headset earcup. (D:10, D:11, D:12)
Tactical Mode: Press the earcups toward the ear until you hear a click. Ensure the ear fits
within the cushion.
Ventilation Mode: Pull outwards on the ear cups until they click into place, allowing a space
between the cushion and the ear. In ventilation mode, avoid placing the cups against the
helmet as this can “flex” the earcup adjustment arm. (D:13)
Adjust Helmet Padding for Proper Fit when using Headband
5HPRYHGRPHSDGIURPWRSRIKHOPHW'DQG'
2. Replace dome pad with two oblong pads (D:16) creating a channel for the headband (D:17).
D:12
D:13
D:9 D:10 D:11
D:17
D:14 D:15
D:16
